Grizl CF SL 7
-
Weight:
9.9 kg
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
-
- Colour: Earl Grey
- Colour: Curry Powder
-
Members only product. Log in here
Highlights Grizl CF SL 7

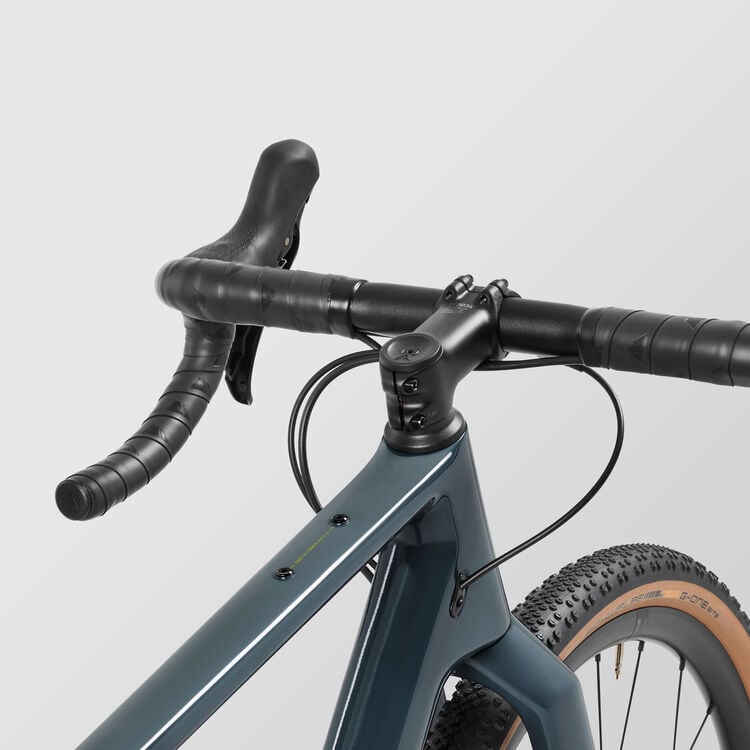

Functional handlebar

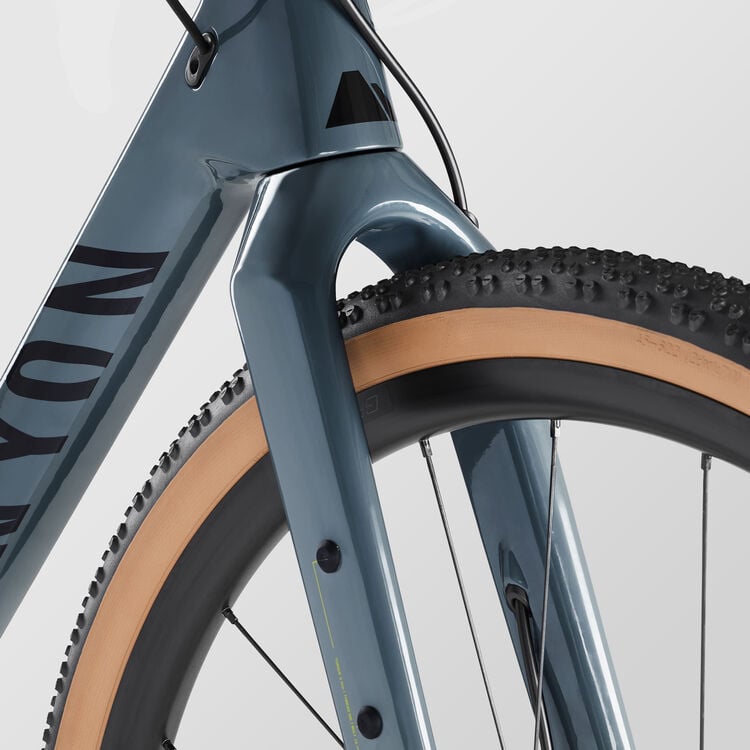

50 mm tyre clearance

Top tube mount

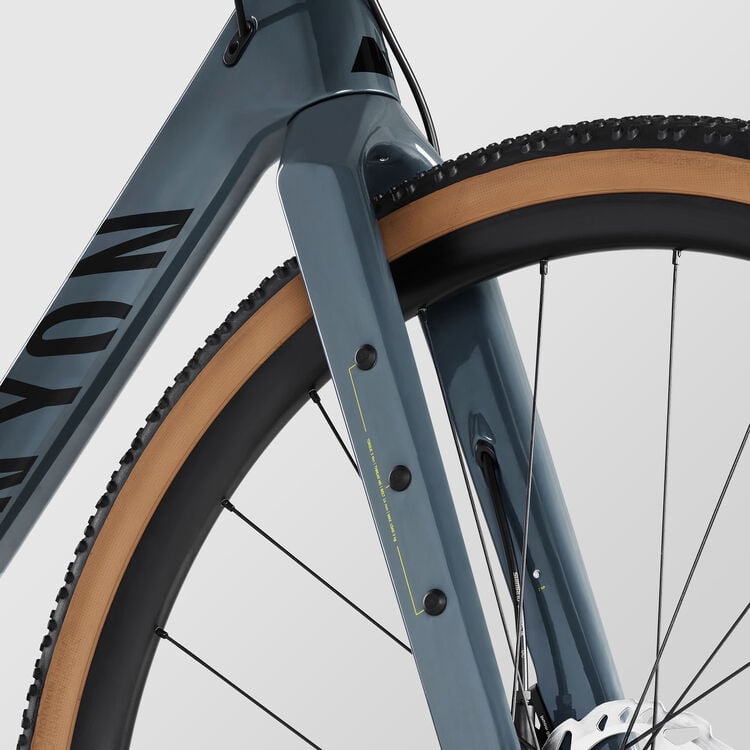

Fork mounts
Frame
-
Frame
- Canyon Grizl CF SL
- Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability.
- Axle dimension: 12x142 mm
- Tyre clearance: 50 mm
- Material: Carbon (CF)
- Weight: 1,030 g
-
Fork
- Canyon FK0087 CF Disc
- Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 54 mm
- Material: Carbon (CF)
- Weight: 520 g
Drivetrain
-
Rear Derailleur
- Shimano GRX RX810 GS
- Cage length: long
- Weight: 252 g
-
Front Derailleur
- Shimano GRX RX810
- Max chainring gear range: 17T.
- Weight: 101 g
-
Cassette
- Shimano HG700 11-34 11s
- Number of sprockets: 11
-
Crank
- Shimano RX600
- Number of chainrings: 2
-
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard: PF 86,5
- Weight: 85 g
-
Chain
- Shimano CN-HG601 11s
- Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Brakes
-
Shift-/ Brake Lever
- Shimano GRX RX600
- Weight: 541 g
-
Shift-/ Brake Lever
- Shimano GRX RX600 11s
- Weight: 541 g
-
Brake Rotor
- Shimano SM-RT70
- Size: 160 mm
- Weight: 147 g
Wheels
-
Front Wheel
- DT Swiss Gravel LN
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 25 mm
- Inner width: 24 mm
- Rim material: Aluminium
- Weight: 946 g
-
Rear Wheel
- DT Swiss Gravel LN
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 25 mm
- Free hub: Shimano
- Inner width: 24 mm
- Rim material: Aluminium
- Weight: 1,145 g
-
Tyre
- Schwalbe G-One Bite 45mm
- Width: 45 mm
- Weight: 540 g
-
Thru Axle
- Canyon GP0197-01
- Axle dimension: 12x100 mm
-
Thru Axle
- Canyon GP0235-01
- Axle dimension: 12x142 mm
Cockpit
-
Stem
- Canyon ST0035
- A lightweight and durable aluminium stem for use on gravel and road bikes.
- Fork steer tube diameter: 1 1/4"
- Clamping diameter: 31,8 mm
-
Handlebar
- Canyon HB0063
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter: 31,8 mm
- Width: 440 mm
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Selle Italia Model X
- Width: 145 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 310 g
-
Seatpost
- Canyon SP0057 VCLS
- With vibration-absorbing design for top rear-end comfort.
- Setback: 20 mm
- Seatpost diameter: 27,2 mm
- Material: Carbon (CF)
- Weight: 265 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 189 | 189 - 194 | ≥ 194 |
---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
522 | 531 | 552 | 564 | 578 | 602 | 617 |
Head Tube Length in mm
(d)
|
121 | 133 | 118 | 138 | 164 | 185 | 204 |
Head Tube Angle
(e)
|
70° | 71° | 71° | 72,25° | 72,5° | 72,75° | 72,75° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
420 | 420 | 435 | 435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.007 | 1.007 | 1.036 | 1.037 | 1.050 | 1.072 | 1.086 |
Stack in mm
(i)
|
522 | 537 | 556 | 579 | 605 | 626 | 644 |
Reach in mm
(j)
|
377 | 382 | 397 | 402 | 409 | 427 | 436 |
Stand-over Height in mm
(k)
|
737 | 761 | 789 | 816 | 845 | 870 | 892 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 75 | 75 | 75 | 75 | 75 |
Stack+ in mm
|
608 | 624 | 642 | 666 | 693 | 714 | 733 |
Reach+ in mm
|
413 | 429 | 444 | 461 | 478 | 497 | 515 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|
Stem Length in mm
|
60 | 70 | 70 | 80 | 90 | 90 | 100 |
Handlebar Width in mm
|
400 | 400 | 420 | 440 | 440 | 460 | 460 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 175,0 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
46/30 | 46/30 | 46/30 | 46/30 | 46/30 | 46/30 | 46/30 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
