Spectral 27.5 CF 9
3,929 US$
Original price
You save 1,770 US$
Modern top-class trail bikes are light, fast, and versatile. The Spectral CF 9 ticks all these boxes – this bike’s a true all-rounder for all conditions and scenarios.
- Front Fork Travel: 160 mm
-
Weight:
13.6 kg
WeightWeight is based on a size medium frame.
Members only product.
Log in here
Additional information
Current delivery times information.
Read more
Not included:
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Delivery:
Select frame size
Highlights Spectral 27.5 CF 9

Silent protection
Straight from pro racing, right on to your bike – we designed the Spectral’s chainstay guards using feedback from our EWS mechanics. Their special structure dampens chain slap noise for a quiet, slick ride feel.

Guided internal cable routing
We’ve integrated a plastic cable channel inside the frame, making tune-ups and cable swaps fast and painless. Just thread brake and shifter cables into the chainstay, push them through, and they automatically come out the front of the front triangle.
Content is loading
Frame
-
Frame
- Canyon Spectral CF
- Full-carbon frame with optimised stiffness-to-weight ratio. With Flip Chip system for simple geometry adjustment. Category 4.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 1,350 g
-

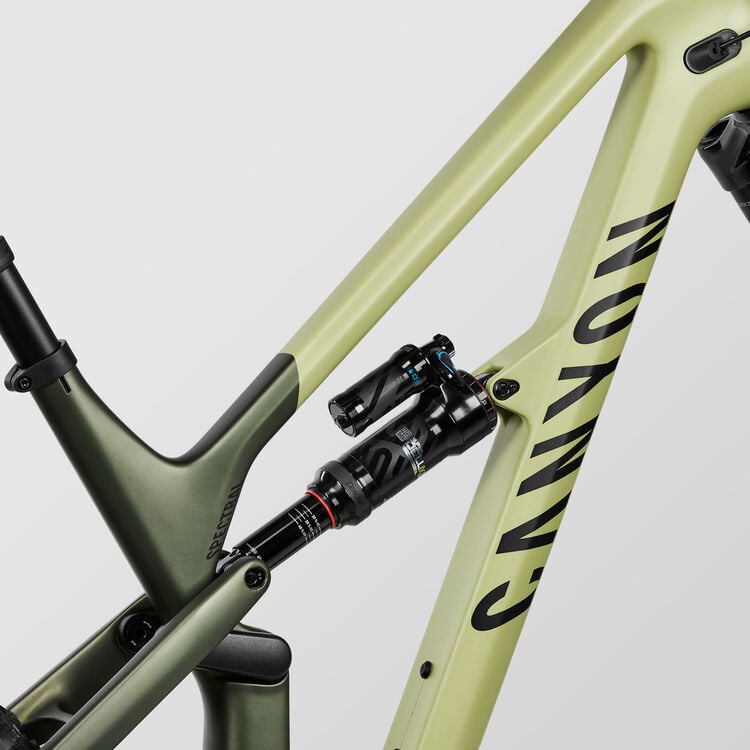

Rear Shock
- RockShox Superdeluxe Ultimate
- Weight: 480 g
-
Suspension Fork
- RockShox Lyrik Ultimate RC2
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 37 mm
- Volume Spacer Oe: 2/5
- Weight: 2,100 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM GX Eagle AXS
- Weight: 340 g
-
Chainguard
- Canyon EP1266-01 ISCG05 Plate
-
Chainguard
- Canyon GP0293-02
-
Shift Lever
- SRAM GX Eagle AXS
- Weight: 68 g
-
Cassette
- SRAM GX Eagle, 12-speed, 10-52T
- Number of sprockets: 12
- Range: 10-52
-
Crank
- SRAM X1 CF Eagle
- Number of chainrings: 1
-
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
-
Chain
- SRAM GX Eagle
- Flowlink inner plate design reduces friction, solid pin construction, PowerLock tool-less master link.
Brakes
-
Disc Brake
- SRAM Code RSC
-
Disc Brake
- SRAM Code RSC
-
Brake Rotor
- SRAM HS2
- Size: 200 mm
- Weight: 216 g
Wheels
-
Front Wheel
- DT SWISS XMC1501
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Rim height: 25 mm
- Inner width: 30 mm
- Weight: 738 g
-
Rear Wheel
- DT SWISS XMC1501
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Rim height: 25 mm
- Inner width: 30 mm
- Weight: 827 g
-
Tyre
- MAXXIS Minion DHR II 2.4''
- Width: 2.4"
- Weight: 900 g
-
Tyre
- Maxxis Minion DHR II Exo+
- Width: 2.4"
- Weight: 1,000 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- Material: Carbon
- Rise: 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- Ergon SM10 Enduro Comp
- Gender: Unisex
- Weight: 300 g
-
Seatpost
- Canyon G5
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 502 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | ≥ 183 |
---|---|---|---|---|
Seat Height in mm
(a)
|
635 - 770 | 635 - 770 | 670 - 805 | 720 - 845 |
Seat Tube Length in mm
(b)
|
395 | 395 | 430 | 460 |
Top Tube Length in mm
(c)
|
553 | 582 | 610 | 637 |
Head Tube Length in mm
(d)
|
105 | 125 | 135 | 145 |
Head Tube Angle
(e)
|
64,5° | 64,5° | 64,5° | 64,5° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
432 | 432 | 432 | 432 |
Wheel Base in mm
(h)
|
1.163 | 1.197 | 1.226 | 1.255 |
Stack in mm
(i)
|
596 | 614 | 623 | 632 |
Reach in mm
(j)
|
410 | 435 | 460 | 485 |
Stand-over Height in mm
(k)
|
746 | 751 | 758 | 761 |
Bottom Bracket Offset in mm
(l)
|
20 | 20 | 20 | 20 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
40 | 40 | 40 | 40 |
Handlebar Width in mm
|
760 | 760 | 780 | 780 |
Cockpit Dimensions in mm
|
40-760 | 40-760 | 40-780 | 40-780 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
32 | 32 | 32 | 32 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
150 | 150 | 150 | 170 |
Seat Post Length in mm
|
417 | 417 | 417 | 457 |
Maximum Seat Post Insertion Depth in mm
|
225 | 225 | 225 | 245 |
Minimum Seat Post Insertion Depth in mm
|
90 | 90 | 90 | 120 |
Wheel Size
|
27.5" | 27.5" | 27.5" | 27.5" |
Disc Size in mm
|
200 / 180 | 200 / 180 | 200 / 200 | 200 / 200 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
Download PDF
Content is loading
Spectral 27.5 CF 9 support
Bike classification
This category also covers the requirements of categories 1-3. In addition it includes use on very harsh, obstacle-scattered terrain with steep gradients and consequently higher speeds. Regular, moderate jumps pose no problem for experienced riders when using these bikes. Extended and regular use in bike parks and tackling “North Shore” sections should be avoided. Due to increased stresses, these bikes should be checked for damage after every ride. Full suspension bikes with mid-level travel are typical in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
