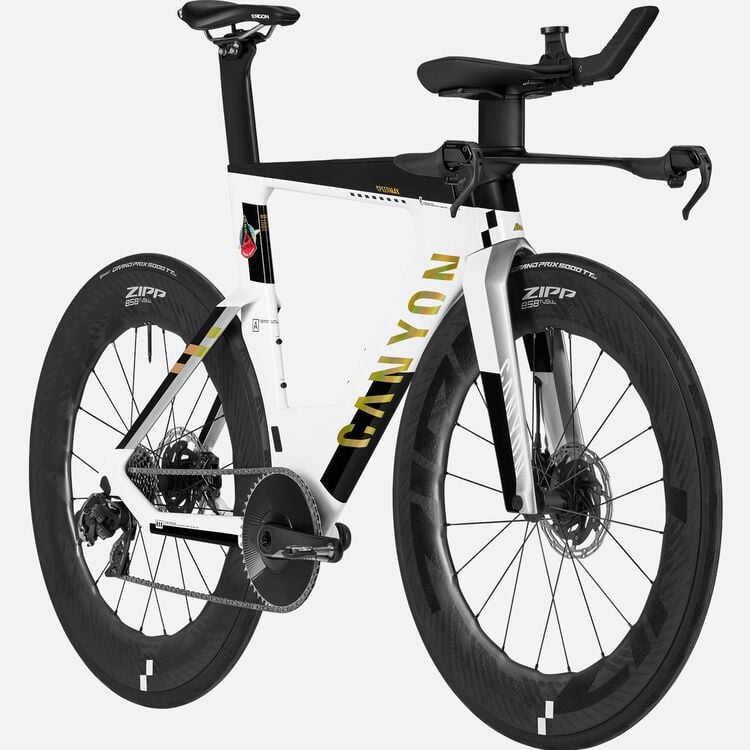

Speedmax CFR Moonshot
- Material: Carbon (CFR)
-
Weight:
9.19 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
Financing with Klarna InstalmentsKlarna offers direct payments, pay later options, or installment plansCalculate amountFinancing with SplititNo credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more -
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.
Learn more
This bike has the following equipment:
- XS - Extensions short
- S+M - Extensions medium
- L+XL - Extensions large
Highlights Speedmax CFR Moonshot
Jan Frodeno: "I want a rocket on my bike!"
3 iconic Frodeno Kona quotes
Frodeno name tag
Mission patch
Frame
-
Frame
- Canyon Speedmax CFR Disc
- Axle dimension: 12x142 mm
- Tyre clearance: 30 mm
- Material: Carbon (CFR)
- Weight: 1,290 g
-
Fork
- Canyon FK0080 CF Disc
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/8"
- Tyre clearance: 30 mm
- Material: Carbon (CF)
- Weight: 362 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM RED eTap AXS 12s
- Weight: 280 g
-
Cassette
- SRAM RED XG-1290, 12-speed, 10-28
- Number of sprockets: 12
-
Crank
- SRAM Red AXS Aero Powermeter, 50T
- Number of chainrings: 1
-
Bottom bracket
- Ceramicspeed Coated BB Dub
- Bottom bracket standard: PF 86,5
-
Chain
- SRAM RED D1 12s
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- Weight: 282 g
-
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- Weight: 272 g
-
Brake Rotor
- SRAM Centerline X
- Size: 160 mm
- Weight: 130 g
Wheels
-
Front Wheel
- Zipp 858 NSW
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim material: Carbon
-
Rear Wheel
- Zipp 858 NSW
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim material: Carbon
-
Tyre
- Continental 5000 S TR
- Width: 25 mm
- Weight: 220 g
-
Tyre
- Continental GP5000 TT TR
- Width: 28 mm
- Weight: 245 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0019 Triathlon Flatbar short
- New triathlon aero cockpit with egonomically optimised grips for maximum control at high speeds and a compact seating position.
- Cockpit type: Flat
- Stem Length: 65 mm
- Basebar Rise: 0 mm
-
Aero Bar
- Canyon GP0226 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
-
Aero Bar
- Canyon EP1412-01/EP1413-01 Armpad Kit
- Premium Ergon armrests providing superior comfort and support. Inspired by Jan Frodeno's custom 2019 cockpit setup.
-
Aero Bar
- Canyon EP1466-01/EP1467-01 Pro Velcro Kit
- Attachment kit for Ergon armpads.
-
Aero Bar
- Canyon GP0377 Aerobar
- Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
-
Aero Bar
- Canyon EP1418-01 Pad Support
- Sturdy high-grade support plate for Speedmax cockpit armpads.
-
Grips
- Canyon Speedmax Pro Monogrip
- Revolutionary mono handlebar extension developed with Jan Frodeno, to deliver outstanding aerodynamic performance.
Seat
-
Saddle
- Ergon SR Triathlon Men
- Gender: Male
- Weight: 210 g
-
Seatpost
- Canyon SP0049 Aero Seatpost
- Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile.
- Material: Carbon (CF)
- Weight: 154 g
-
Seat Clamp
- Canyon Seatclamp for S31/S32
-
Seat Clamp
- Canyon GP0209-01 Seatclamp
Accessories
-
Hydration Packs
- Canyon X Hydrapak Speedmax H2O Reservoir
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon CFR Brandbooklet
-
Manuals and Accessories
- Manual Speedmax CFR/CF SLX
-
Manuals and Accessories
- Manual 007-V01 Road 11/20
-
Manuals and Accessories
- Canyon starter box
Body Height in cm
|
≤ 178 | 178 - 186 | 186 - 196 | ≥ 196 |
---|---|---|---|---|
Seat Height in mm
(a)
|
664 - 784 | 735 - 855 | 775 - 895 | 799 - 919 |
Seat Tube Length in mm
(b)
|
531 | 552 | 592 | 616 |
Top Tube Length in mm
(c)
|
494 | 519 | 548 | 576 |
Head Tube Length in mm
(d)
|
62 | 83 | 123 | 150 |
Head Tube Angle
(e)
|
73° | 73° | 73° | 73° |
Seat Tube Angle
(f)
|
80,5° | 80,5° | 80,37° | 80,5° |
Chainstay Length in mm
(g)
|
420 | 420 | 420 | 420 |
Wheel Base in mm
(h)
|
986 | 1.014 | 1.047 | 1.079 |
Stack in mm
(i)
|
469 | 489 | 527 | 553 |
Reach in mm
(j)
|
415 | 438 | 459 | 483 |
Stand-over Height in mm
(k)
|
797 | 817 | 857 | 881 |
Bottom Bracket Offset in mm
(l)
|
72 | 72 | 72 | 72 |
Armpad Stack in mm
(m)
|
561 - 671 | 581 - 691 | 619 - 729 | 644 - 754 |
Armpad Reach in mm
(n)
|
386 - 440 | 408 - 463 | 430 - 484 | 454 - 508 |
Spacer in mm
|
110,0 | 110,0 | 110,0 | 110,0 |
---|---|---|---|---|
Cockpit Dimensions in mm
|
70-400 | 70-400 | 70-400 | 70-400 |
Crank Length in mm
|
165,0 | 170,0 | 170,0 | 172,5 |
Chainring Size
|
50 | 50 | 50 | 50 |
Seat Post Length in mm
|
285 | 335 | 335 | 335 |
Maximum Seat Post Insertion Depth in mm
|
200 | 200 | 200 | 200 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 |
Wheel Size
|
28" | 28" | 28" | 28" |
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Speedmax CFR Moonshot support
Other riders also bought
- Colour: black/white
- Colour: white/black
- Colour: black/grey
- Colour: white/grey
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
