Strive:ON CFR Underdog
-
Sale
From $6,199
Original price
Save up to $300
Financing available for this product
Race for the podium without breaking the bank on one of the best bang-for-your-buck Enduro e-MTBs available. Shred down to the finish line and power back to the top with the Bosch Performance Line CX motor.
- Motor Brand: Bosch
-
Weight:
54.02 lbs
Weight is based on a size M frame.
Colour:
Stealth
-
Colour: Stealth -
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Members only product.
Log in here
Select a size above in order to view more options.
From $6,199
Original price Save up to $300
Financing available for this product
Delivery:
Select frame size
Additional information
Current delivery times information.
Read more
-
Financing with PayPal
Financing with Affirm FinancingFinancing available for this product -
-
Stress free New Bike DayOur most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic, which includes a basic fit. You’ll receive a full, in-depth walkthrough of all your new Canyon’s parts, accessories, and features to ensure you're ready to ride.
How to choose New Bike DayGet ready-to-ride DeliveryReady to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
-
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Delivery:
Select frame size
Highlights Strive:ON CFR Underdog

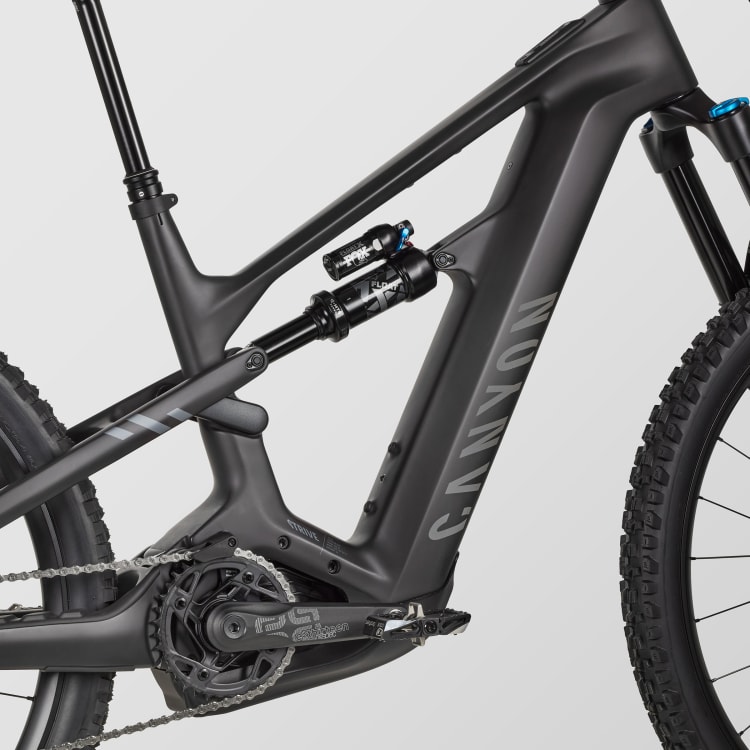

Unmatched CFR frame for e-bike enduro racing
Canyon Factory Racing is our commitment to pushing the limit. While our racers ride all out to shave seconds on the trail, our designers and engineers take feedback and innovate to offer every possible advantage. The result: each CFR frame is built with the highest quality carbon fibres and sets the bar for weight, durability, and cutting-edge performance.

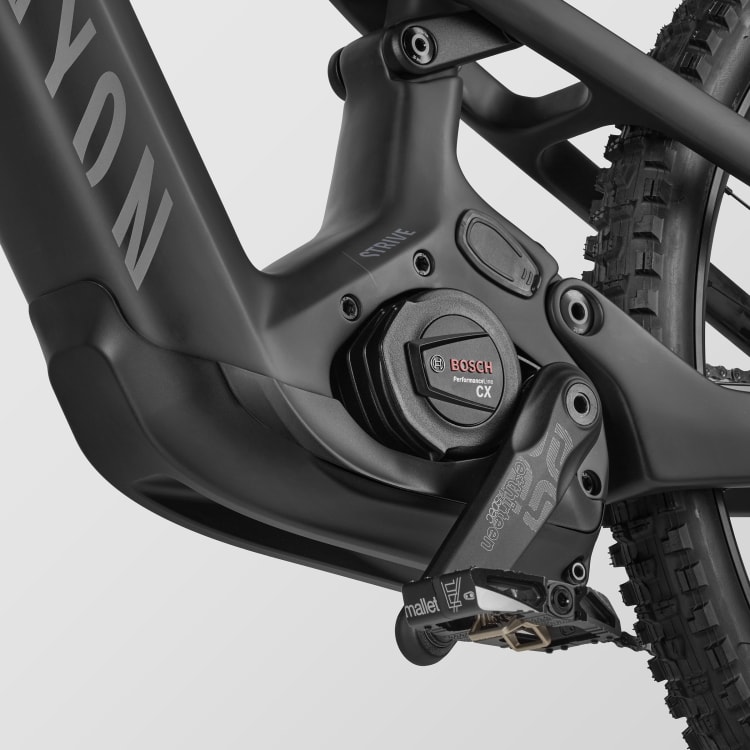

Peerless power delivery from the Bosch CX motor
The Bosch Performance Line CX motor is the favourite of e-enduro racers thanks to its 340% pedal assist and staggering 600 watts of peak power. Power delivery is smooth through every pedal stroke all the way up to 120 rpm, and the overrun feature ensures the motor keeps you rolling up rough, technical climbs.

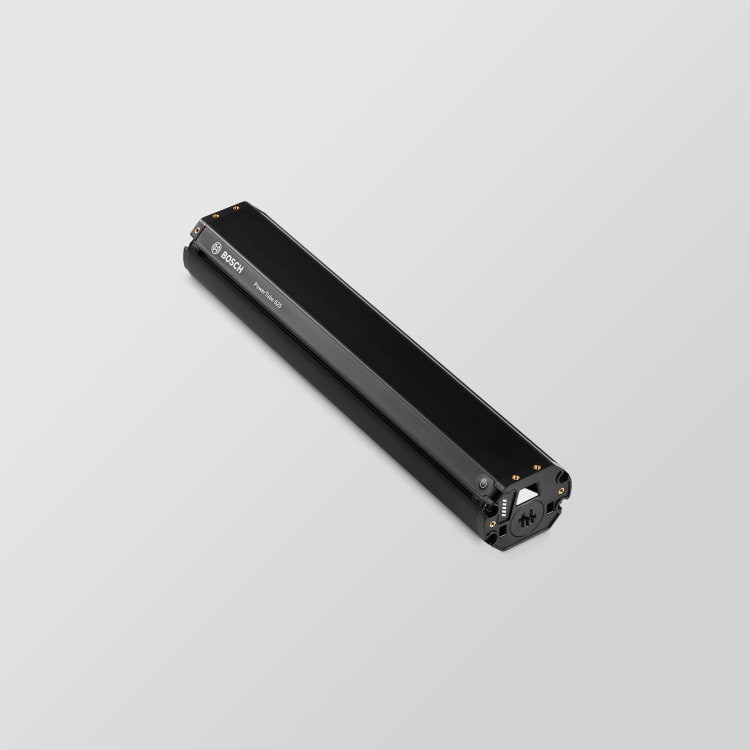

Long-range integrated battery options
Every Bosch PowerTube battery is compact and delivers long-lasting power in a minimalist design. Seamlessly integrated into the Strive:ON frame, the battery can be charged within the bike or quickly removed and swapped out for uninterrupted riding.

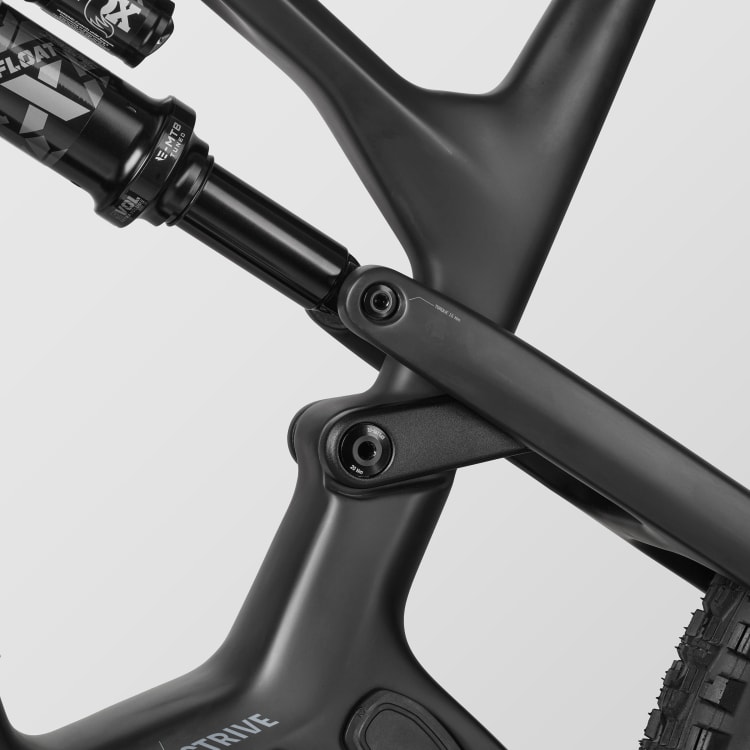

Proven long-term durability
Developed together with our pro race mechanics, replaceable thread inserts protect the Strive:ON frame from irreparable damage at every major pivot point and make thread wear a simple fix. All pivot bearings are double sealed and treated with a proprietary grease fill to keep the pivots safe from the elements and the linkage moving smoother for longer.
Content is loading
Frame
-
Frame
- Canyon Strive:ON
- Carbon e-enduro frame engineered to compete at the highest level of pro racing, meeting our rigorous 4e testing standards. With discreetly integrated battery and motor.
- Axle dimension: 12x148 mm
- Material: Carbon (CFR)
- Weight: 1,600 g
-
Rear Shock
- Fox Float X Evol
- Tune: CL+, RM, Rezi LMB1
- Weight: 800 g
-

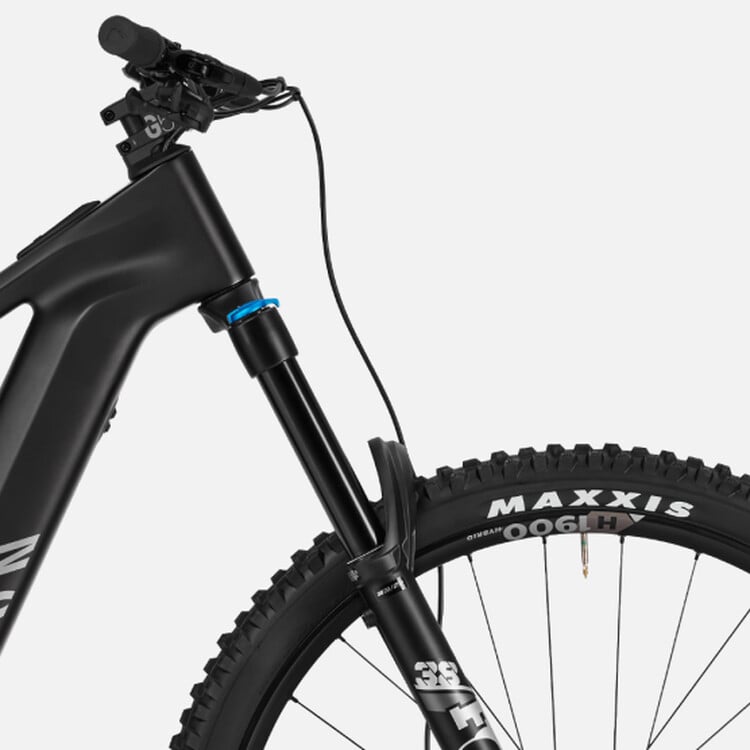

Suspension Fork
- Fox 38 Rhythm Grip
- Axle dimension: 15x110 mm
- Stanchion Diameter: 38 mm
- Travel: 170 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 1
- Weight: 2,175 g
-
Seatpost Clamp
- Canyon SC0001
Drivetrain
-
Motor
- Bosch Performance Line CX
-
Battery
- Bosch PowerTube 750Wh
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Chainguard
- Canyon GP0437-01 Chainguide
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- e*thirteen E-Spec Plus BOSCH
-
Chainring
- FSA Megatooth 36t
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- SRAM DB8
-
Disc Brake
- SRAM DB8
-
Brake Rotor
- SRAM Centerline
- Size: 200 mm
- Weight: 205 g
-
Brake Rotor
- SRAM Centerline
- Size: 220 mm
- Weight: 223 g
Wheels
-
Front Wheel
- DT Swiss H1900 Spline Hybrid 29
- Rotor mount: IS 6-bolt
- Weight: 1,026 g
-
Rear Wheel
- DT Swiss H1900
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Free hub: Shimano
- Hub Technology: Ratchet, standard
- Inner width: 30 mm
- Spokes: Straight Pull
- Rim material: Aluminium
- Weight: 1,122 g
-
Tyre
- Maxxis Minion DHR II 3C MaxxTerra
- Width: 2.4"
- Weight: 900 g
-
Tyre
- Maxxis Assegai 3C MaxxGrip
- Width: 2,5"
- Weight: 1,160 g
-
Thru Axle
- Canyon GP0255-01
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon G5
- Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails.
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon G5
- G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
- Clamping diameter: 31,8 mm
- Rise: 30 mm
-
Grips
- Canyon G5
Seat
-
Saddle
- ERGON SM10 EMTB
- Weight: 300 g
-
Seatpost
- Iridium Dropper
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 602 g
Light
-
Lights
- Reflector Set
Accessories
-
Battery Charger
- Bosch 4A
-
Pedals
- VP-536 flat pedals
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Content is loading
|
Body Height in cm
|
≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
|---|---|---|---|---|
|
Seat Height in mm
(a)
|
648 - 778 | 693 - 813 | 737 - 858 | 762 - 883 |
|
Seat Tube Length in mm
(b)
|
395 | 420 | 435 | 460 |
|
Top Tube Length in mm
(c)
|
584 | 610 | 637 | 665 |
|
Head Tube Length in mm
(d)
|
110 | 120 | 130 | 145 |
|
Head Tube Angle
(e)
|
63,5° | 63,5° | 63,5° | 63,5° |
|
Seat Tube Angle
(f)
|
78° | 78° | 78° | 78° |
|
Chainstay Length in mm
(g)
|
445 | 445 | 445 | 445 |
|
Wheel Base in mm
(h)
|
1.245 | 1.274 | 1.304 | 1.336 |
|
Stack in mm
(i)
|
628 | 637 | 646 | 660 |
|
Reach in mm
(j)
|
450 | 475 | 500 | 525 |
|
Stand-over Height in mm
(k)
|
772 | 777 | 782 | 788 |
|
Bottom Bracket Offset in mm
(l)
|
25 | 25 | 25 | 25 |
|
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
|---|---|---|---|---|
|
Stem Length in mm
|
40 | 40 | 40 | 40 |
|
Handlebar Width in mm
|
780 | 780 | 800 | 800 |
|
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
|
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
|
Dropper post travel in mm
|
150 | 170 | 200 | 200 |
|
Seat Post Length in mm
|
425 | 465 | 525 | 525 |
|
Maximum Seat Post Insertion Depth in mm
|
220 | 240 | 271 | 271 |
|
Minimum Seat Post Insertion Depth in mm
|
90 | 120 | 150 | 150 |
|
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
|
Disc Size in mm
|
220 / 200 | 220 / 200 | 220 / 200 | 220 / 200 |
|
Front Fork Travel in mm
|
170 | 170 | 170 | 170 |
|
Rear Suspension Travel in mm
|
160 | 160 | 160 | 160 |
|
Battery capacity
|
750 Wh | 750 Wh | 750 Wh | 750 Wh |
|
Fitting Length
|
230X65 | 230X65 | 230X65 | 230X65 |
