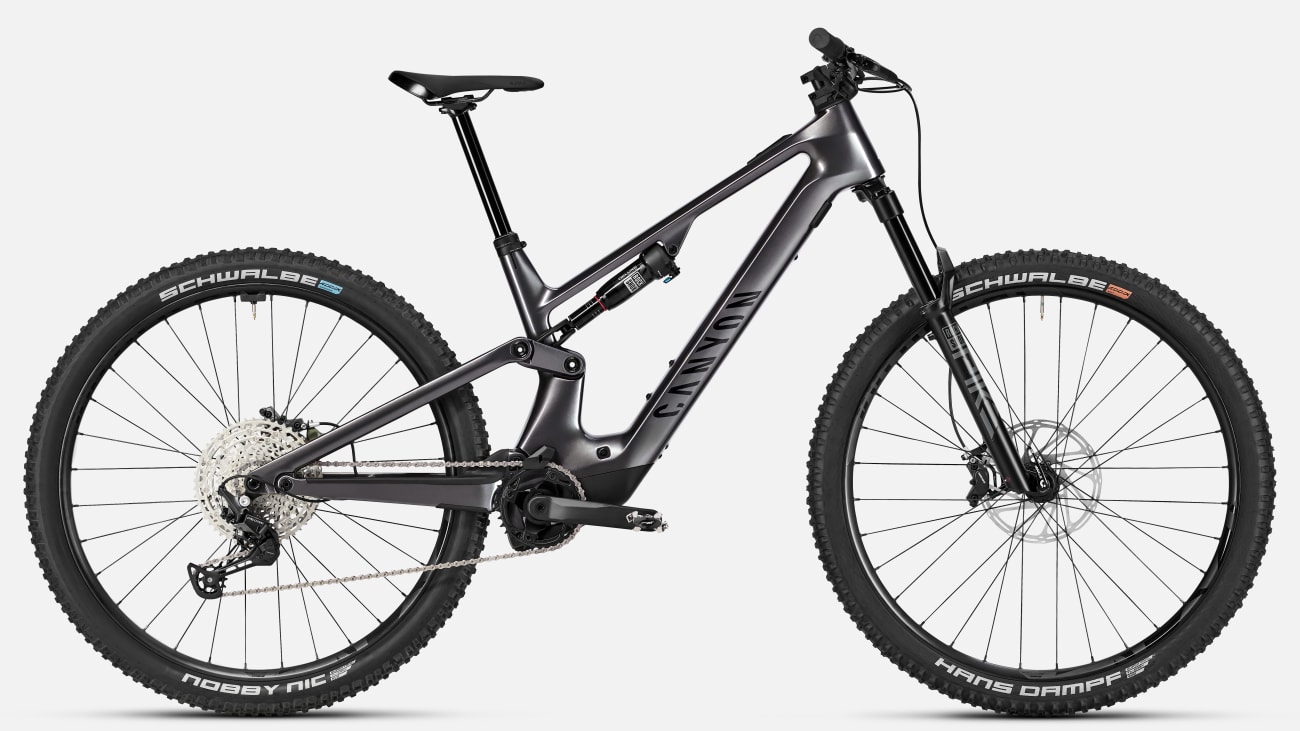

Neuron:ONfly CF 7

The Neuron:ONfly CF 7 makes fast, comfortable, and agile carbon e-MTB performance more accessible than ever. Powered by Bosch and finished with reliable parts from Shimano, SRAM, and RockShox.

30-day return policy

6 Year Warranty

Material: Carbon (CF)
Weight: 44.76 lbs

All components

Customer reviews (22)

Product Configuration

Colour:

Space Grey

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Bike geometry

Sold out

Members only product.

Buying reasons

$3,399

Original price ~~$5,599~~

You save $2,200 (-39%)

Financing available for this product

Sold out

Product added to cart

Highlights Neuron:ONfly CF 7

What makes the Neuron:ONfly?

Tailwind Technology

:ONfly is our vision for integrated, intuitive, and innovative e-bikes. Covering everything from road bikes to trail bikes, these bikes are the sweet spot between traditional bikes and full power e-bikes thanks to the clean lines, compact power, and integrated design.

The perfect package

The sleek frame of the Neuron:ONfly is a crossroads where engineering, design, technology, and performance meet. Working together, these elements create a stunningly beautiful bike that's just as striking as it is fast and durable.

Key features

Powerfully comfortable

With a balanced geometry that nails both the climbs and the descents, the 64.5° head angle and 76.5° seat tube angle make the Neuron:ONfly the perfect choice for maximum comfort on the longest rides. Add to this the Bosch motor and carbon fiber frame, and you'll hardly notice the miles fly by.

Compact Bosch Performance Line SX

Get maximum output for all your effort with the Bosch Performance Line SX motor. This compact motor creates an active ride feel that enhances your pedal strokes to increase speed and power. Conquer that climb that's always been a touch too steep and long. The Neuron:ONfly bridges the gap between full power e-bikes and non-electric bikes brilliantly.

Ride connected

Download the Bosch eBike Flow app and get the full benefits of riding an e-bike. Protect your bike from your phone by turning on the alarm and get an alert if your bike is on the move when it shouldn't be. See battery stats and output details at a glance, and even see when it’s time to book a service at a local shop.

More, more, more

The Bosch Compact Tube 400 manages to eke out a massive 400 watt hours despite weighing only 2kg. But sometimes bigger adventures need bigger batteries like the PowerMore 250 range extender that discreetly extends the range of the bike. The quick charger means you can plug in at breakfast and be fully charged before lunch.

Trail tough

Rated as a Category 3e bike, the Neuron:ONfly is a sleek trail bike that can handle tough and technical terrain. Adding in a robust chainstay and motor protection as well as an Acros Block Lock and downtube bumper means this bike is far more rugged than the gorgeous looks would suggest. It can stand up to a serious thrashing.

Triple phase suspension

Get incredible grip and traction in the early phase of the 140mm of suspension with top-notch small bump response. When the high speed descents come, the firm mid-stroke lets you keep the power on and stay on line. Ramping up at the end of the stroke, the progressive feel can handle the big hits and drops.

Components

Content is loading

All components are based on size M

Frame

Frame
- Canyon Neuron:ONfly CF
- Lightweight, sleek, playful e-MTB with a capable, confidence-inspiring geometry. With Bosch SX power and perfectly downtube-integrated 400 Wh battery.
- Axle dimension 12x148 mm
- Material Carbon (CF)
- Weight 1620 g
Rear Shock
- RockShox Deluxe Select+
- Weight 338 g
- Fitting Length in mm

  XS 210X50

  S - XL 210X55
- Rear Suspension Travel in mm

  XS 130

  S - XL 140
Suspension Fork
- RockShox Pike
- Travel 140 mm
- Fork steer tube diameter 1 1/8" - 1,5"
- Weight 2340 g
Seatpost Clamp
- Canyon GP0446-01

Drivetrain

Motor
- Bosch Performance Line SX
Battery
- CompactTube 400
- Battery capacity 400 Wh
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length long
- Weight 354 g
Chainguard
- Canyon GP0480-01 slim
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight 136 g
Cassette
- Shimano Deore M6100
- Number of sprockets 12
- Range 10-51
Crank
- FSA CK-745 170mm
- Crank Length in mm 170,0
Chainring
- FSA 34T
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- SRAM Code R
- Number of pistons 4
Disc Brake
- SRAM Code R
- Number of pistons 4
Brake Rotor
- SRAM Centerline Rounded
- Weight 228 g
- Disc Size in mm
- 200 / 200

Wheels

Front Wheel
- RODI TRYP30 EVO
- Axle dimension 15x110 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1090 g
Rear Wheel
- RODI TRYP30 EVO
- Axle dimension 12x148 mm
- Rotor mount Center Lock
- Rim material Aluminium
- Weight 1190 g
- Wheel Size
- XS 27.5"

  S - XL 29"
Tyre
- Schwalbe Hans Dampf
- Width 60 mm
- Weight 1048 g
Tyre
- Schwalbe Nobby Nic
- Width 62 mm
Thru Axle
- Canyon Quixle
- Axle dimension 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031
- Canyon E-MTB stem.
- Fork steer tube diameter 1 1/8"
- Clamping diameter 35,0 mm
- Material Aluminium (AL)
- Stem Length in mm 45
Handlebar
- Canyon:ON HB0056
- Aluminum.
- Clamping diameter 35,0 mm
- Rise 20 mm
- Handlebar Width in mm

  XS 740

  S - M 760

  L - XL 780
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Alpaca X5
- Gender Unisex
- Weight 230 g
Seatpost
- Canyon SP0070-01
- Cable actuated.
- Travel Dependent on frame size (see component geometry table.)
- 25mm of adjustable travel (5mm steps)
- Seatpost diameter 34,9 mm
- Material Aluminium (AL)
- Weight 654 g
- Seat Post Length in mm
- XS 417

  S 457

  M - L 517

  XL 587
- Dropper post travel in mm
- XS 150

  S 170

  M - L 200

  XL 230
- Maximum Seat Post Insertion Depth in mm
- XS 250

  S 270

  M - L 300

  XL 340
- Minimum Seat Post Insertion Depth in mm
- XS 150

  S 120

  M - L 150

  XL 190

Accessories

Battery Charger
- Bosch 4A
Pedals
- Flat Pedals
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
a Seat Height in mm	632 - 707	665 - 790	705 - 830	735 - 860	775 - 900
b Seat Tube Length in mm	392	405	415	445	455
c Top Tube Length in mm	556	585	612	640	667
d Head Tube Length in mm	110	120	130	140	150
e Head Tube Angle	64,5°	64,5°	64,5°	64,5°	64,5°
f Seat Tube Angle	76,5°	76,5°	76,5°	76,5°	76,5°
g Chainstay Length in mm	450	450	450	450	450
h Wheel Base in mm	1.179	1.213	1.242	1.271	1.301
i Stack in mm	608	626	635	644	653
j Reach in mm	410	435	460	485	510
k Stand-over Height in mm	757	767	770	775	779
l Bottom Bracket Offset in mm	36	36	36	36	36
