Mountain Bikes Trail Neuron AL

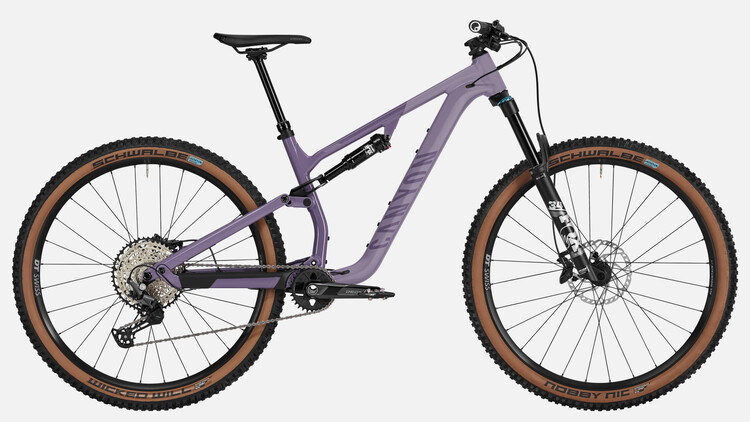

Neuron 6

Name: Neuron 6
Brand: Canyon
Price: 2199.00 USD
Availability: OutOfStock
Rating: 5 (37 reviews)

-24%

Tried and tested aluminium performance with the best bang for your buck Shimano drivetrain and FOX fork, the Neuron 6 is built for no compromise trail riding.

Front Fork Travel: 140 mm
Weight: 32.33 lbs

Reviews (37)

Press and awards (1)

Colour: Lavender

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Members only product.

Sold out

Highlights Neuron 6

Key features

Intuitive handling

The Neuron impresses with its intuitive handling and inspires you to confidently set off for new horizons. It sits quietly on the trail and smoothly insulates you from impacts so you can go with the flow.

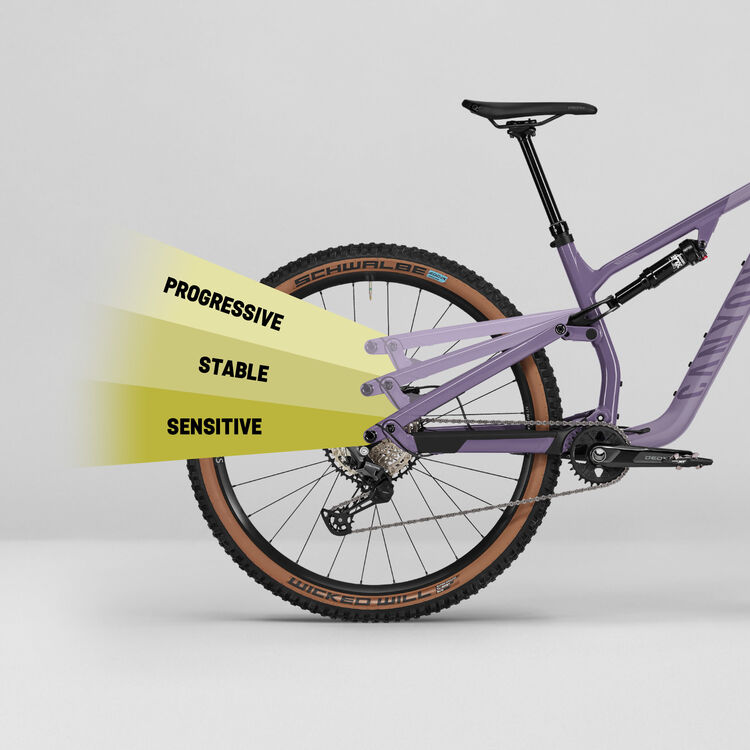

Triple Phase Suspension

The Neuron AL is equipped with Triple Phase Suspension that ensures optimal control during your ride. The leverage curve features small bump sensitivity at the start for incredible traction. Mid-stroke stability delivers speed and momentum to push through compressions and jump over features. On bigger hits, the suspension ramps up progressively to avoid bottoming out making for an overall smoother and more comfortable ride.

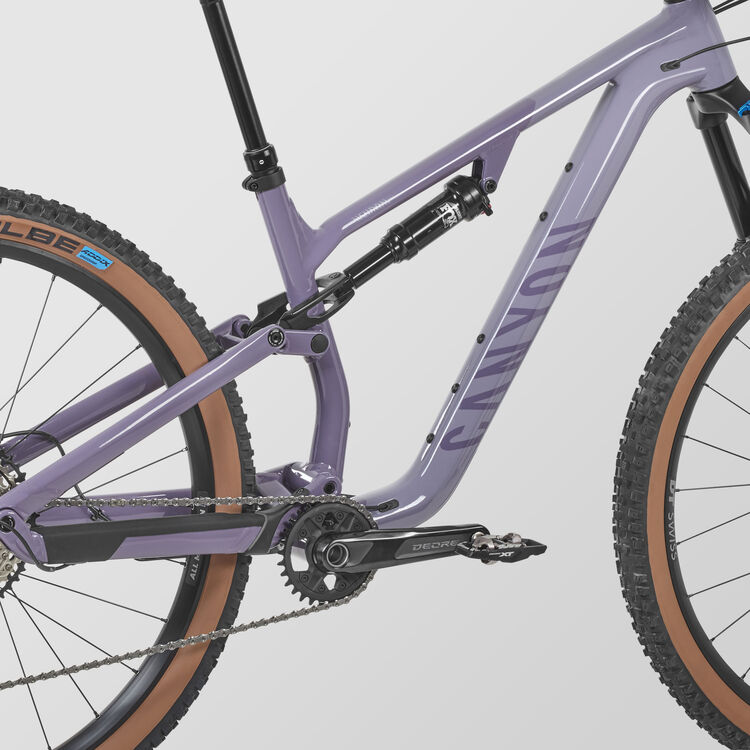

Geometry & wheels

Stability and control in technical terrain and on trails, a capable and confidence inspiring geometry for the Neuron on 29er Wheels (M- XL) and smaller wheels for smaller riders (650B on XS and S):66° Head Tube angle, 76° Seat Tube Angle, 455mm Reach (Size M). For more details check out the geometry table.

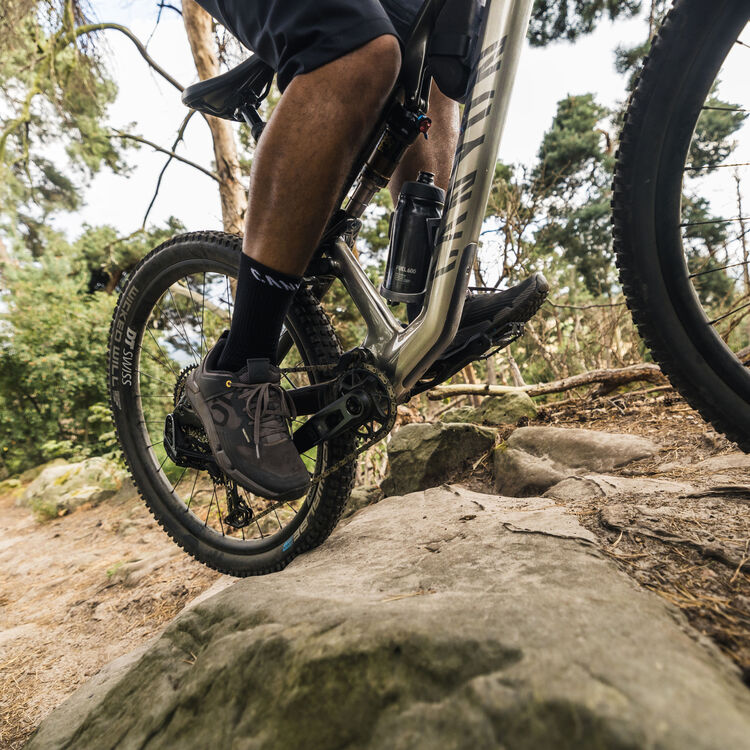

Integrated chainstay protection

The Neuron’s integrated chainstay protector keeps the frame safe and in pristine condition and also eliminates annoying chain slap noises.

Ready to drop

All Neuron bikes come with a dropper post as standard letting you thread the needle on technical trails. In 2023 we shrank the seat tube by 20 mm, allowing you to run longer-travel dropper posts so that all riders can get their saddle low and well out of the way.

Accessories shown here are sold separately. Buy the products here.

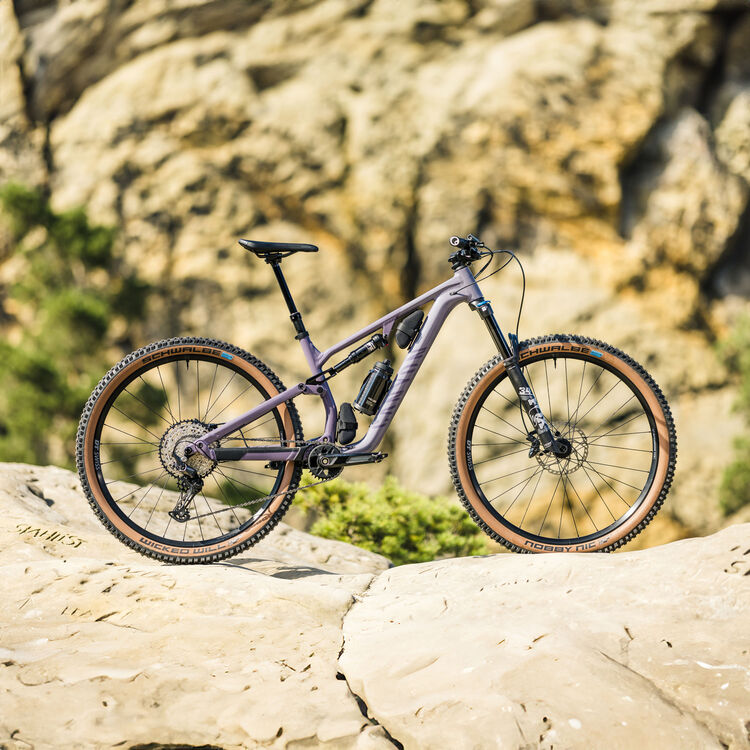

Stored and secure

Pack some essential tools or extra snacks for your ride with the Canyon Load Bag that mounts directly to the frame.

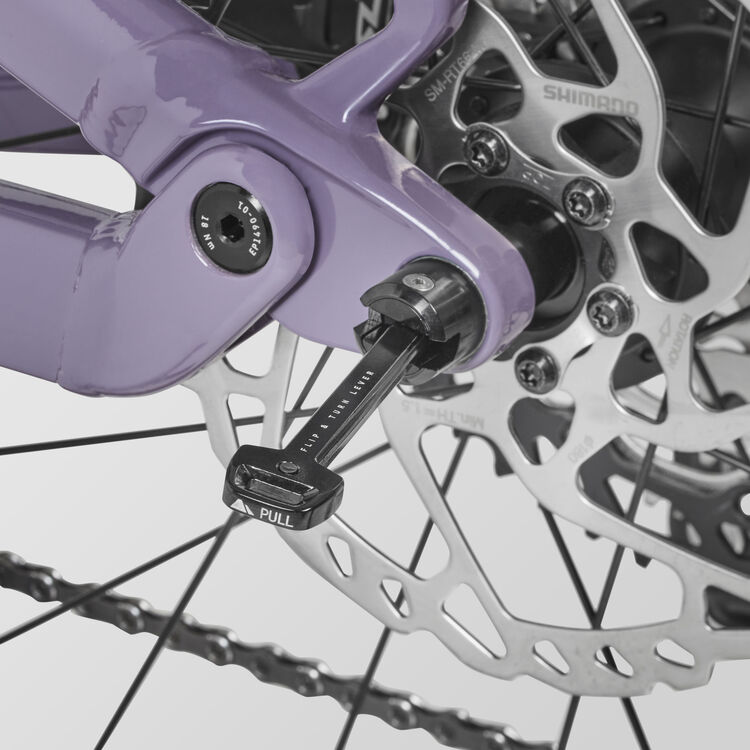

Quick-release through axle

With the Quixle through-axle system, the Neuron AL provides riders with the best of both worlds. The Quixle delivers the stiffness and improved handling of a through axle setup while also providing the easy removal and install of a quick release. The handle tucks away neatly for tool-free removal, adding to its versatility and making it an ideal choice for those who prioritize speed and convenience.

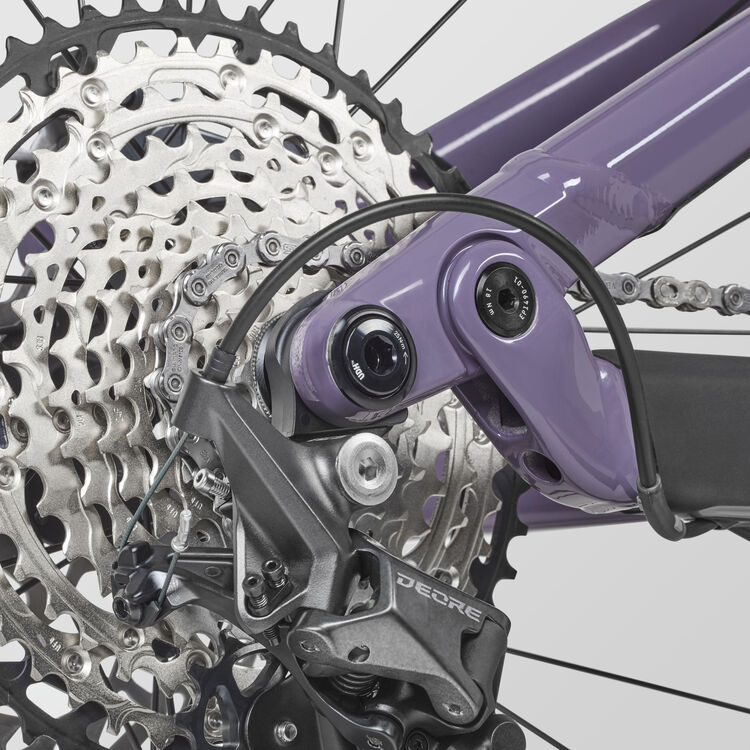

Universal hanger

The state-of -the-art UDH (Universal Derailleur Hanger) from SRAM is compatible with all makes of derailleurs which makes repairs and upgrades as hassle-free as possible.

Components

Content is loading

Frame

Frame
- Canyon Neuron
- Rugged full-suspension aluminium MTB frame with a perfectly balanced geometry for a confidence inspiring ride.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,620 g
Rear Shock
- FOX Float Rhythm

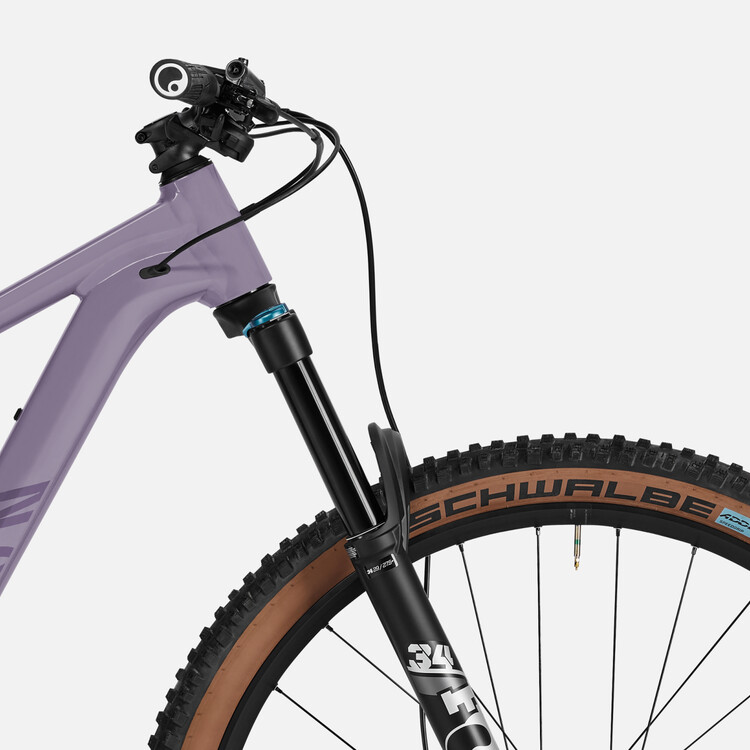

Suspension Fork
- Fox 34 Rhythm
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Seatpost Clamp
- Canyon SC0001

Drivetrain

Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets: 12
- Range: 10-51
Crank
- Shimano Deore FC-M6120
- Number of chainrings: 1
Chain
- Shimano Deore M6100

Brakes

Disc Brake
- Shimano Deore M6100
Disc Brake
- Shimano Deore BR-M6120
Brake Rotor
- Shimano RT66 180
- Size: 180 mm
- Weight: 140 g

Wheels

Front Wheel
- DT Swiss AM LN 370
- Axle dimension: 15x110 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,046 g
Rear Wheel
- DT Swiss AM LN 370
- Axle dimension: 12x148 mm
- Rotor mount: IS 6-bolt
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,165 g
Tyre
- Schwalbe Nobby Nic 29x2.4" bronze skin
- Width: 2.4"
- Weight: 876 g
Tyre
- Schwalbe Wicked Will 29x2.4" bronze skin
- Width: 2.4"
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- RaceFace Ride 35
- Clamping diameter: 35,0 mm
- Rise: 20 mm
Grips
- Ergon GE10 Evo Slim

Seat

Saddle
- Ergon SM10 Enduro
- Gender: Unisex
- Weight: 314 g
Seatpost
- Canyon SP0081
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 622 g

Light

Lights
- Reflector Set

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	612 - 766	637 - 816	692 - 891	727 - 926	767 - 966
Seat Tube Length in mm (b)	390	390	425	460	500
Top Tube Length in mm (c)	556	579	611	639	674
Head Tube Length in mm (d)	90	100	110	125	143
Head Tube Angle (e)	66°	66°	66°	66°	66°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	430	430	440	440	440
Wheel Base in mm (h)	1.139	1.164	1.203	1.234	1.271
Stack in mm (i)	587	596	626	639	656
Reach in mm (j)	410	430	455	480	510
Stand-over Height in mm (k)	756	760	760	766	772
Bottom Bracket Offset in mm (l)	18	18	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	20	20	20	20	20
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	740	740	760	760	760
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170	170
Seat Post Length in mm	408	458	498	498	498
Maximum Seat Post Insertion Depth in mm	234	259	279	279	279
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	27.5"	27.5"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Rear Suspension Travel in mm	130	130	130	130	130
Fitting Length	190X45	190X45	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Content is loading

Neuron 6 support

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
