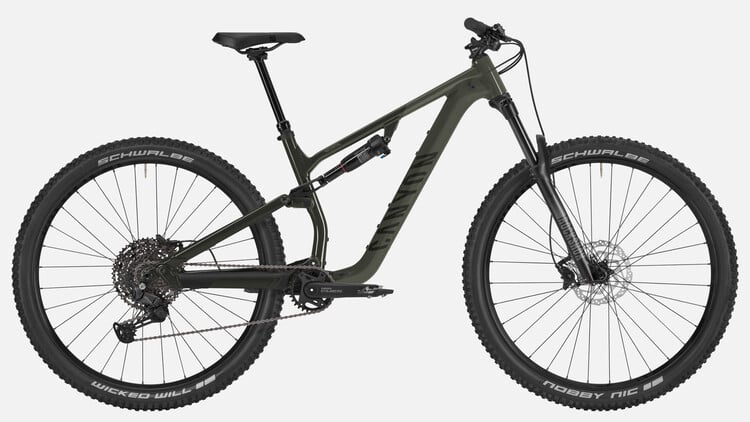

Neuron 5
The Neuron 5 brings all day comfort at an aggressive price point with geometry and components that let you plan long adventures out on the trail.
-
Weight:
15.54 kg
WeightWeight is based on a size medium frame.
- Material: Aluminium (AL)
-
-
Members only product. Log in here
Select your model
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).
Members only product.
Log in here
Sold out
Wear level
Visual imperfections
Bikes and framesets in this category are unridden new bikes that may have minimal colour deviations, scratches or damage to paintwork.
These images show model #0001106415
Highlights Neuron 5

Everyday escapes
Define your own adventure with an all-rounder that was built to escape. Choose balanced geometry, efficient performance, and a durable frame.

A Welsh epic
See how Vedangi Kulkarni plotted her adventure across North Wales on singletrack trails and gravel paths with her Neuron. Learn more
Frame
-
Frame
- Canyon Neuron
- Rugged full-suspension aluminium MTB frame with a perfectly balanced geometry for a confidence inspiring ride.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,620 g
-
Rear Shock
- Rock Shox Deluxe Select +
- Weight: 375 g
-

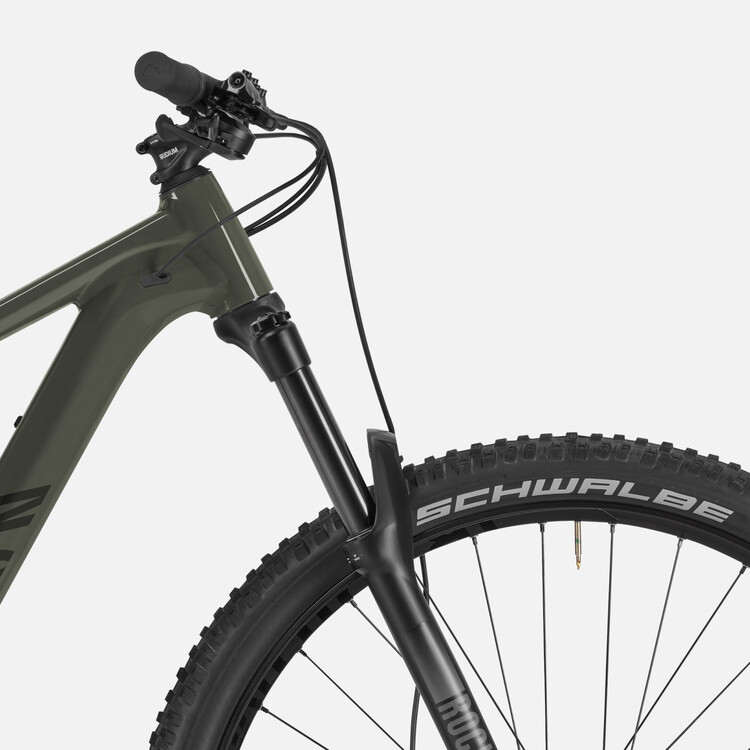

Suspension Fork
- Rock Shox Recon Silver RL
- Axle dimension: 15x110 mm
- Stanchion Diameter: 32 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 2,500 g
Drivetrain
-
Rear Derailleur
- Shimano CUES 10/11-speed
- Cage length: short
- Weight: 348 g
-
Shift Lever
- Shimano Cues U6000 11S
- Weight: 145 g
-
Cassette
- Shimano Cues LG400
- Number of sprockets: 11
- Range: 11-50
-
Crank
- Shimano CUES U6000
- Number of chainrings: 1
-
Bottom bracket
- Shimano BB-MT501
- Bottom bracket standard: BSA HT2 68/73
- Weight: 73 g
-
Chain
- Shimano Cues LG500
Brakes
-
Disc Brake
- Shimano MT410
-
Disc Brake
- Shimano MT410
-
Brake Rotor
- Shimano RT10
- Size: 180 mm
- Weight: 211 g
Wheels
-
Front Wheel
- Rodi TRYP 30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Rim material: Aluminium
- Weight: 1,070 g
-
Rear Wheel
- Iridium | Shimano TC500
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim material: Aluminium
- Weight: 1,360 g
-
Tyre
- Schwalbe Wicked Will
- Width: 2,4"
-
Tyre
- Schwalbe Nobby Nic
- Width: 2,4"
- Weight: 960 g
-

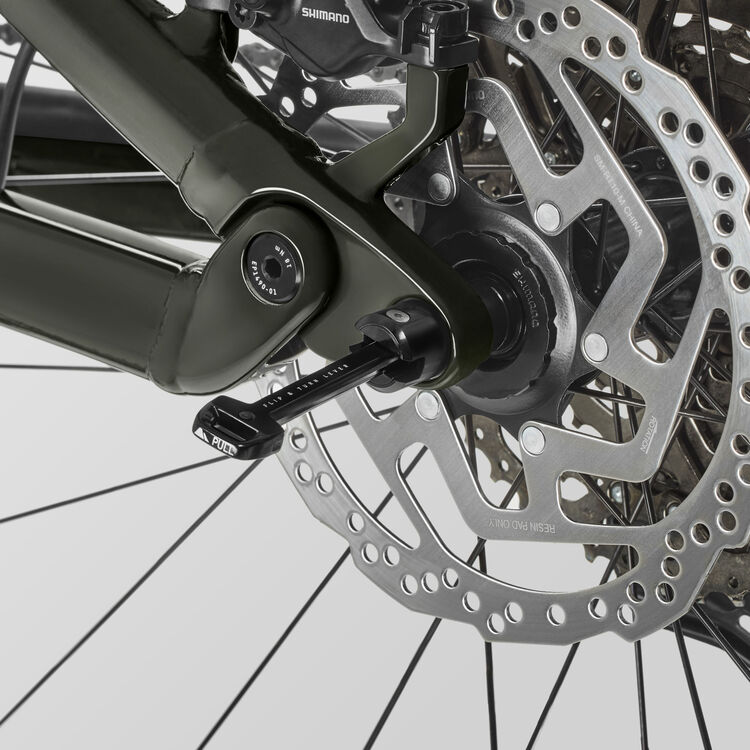

Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Iridium Stem
- Fork steer tube diameter: 1 1/8"
-
Handlebar
- Canyon HB0059-01
- Clamping diameter: 31,8 mm
- Rise: 5 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Selle Italia X Base Boost
-
Seatpost
- Canyon SP0081
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 622 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
612 - 766 | 637 - 816 | 692 - 891 | 727 - 926 | 767 - 966 |
Seat Tube Length in mm
(b)
|
390 | 390 | 425 | 460 | 500 |
Top Tube Length in mm
(c)
|
556 | 579 | 611 | 639 | 674 |
Head Tube Length in mm
(d)
|
90 | 100 | 110 | 125 | 143 |
Head Tube Angle
(e)
|
66° | 66° | 66° | 66° | 66° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
430 | 430 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.139 | 1.164 | 1.203 | 1.234 | 1.271 |
Stack in mm
(i)
|
587 | 596 | 626 | 639 | 656 |
Reach in mm
(j)
|
410 | 430 | 455 | 480 | 510 |
Stand-over Height in mm
(k)
|
756 | 760 | 760 | 766 | 772 |
Bottom Bracket Offset in mm
(l)
|
18 | 18 | 38 | 38 | 38 |
Spacer in mm
|
20 | 20 | 20 | 20 | 20 |
---|---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
Handlebar Width in mm
|
740 | 740 | 760 | 760 | 760 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 | 170,0 |
Chainring Size
|
30 | 30 | 30 | 30 | 30 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
125 | 150 | 170 | 170 | 170 |
Seat Post Length in mm
|
408 | 458 | 498 | 498 | 498 |
Maximum Seat Post Insertion Depth in mm
|
234 | 259 | 279 | 279 | 279 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 |
Wheel Size
|
27.5" | 27.5" | 29" | 29" | 29" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
140 | 140 | 140 | 140 | 140 |
Rear Suspension Travel in mm
|
130 | 130 | 130 | 130 | 130 |
Fitting Length
|
190X45 | 190X45 | 210X50 | 210X50 | 210X50 |
Download PDF
-
2024Bike Of The YearThe Neuron is rightly a real all-time favorite.Bike Of The YearThe Neuron is rightly a real all-time favorite.
Neuron 5 support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
