Ultimate CF SLX 8 Di2 Speed

Name: Ultimate CF SLX 8 Di2 Speed
Brand: Canyon
Price: 6089.00 EUR
Availability: OutOfStock
Rating: 5 (22 reviews)

6.089 €

Original price ~~6.599 €~~

You save 510 €

With an incredible combo of stiffness, lightness, and aerodynamics, experience pure road racing performance from the first turn of the cranks. Featuring DT Swiss carbon wheels, Shimano electronic shifting, and power meter technology from 4iiii.

Material: Carbon (CF)
Weight: 7.44 kg

Weight

Weight is based on a size medium frame.

Reviews (22)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Note: The DT Swiss wheels supplied with this bike have either not been affected by the recent DT Swiss product safety recall or have been inspected and subsequently approved by DT Swiss. For more information, please visit www.dtswiss.com/recall.

Members only product.

6.089 €

Original price ~~6.599 €~~

You save 510 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Ultimate CF SLX 8 Di2 Speed

All-round perfection

Iconic performance

Whether climbing epic mountain passes, powering along the flat or navigating a technical descent, the Ultimate CF SLX delivers. With pinpoint handling, light weight and aerodynamics, this bike is your companion when the road heads upwards, downwards and everything in between.

Designing the new Ultimate

Canyon engineer, Lukas Birr, explains the design and development process that went into creating the Ultimate; a road bike that delivers the perfect balance. Lightweight, stiff and aerodynamic. This is our classic road race bike, evolved.

Key features

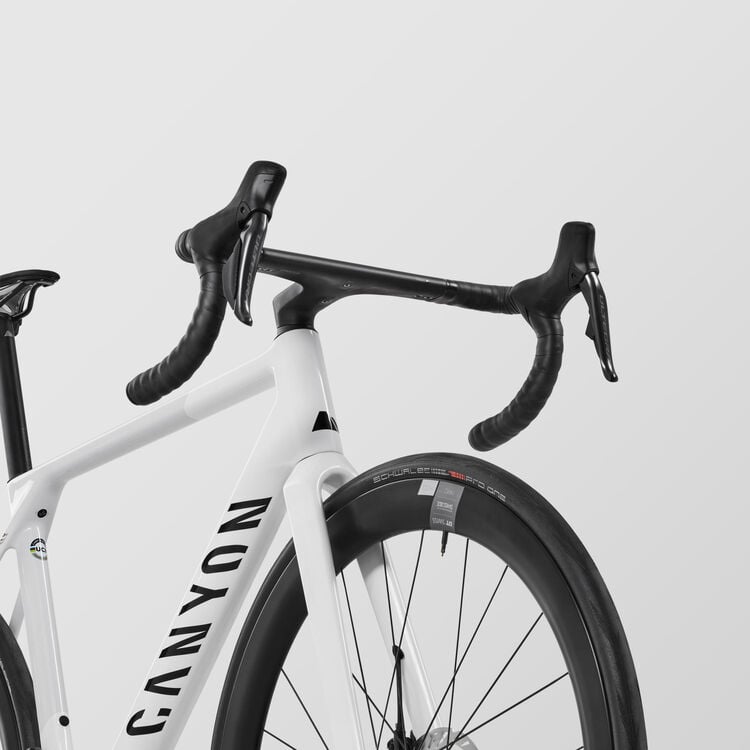

A pro-level cockpit

With complete cable and wire integration, get super-clean optics and reduced drag at the same time. And with single-tool adjustable height and width, big spacer stacks and time-consuming bar swaps are a thing of the past.

A new integrated aero seatpost

The Ultimate looks even cleaner and sleeker with this clamp design. The clamp is hidden away in the seat tube, so there’s no extra drag. We combine it with a D-shaped seatpost to reduce air resistance in the seat tube area to an absolute minimum.

High-end carbon layup

To make a frame with a class-leading stiffness-to-weight ratio, you need to use an advanced mix of carbon fibre materials. We precisely optimised the frame’s wall thickness and chose the exact fibres required for incredible stiffness and huge strength.

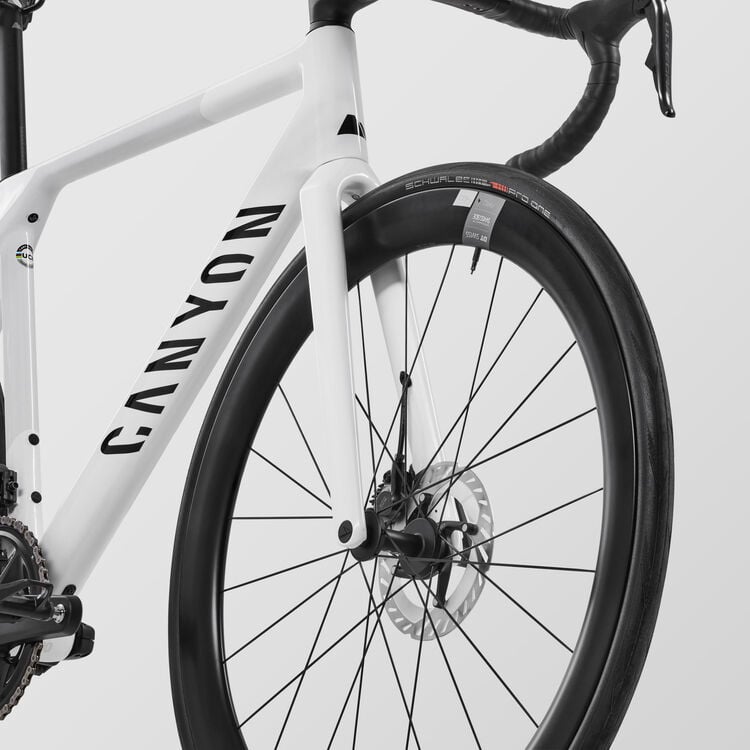

Aerodynamically optimised

On the road, from just 14 kph, aerodynamic drag is the largest force holding you back. So we optimised the frame forms for minimum drag, through an exhaustive process of wind tunnel testing in collaboration with aero experts Swiss Side. We also integrated the headtube/fork area as much as possible for extra aero gains.

Components

Content is loading

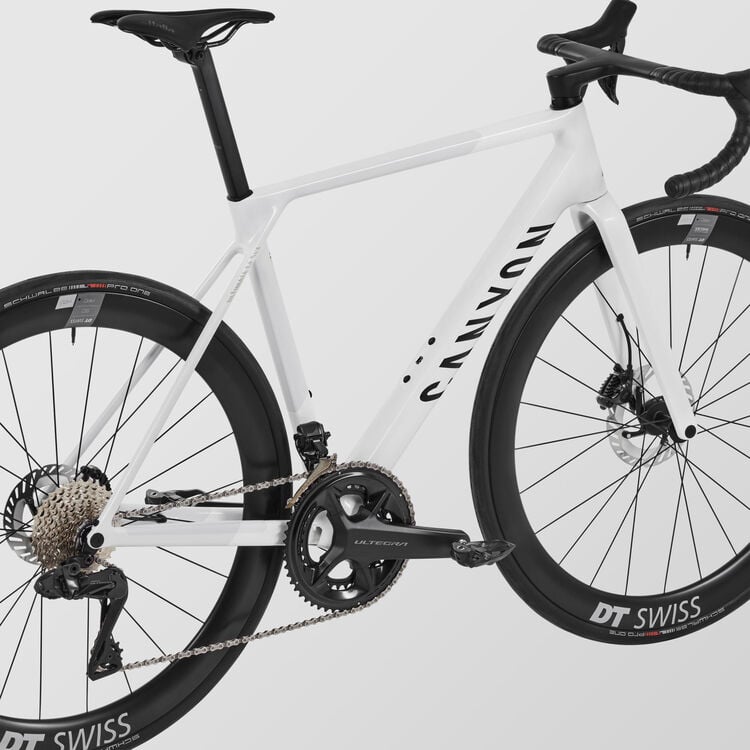

Frame

Frame
- Canyon Ultimate CF SLX Disc
- Our latest 5th-generation Ultimate frame.
- Axle dimension: 12x142 mm
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 940 g
Fork
- Canyon FK0104 CF
- Carbon fork optimised for lightness, stiffness, and strength.
- Axle dimension: 12x100 mm
- Fork steer tube diameter: 1 1/4"
- Tyre clearance: 33 mm
- Material: Carbon (CF)
- Weight: 355 g

Drivetrain

Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano Ultegra Di2
- Weight: 260 g
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight: 111 g
Cassette
- Shimano CS-R8101
- Number of sprockets: 12
- Range: 11-34
Crank
- Shimano Ultegra FC-R8100 4iiii Precision Powermeter
- Works with Apple FindMy
- Number of chainrings: 2
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
Chain
- Shimano XT

Brakes

Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons: 2
- Weight: 199 g
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons: 2
- Weight: 369 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 140 mm
- Weight: 95 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 112 g

Wheels

Front Wheel
- DT Swiss ARC 1400 Dicut db
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 716 g
Rear Wheel
- DT Swiss ARC 1400 Dicut db
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 50 mm
- Inner width: 20 mm
- Rim material: Carbon
- Weight: 836 g
Tyre
- Schwalbe Pro One TLE
- Width: 28 mm
- Weight: 270 g
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

Cockpit

Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 181 g
Seatpost
- Canyon SP0055
- Custom carbon seatpost with aerodynamic D-shape profile.
- Seatpost diameter: 27,2 mm
- Setback: 10 mm
- Material: Carbon (CF)
- Weight: 108 g
Seat Clamp
- Canyon GP0223-02 Clamp Set 7x7

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon starter box
Manuals and Accessories
- Quick Start Guide

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
Seat Height in mm (a)	624 - 724	654 - 754	684 - 784	714 - 814	744 - 844	774 - 874	804 - 904
Seat Tube Length in mm (b)	420	450	480	510	540	570	600
Top Tube Length in mm (c)	516	529	546	555	569	594	609
Head Tube Length in mm (d)	88	107	121	142	162	188	206
Head Tube Angle (e)	70°	71,2°	72,8°	73,3°	73,3°	73,5°	73,8°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	410	410	410	410	413	415	415
Wheel Base in mm (h)	975	979	982	988	1.003	1.029	1.042
Stack in mm (i)	498	520	539	560	580	606	624
Reach in mm (j)	372	378	390	393	401	419	429
Stand-over Height in mm (k)	720	748	775	801	828	851	874
Bottom Bracket Offset in mm (l)	73	73	73	73	73	73	73
Stack+ in mm	573	596	613	635	656	681	701
Reach+ in mm	428	446	459	473	490	509	530

Component geometry

Detailed geometry table

Spacer in mm	16	16	16	16	16	16	16
Cockpit Dimensions in mm	80-390	90-390	90-390	100-410	110-410	110-410	120-410
Crank Length in mm	165,0	170,0	172,5	172,5	175,0	175,0	175,0
Chainring Size	52/36	52/36	52/36	52/36	52/36	52/36	52/36
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	316	316	316	316	316	316	316
Maximum Seat Post Insertion Depth in mm	160	160	160	160	160	160	160
Minimum Seat Post Insertion Depth in mm	60	60	60	60	60	60	60
Wheel Size	28"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	140 / 140	160 / 140	160 / 140	160 / 140	160 / 160	160 / 160

Download PDF

Content is loading

Ultimate CF SLX 8 Di2 Speed support

Canyon Bikestand

60,95 €

-36%

Canyon Winter Cycling Jacket

91,95 €

Original price ~~142,95 €~~

You save 51 €

Rear light for free

Canyon Disruptr CFR Helmet

254,95 €

-50%

Canyon Men's Signature Pro LTD Cycling Jersey

86,95 €

Original price ~~172,95 €~~

You save 86 €

Canyon Lightweight Carbon Bottle Cage

50,95 €

Canyon Tool Capsule

13,95 €

Canyon Tempr CFR Road Cycling Shoes

335,95 €

Weather-ready

Canyon PocketLight Rain Vest Race Fit

132,95 €

Weather-ready

Canyon FLASH Helmet Light

30,95 €

Canyon Road Underseat Bag

20,95 €

-31%

Canyon Light Cycling Socks

10,95 €

Original price ~~15,95 €~~

You save 5 €

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
