Endurace CF SLX 8 Di2
- Material: Carbon (CF)
-
Weight:
7.88 kg
WeightWeight is based on a size medium frame.
- Colour: Desert Grey
- Colour: Light Moss
- Colour: Stealth
-
-
Members only product. Log in here
-
No credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more -
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.
Learn more
Highlights Endurace CF SLX 8 Di2

All roads ready

VCLS - Unlocking your best performance
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda

High-grade carbon fibre

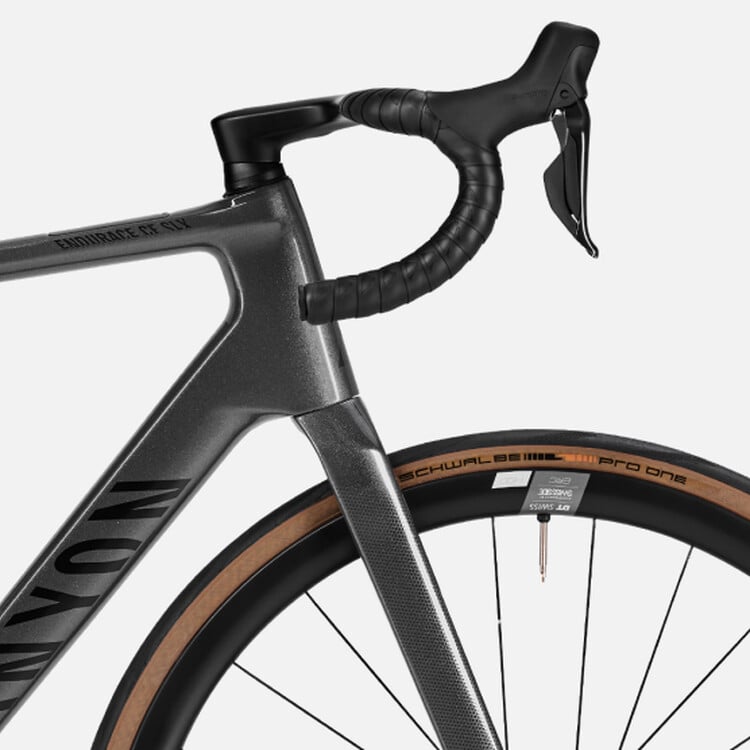

An aerodynamic, easily adjustable carbon cockpit

Ride-saving tools at your fingertips

The benchmark of carbon seatpost design
Frame
-
Frame
- Canyon Endurace CF SLX Disc

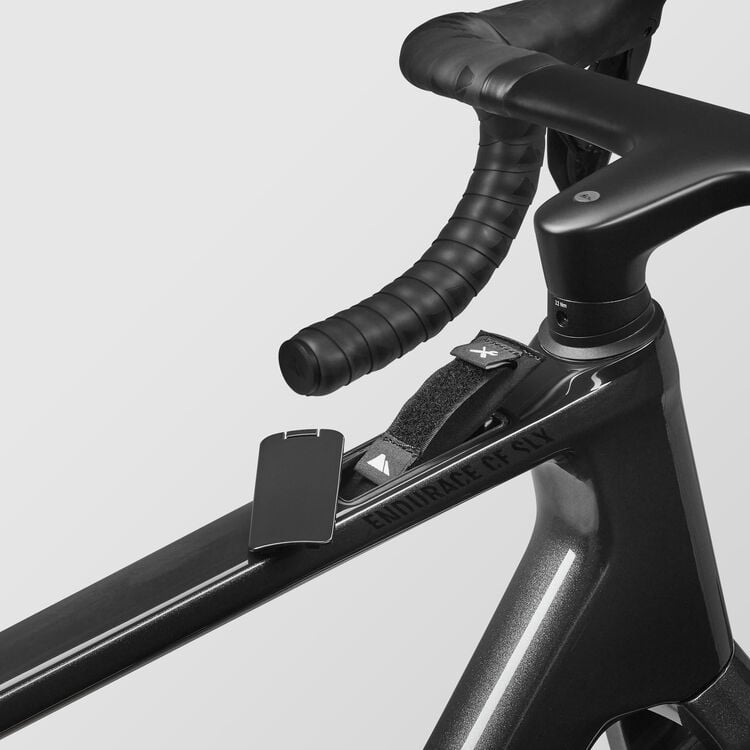

- Lightweight endurance frame. Featuring the Endurace's hallmark relaxed-yet-responsive Sport Geometry and internal LOAD top tube storage.
- Axle dimension: 12x142 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 1,064 g
-
Fork
- Canyon FK0129 CF Disc
- Lightweight carbon fork, engineered for maximum stiffness-to-weight and compliance.
- Axle dimension: 12x100 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 480 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano Ultegra Di2
- Weight: 260 g
-
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight: 111 g
-
Cassette
- Shimano CS-R8101
- Number of sprockets: 12
- Range: 11-34
-
Crank
- Shimano Ultegra FC-R8100 4iiii Precision Powermeter
- Works with Apple FindMy
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
-
Chain
- Shimano XT
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- SBL SHIM R8170 1300 LF160 FM JKITD FIN F
- Weight: 375 g
-
Shift-/ Brake Lever
- Shimano Ultegra Di2 R8170
- Number of pistons: 2
- Weight: 369 g
-
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 112 g
Wheels
-
Front Wheel
- DT Swiss ERC 1400 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 35 mm
- Weight: 679 g
-
Rear Wheel
- DT Swiss ERC 1400 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 35 mm
- Weight: 798 g
-
Tyre
- Schwalbe Pro One TLE, 30mm
- Width: 30 mm
- Weight: 335 g
-
Tyre
- Schwalbe Pro One TLE, 32mm
- Width: 32 mm
- Weight: 345 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Tempo Argo R3
- Gender: Unisex
- Weight: 229 g
-

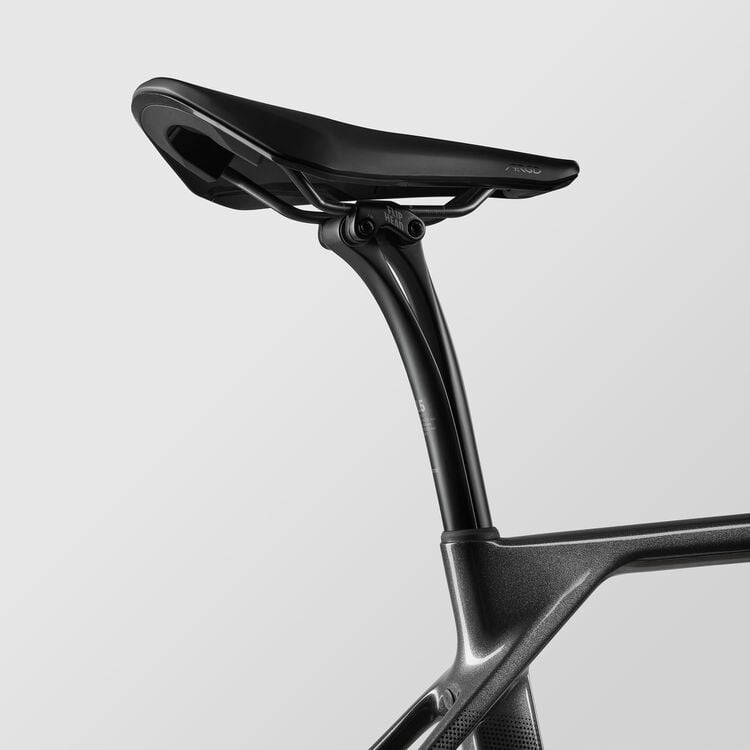

Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Endurace Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 159 | 159 - 165 | 165 - 171 | 171 - 178 | 178 - 185 | 185 - 192 | 192 - 198 | ≥ 198 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
509 | 519 | 540 | 551 | 561 | 576 | 602 | 617 |
Head Tube Length in mm
(d)
|
123 | 138 | 129 | 146 | 165 | 186 | 212 | 232 |
Head Tube Angle
(e)
|
70,3° | 71,5° | 70,8° | 71,8° | 72,75° | 73° | 73,3° | 73,3° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
959 | 958 | 991 | 993 | 993 | 1.006 | 1.029 | 1.044 |
Stack in mm
(i)
|
510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
Reach in mm
(j)
|
350 | 354 | 370 | 375 | 378 | 387 | 405 | 415 |
Stand-over Height in mm
(k)
|
708 | 734 | 763 | 788 | 815 | 840 | 867 | 891 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
591 | 609 | 630 | 649 | 669 | 691 | 717 | 737 |
Reach+ in mm
|
398 | 412 | 428 | 443 | 453 | 472 | 490 | 510 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
70-390 | 80-390 | 80-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Endurace CF SLX 8 Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
