Grizl:ONfly CF 9

Unlock wild adventures with SRAM wireless shifting, light and strong DT Swiss carbon wheels and the latest Bosch Performance Line Sprint motor technology and its 28 mph support to take you way beyond the city limits.

Weight: 34.27 lbs
Material: Carbon (CF)

Colour: New Moon Stealth

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.

Members only product.

Sold out

Highlights Grizl:ONfly CF 9

Key features

Responsive, intuitive Bosch power

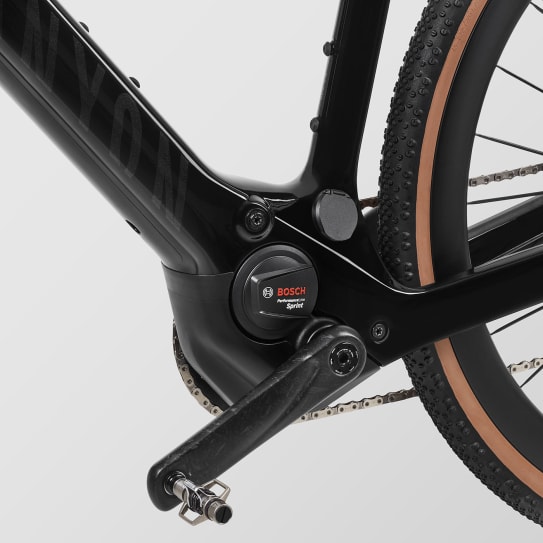

The new lightweight and compact Bosch Performance Line SX Sprint motor packs the support you need to power your wanderlust. By rewarding dynamic and active riding, the system enhances your own efforts with natural and engaging responses. At only 8.8 pounds for the motor and battery, the Grizl:ON is still down to party on the trail. 55 NM peak torque helps you punch up steep pitches, while the 400 Wh battery makes big days out off-grid a reality.

Integrated theft protection plus smart navigation

Theft protection that works, smart route navigation, ride stats and fitness progress, Bosch ConnectModule and Flow App connectivity with your smartphone or Apple Watch makes it easy to get the best out of the Grizl:ON. That means peace of mind when you park up to grab a coffee and run those errands, or detailed turn-by-turn instructions when exploring new places. The full potential of the Grizl:ON, unlocked.

Canyon x Lupine – see and be seen: wherever, whenever

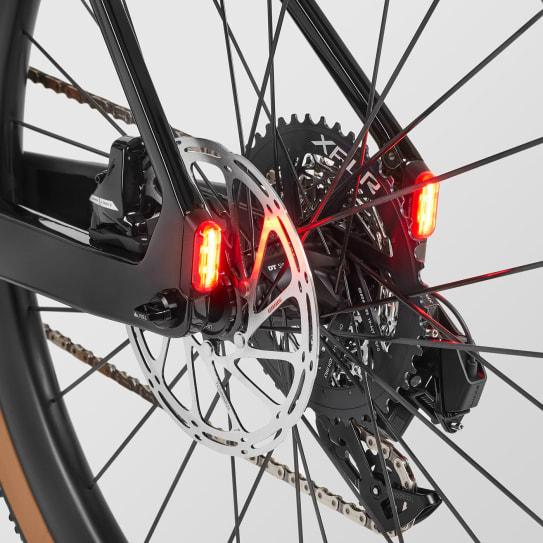

In collaboration with lighting experts Lupine, we’ve created a premium integrated lighting system all powered by the bike’s main Bosch battery. At the rear, the signature Canyon x Lupine SightStays are always on so you’re visible from all angles when flowing through traffic. Up front, the brilliant Lupine Nano SL shines light into the darkest places with an on-bar remote to control beam setting. And so you can always get home seen and safe, the battery reserves another 2 hours of light, even after the motor runs out of juice.

Click & Ride: modular storage in seconds

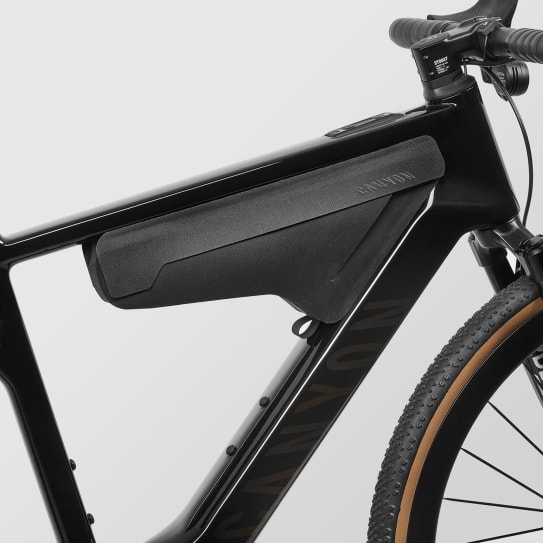

Adventure-ready and hugely versatile, we made it quick and easy to swap out the gear you need for the day’s ride thanks to the Grizl:ON’s simple, rapid Click & Ride System. The PowerMore Range Extender (in-stock Spring 2024), extra storage from the LOAD FidLock Quickloader, an extra bottle, or pared back for shorter rides, it only takes seconds to swap parts out with no tools or straps required.

Components

Content is loading

Frame

Frame
- Canyon Grizl:ON CF
- null null
- null null
- null null
- null null
- null null
Suspension Fork
- FS RCSX RUDY ULT XPLR 40 12x100 44 bk A2
- null null
- null null
- null null
- null null
Seatpost Clamp
- Canyon GP0438-01 Seat Clamp

Drivetrain

Motor
- Performance Line Sprint
Battery
- CompactTube 400
Rear Derailleur
- SRAM Force XPLR AXS, 12-speed
- null null
Chainguard
- Canyon GP0455-01 Chainguide
Cassette
- SRAM Force XPLR XG-1271, 12-speed, 10-44
- null null
- null null
Crank
- FSA CK-703 175mm
- null null
Chainring
- FSA 44T Spider Bosch
Chain
- SRAM Force D1 12s

Brakes

Shift-/ Brake Lever
- SRAM Force ETap AXS
Shift-/ Brake Lever
- SRAM Force eTap AXS
- null null
Brake Rotor
- SRAM Centerline Rounded
- null null
- null null

Wheels

Front Wheel
- DT Swiss HGC1800
- null null
- null null
- null null
- null null
- null null
- null null
Rear Wheel
- DT Swiss HGC1800 XDR
- null null
- null null
- null null
- null null
- null null
- null null
Tyre
- Schwalbe G-One Bite 45mm
- null null
- null null
Thru Axle
- Canyon GP0433-01 Thru Axle
- null null

Cockpit

Stem
- Canyon Stem ST0037
- null null
- null null
Handlebar
- Canyon HB0064 Ergo
- null null
- null null
Handlebar Tape
- Canyon Ergospeed Gel
- null null
- null null

Seat

Saddle
- Fizik Argo Terra X5
- null null
- null null
Seatpost
- Canyon S14 VCLS 2.0 CF
- null null
- null null
- null null
- null null

Light

Lights
- Reflector Set
Lights
- Lupine C14 Tail Light R112 Set
Lights
- Lupine C14 Tail Light R112 Set

Accessories

Battery Charger
- Bosch 4A
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Quick Start Guide Grizl:On
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 172	172 - 178	178 - 184	184 - 189	≥ 189
Seat Height in mm (a)	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873
Seat Tube Length in mm (b)	462	492	522	552	582
Top Tube Length in mm (c)	546	568	578	597	617
Head Tube Length in mm (d)	117	136	156	176	198
Head Tube Angle (e)	69,5°	69,5°	69,5°	69,5°	69,5°
Seat Tube Angle (f)	74°	74°	74°	74°	74°
Chainstay Length in mm (g)	445	445	445	445	445
Wheel Base in mm (h)	1.056	1.080	1.092	1.112	1.134
Stack in mm (i)	574	592	611	630	650
Reach in mm (j)	381	398	403	416	431
Stand-over Height in mm (k)	784	807	832	854	878
Bottom Bracket Offset in mm (l)	72	72	72	72	72
Stack+ in mm	661	679	698	717	737
Reach+ in mm	417	434	439	452	467

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Stem Length in mm	60	60	60	60	60
Handlebar Width in mm	420	440	440	440	460
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	40	40	40	40	40
Battery capacity	400 Wh	400 Wh	400 Wh	400 Wh	400 Wh
Rim height in mm	42	42	42	42	42

Download PDF

Grizl:ONfly CF 9 support

Canyon Top Tube Bag Gravel/MTB

$39.95

-20%

Canyon Drirelease Long Sleeve Shirt

$43.95

Original price ~~$54.95~~

You save $11

-58%

Canyon Leg Warmers

$16.95

Original price ~~$39.95~~

You save $23

Coming soon

Canyon Tire Lever

$6.95

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
