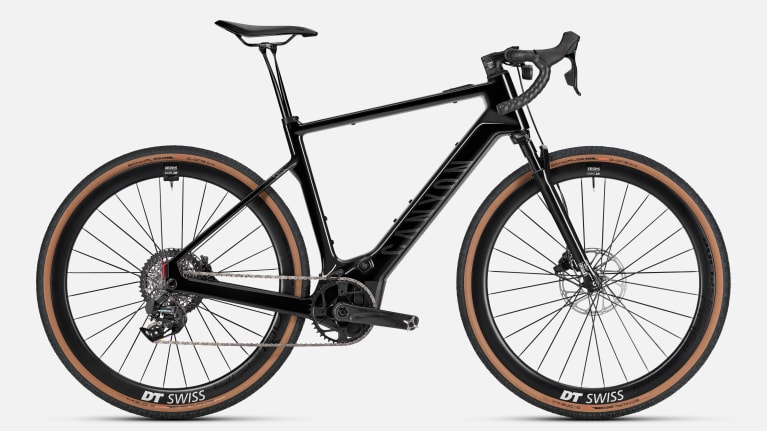

Grizl:ONfly CF 9

Refurbished bike in L

Unlock wild adventures with SRAM wireless shifting, light and strong DT Swiss carbon wheels and the latest Bosch Performance Line Sprint motor technology and its 28 mph support to take you way beyond the city limits.

Weight: 34.27 lbs
Material: Carbon (CF)

Colour: New Moon Stealth

Members only product.

Members only product.

Sold out

Highlights Grizl:ONfly CF 9

Components

Frame

Frame
- Canyon Grizl:ON CF
- Lightweight, strong carbon e-gravel frame. With a laid-back riding position for all-day comfort, and slackened angles for enhanced control.
- Axle dimension: 12x142 mm
- Tyre clearance: 50 mm
- Material: Carbon (CF)
- Weight: 1,620 g
Suspension Fork
- FS RCSX RUDY ULT XPLR 40 12x100 44 bk A2
- Axle dimension: 12x100 mm
- Travel: 40 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Tyre clearance: 50 mm
Seatpost Clamp
- Canyon GP0438-01 Seat Clamp

Drivetrain

Motor
- Performance Line Sprint
Battery
- CompactTube 400
Rear Derailleur
- SRAM Force XPLR AXS, 12-speed
- Weight: 307 g
Chainguard
- Canyon GP0455-01 Chainguide
Cassette
- SRAM Force XPLR XG-1271, 12-speed, 10-44
- Number of sprockets: 12
- Range: 10-44 12S
Crank
- FSA CK-703 175mm
- Number of chainrings: 1
Chainring
- FSA 44T Spider Bosch
Chain
- SRAM Force D1 12s

Brakes

Shift-/ Brake Lever
- SRAM Force ETap AXS
Shift-/ Brake Lever
- SRAM Force eTap AXS
- Weight: 610 g
Brake Rotor
- SRAM Centerline Rounded
- Size: 180 mm
- Weight: 193 g

Wheels

Front Wheel
- DT Swiss HGC1800
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 42 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 888 g
Rear Wheel
- DT Swiss HGC1800 XDR
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 42 mm
- Inner width: 24 mm
- Rim material: Carbon
- Weight: 999 g
Tyre
- Schwalbe G-One Bite 45mm
- Width: 45 mm
- Weight: 540 g
Thru Axle
- Canyon GP0433-01 Thru Axle
- Axle dimension: 12x142 mm

Cockpit

Stem
- Canyon Stem ST0037
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
Handlebar
- Canyon HB0064 Ergo
- Robust aluminium handlebar with flared drops for enhanced off-road control.
- Clamping diameter: 31,8 mm
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: Black

Seat

Saddle
- Fizik Argo Terra X5
- Gender: Unisex
- Weight: 271 g
Seatpost
- Canyon S14 VCLS 2.0 CF
- Material: Carbon
- Setback: -2 mm / 10 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g

Light

Lights
- Reflector Set
Lights
- Lupine C14 Tail Light R112 Set
Lights
- Lupine C14 Tail Light R112 Set

Accessories

Battery Charger
- Bosch 4A
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Shock Pump
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Pedelec Manual 005-V04
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Quick Start Guide Grizl:On
Manuals and Accessories
- Canyon Shock Pump 300 Psi

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 172	172 - 178	178 - 184	184 - 189	≥ 189
Seat Height in mm (a)	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873
Seat Tube Length in mm (b)	462	492	522	552	582
Top Tube Length in mm (c)	546	568	578	597	617
Head Tube Length in mm (d)	117	136	156	176	198
Head Tube Angle (e)	69,5°	69,5°	69,5°	69,5°	69,5°
Seat Tube Angle (f)	74°	74°	74°	74°	74°
Chainstay Length in mm (g)	445	445	445	445	445
Wheel Base in mm (h)	1.056	1.080	1.092	1.112	1.134
Stack in mm (i)	574	592	611	630	650
Reach in mm (j)	381	398	403	416	431
Stand-over Height in mm (k)	784	807	832	854	878
Bottom Bracket Offset in mm (l)	72	72	72	72	72
Stack+ in mm	661	679	698	717	737
Reach+ in mm	417	434	439	452	467

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0	20,0
Stem Length in mm	60	60	60	60	60
Handlebar Width in mm	420	440	440	440	460
Crank Length in mm	170,0	170,0	175,0	175,0	175,0
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107
Wheel Size	28"	28"	28"	28"	28"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	40	40	40	40	40
Battery capacity	400 Wh	400 Wh	400 Wh	400 Wh	400 Wh
Rim height in mm	42	42	42	42	42
