Grail CFR Di2
-
-10%
- CFR- the pinnacle of our carbon frame construction
- Shimano GRX RX825 Di2 12-speed groupset
- Shimano RX820 4iiii Power Meter
- DT Swiss GRC 1100 carbon wheels
-
Weight:
18.21 lbs
Weight is based on a size M frame.
- Material: Carbon (CFR)
-
Colour: Hale-Bopp
-
Members only product. Log in here
-
Financing with PayPal
Financing with Klarna
Financing with Affirm FinancingFinancing available for this product -
-
Get ready-to-ride Delivery
Ready to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Highlights Grail CFR Di2
Pro-proven at Traka
Canyon Factory Racing
The latest, greatest GRX Di2
Canyon Factory Racing goes gravel
Exceeding efficiency

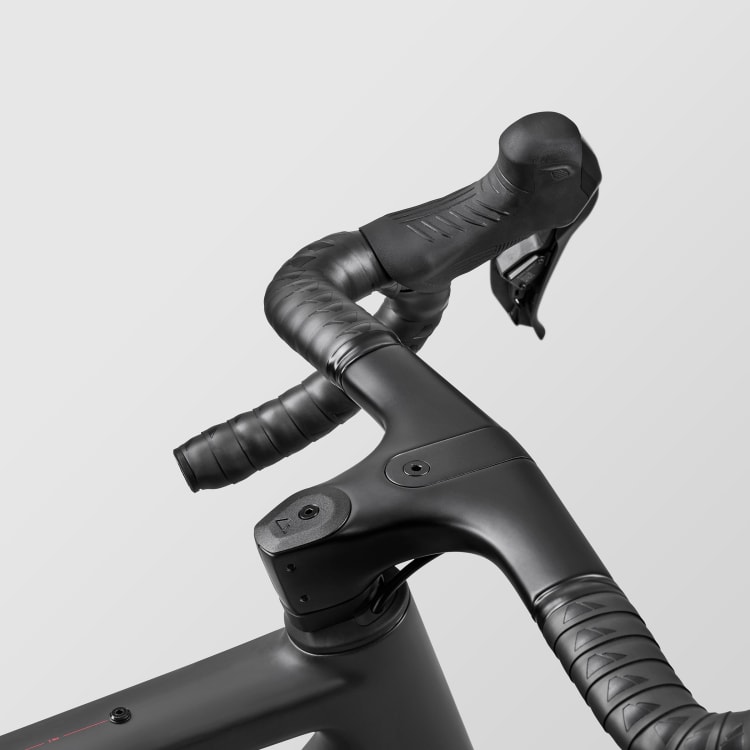

Ergonomic evolution
Get in the groove

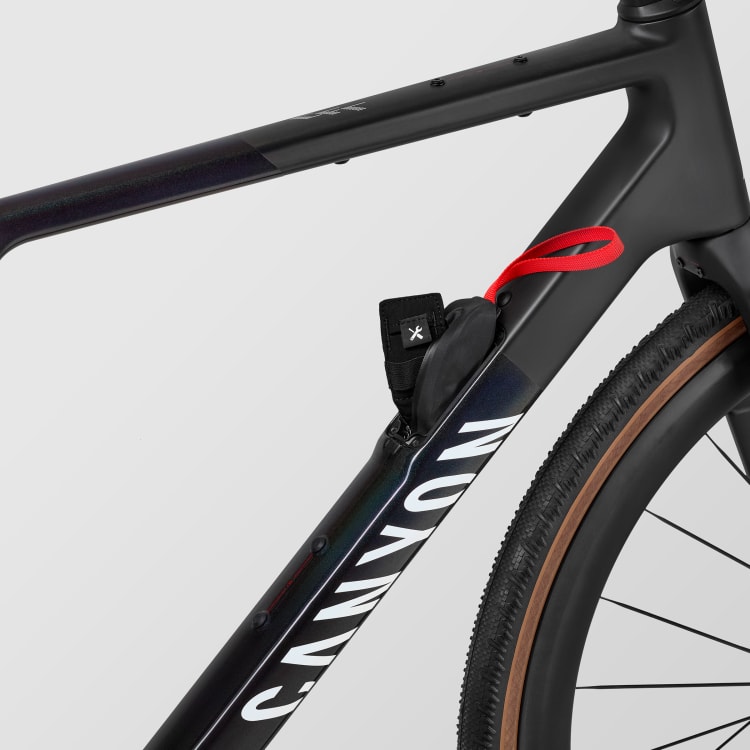

Integrated storage

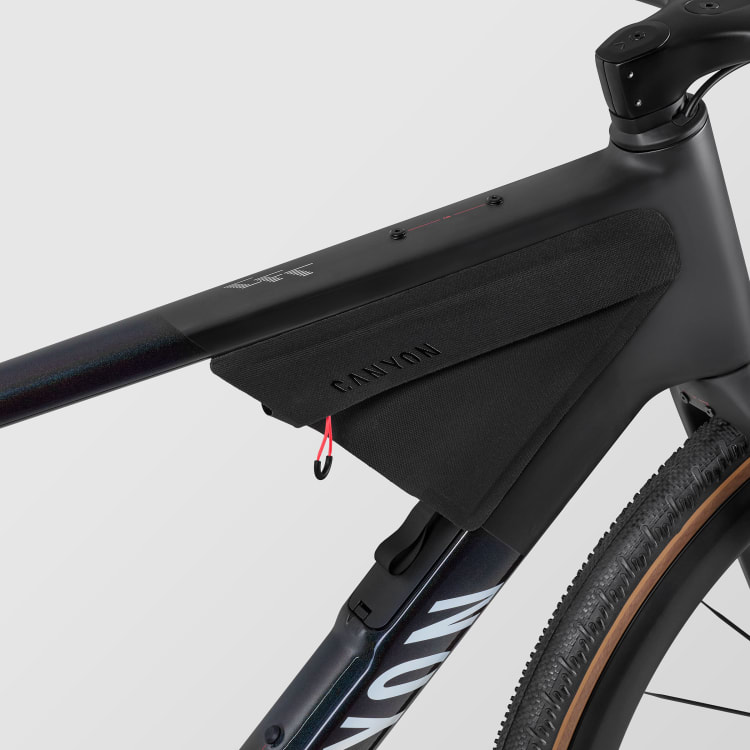

Loaded and locked
Frame
-
Frame
- Canyon Grail CFR
-
null null
-
null null
-
null null
-
null null
-
null null
-
Fork
- Canyon FK0118 CF Disc
-
null null
-
null null
-
null null
-
null null
-
null null
-
null null
-
Seatpost Clamp
- Canyon GP0224-02 Adapter seatstay 7x9
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano GRX Di2 RD-RX825
-
null null
-
Front Derailleur
- Shimano GRX Di2 FD-RX825
-
null null
-
Cassette
- Shimano CS-R8101 11-34 12s
-
null null
-
null null
-
Crank
- 4iiii Shimano RX820
-
null null
-
Bottom bracket
- Token Ninja Lite BB4124
-
null null
-
null null
-
Chain
- Shimano XT
Brakes
-
Shift-/ Brake Lever
- Shimano GRX Di2 Dual Control ST-RX825
-
null null
-
null null
-
Shift-/ Brake Lever
- Shimano GRX Di2 Dual Control ST-RX825
-
null null
-
null null
-
Brake Rotor
- Shimano Deore XT MT800
-
null null
-
null null
Wheels
-
Front Wheel
- DT Swiss GRC 1100
-
null null
-
null null
-
null null
-
null null
-
null null
-
null null
-
Rear Wheel
- DT Swiss GRC 1100
-
null null
-
null null
-
null null
-
null null
-
null null
-
null null
-
Tyre
- Schwalbe G-One RS Evo
-
null null
-
null null
-
Thru Axle
- Canyon Through Axle
-
null null
-
null null
-
Thru Axle
- Canyon Through Axle
-
null null
-
null null
Cockpit
-
Cockpit
- Canyon Cockpit CP0039
-
null null
-
null null
-
null null
-
Handlebar Tape
- Canyon Ergospeed Gel
-
null null
-
null null
Seat
-
Saddle
- Fizik Vento Argo X1
-
null null
-
null null
-
null null
-
Seatpost
- Canyon SP0072
-
null null
-
null null
Light
-
Lights
- Reflector Set
Accessories
-
Workshop
- Canyon FIX Minitool 6+1
-
null null
-
null null
-
null null
-
null null
-
null null
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Smallbox
|
Body Height in cm
|
≤ 166 | 166 - 172 | 172 - 178 | 178 - 184 | 184 - 190 | 190 - 196 | ≥ 196 |
|---|---|---|---|---|---|---|---|
|
Seat Height in mm
(a)
|
623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
|
Seat Tube Length in mm
(b)
|
420 | 450 | 480 | 510 | 540 | 570 | 600 |
|
Top Tube Length in mm
(c)
|
533 | 550 | 564 | 586 | 609 | 623 | 648 |
|
Head Tube Length in mm
(d)
|
123 | 129 | 145 | 163 | 187 | 207 | 230 |
|
Head Tube Angle
(e)
|
69,5° | 71° | 71,5° | 71,5° | 71,5° | 71,8° | 71,8° |
|
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
|
Chainstay Length in mm
(g)
|
425 | 425 | 425 | 425 | 425 | 425 | 425 |
|
Wheel Base in mm
(h)
|
1.021 | 1.024 | 1.034 | 1.057 | 1.080 | 1.092 | 1.118 |
|
Stack in mm
(i)
|
545 | 556 | 573 | 591 | 613 | 633 | 655 |
|
Reach in mm
(j)
|
372 | 385 | 394 | 411 | 427 | 435 | 454 |
|
Stand-over Height in mm
(k)
|
745 | 766 | 789 | 813 | 838 | 863 | 901 |
|
Bottom Bracket Offset in mm
(l)
|
75 | 75 | 75 | 75 | 75 | 75 | 75 |
|
Stack+ in mm
|
625 | 632 | 652 | 669 | 692 | 713 | 735 |
|
Reach+ in mm
|
405 | 420 | 439 | 456 | 472 | 489 | 508 |
|
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 | 20,0 | 20,0 | 20,0 |
|---|---|---|---|---|---|---|---|
|
Cockpit Dimensions in mm
|
60-420 | 60-420 | 70-420 | 70-440 | 70-440 | 80-460 | 80-460 |
|
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 |
|
Chainring Size
|
48/31 | 48/31 | 48/31 | 48/31 | 48/31 | 48/31 | 48/31 |
|
Seat Post Length in mm
|
335 | 335 | 335 | 335 | 335 | 335 | 335 |
|
Maximum Seat Post Insertion Depth in mm
|
180 | 180 | 180 | 180 | 180 | 180 | 180 |
|
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 | 80 | 80 |
|
Wheel Size
|
28" | 28" | 28" | 28" | 28" | 28" | 28" |
|
Disc Size in mm
|
160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
|
Rim height in mm
|
50 | 50 | 50 | 50 | 50 | 50 | 50 |
Bike Of The Year
Design & Innovation Award
Grail CFR Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
⚠︎ WARNING
Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
-
