Aeroad CF SLX 7 Di2

Combining the ultra-efficient, superlight Aeroad CF SLX frame with wind-cheating DT Swiss carbon wheels and Shimano's famous Di2 electronic shifting tech, this aero bike is ready to race.

(55)

Weight: 17.44 lbs
Material: Carbon (CF)

All components

30-day return policy

6 Year Warranty

Product Configuration

Colour:

Dark Forest

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Bike geometry

Sold out

Note: The DT Swiss wheels supplied with this bike have either not been affected by the recent DT Swiss product safety recall or have been inspected and subsequently approved by DT Swiss. For more information, please visit www.dtswiss.com/recall.

Members only product.

Buying reasons

$4,399

Original price ~~$5,199~~

You save $800 (-15%)

Financing available for this product

Sold out

Product added to cart

Go for the latest bike

Highlights Aeroad CF SLX 7 Di2

SLX: dream big

The Aeroad CF SLX is our cutting-edge aero race bike for riders dreaming big. Optimised with more pro input than ever, and stress-tested at the toughest races in the world, it’s the bike that allows you to chase your speed dreams – and fulfil them.

Watch: the Aeroad Evolution

Alex Paton of Global Cycling Network and Lukas Birr, engineer at Canyon, talk through the evolution of the Aeroad, and discuss how this fourth generation model was developed with more pro insight than ever before.

Key features

Components

Details are based on size M

Frame

Fork
- Canyon FK0137 CF Disc
- Aero fork shaped using advanced CFD technology. With hermetically sealed headset and titanium bearing seat for next-level durability and smoothness.
- Axle dimension 12x100 mm
- Fork steer tube diameter 1 1/8"
- Tyre clearance 32 mm
- Material Carbon (CF)
- Weight 401 g
Seatpost Clamp
- Canyon EP2352-01 Saddle Clamp for saddles with 7x7 mm steel rails

Drivetrain

Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano 105 Di2
- Cage length short
- Weight 301 g
Front Derailleur
- Shimano 105 Di2 FD-R7150
- Weight 138 g
Cassette
- Shimano 105 R7101 11-34 12s
- Number of sprockets 12
- Range 11-34
Crank
- Shimano 105 R7100 4iiii Precision Powermeter 3
- Number of chainrings 2
- Weight 796 g
- Crank Length in mm

  2XS 165,0

  XS - S 170,0

  M - L 172,5

  XL - 2XL 175,0
- Chainring size 52/36
Bottom bracket
- Token Ninja Lite BB4124
- Bottom bracket standard PF 86,5
- Weight 85 g
Chain
- Shimano CN-M7100 12s

Brakes

Shift-/ Brake Lever
- Shimano 105 R7170 Di2
- Number of pistons 2
- Weight 388 g
Shift-/ Brake Lever
- Shimano 105 R7170 Di2
- Number of pistons 2
- Weight 387 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Weight 95 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Weight 112 g
- Disc Size in mm
- 2XS - XS 140 / 140

  S - L 160 / 140

  XL - 2XL 160 / 160

Wheels

Front Wheel
- DT Swiss ARC 1600 Dicut
- Axle dimension 12x100 mm
- Rotor mount Center Lock
- Rim height 50 mm
- Inner width 20 mm
- Rim material Carbon
- Weight 725 g
Rear Wheel
- DT Swiss ARC 1600 Dicut
- Axle dimension 12x142 mm
- Rotor mount Center Lock
- Rim height 50 mm
- Inner width 20 mm
- Rim material Carbon
- Weight 919 g
- Wheel Size
- 28"
Tyre
- Continental GP 5000 S TR
- Width 25 mm
- Weight 246 g
Tyre
- Continental GP 5000 S TR
- Width 28 mm
- Weight 283 g
Thru Axle
- DT Swiss Through Axle
- Axle dimension 12x142 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension 12x100 mm

Cockpit

Cockpit
- CP0048
- One-piece carbon cockpit with interchangeable drops, and 20 mm height and 50 mm width adjustment with no cutting required.
- Material Carbon (CF)
- Weight 223 g
- Cockpit Dimensions in mm

  2XS 80 - [370-420]

  XS - S 90 - [370-420]

  M 100 - [370-420]

  L - XL 110 - [370-420]

  2XL 120 - [370-420]
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color Black

Seat

Saddle
- Selle Italia SLR Boost Superflow S saddle
- Width: 130 mm
- Gender Unisex
- Weight 181 g
Seatpost
- Canyon SP0077
- Easy-adjust carbon seatpost. With a new clamp allowing independent setback and tilt adjustment.
- Setback 10 mm
- Material Carbon (CF)
- Weight 160 g
- Seat Post Length in mm
- 2XS 275

  XS - 2XL 301
- Maximum Seat Post Insertion Depth in mm
- 2XS 141

  XS - 2XL 166
- Minimum Seat Post Insertion Depth in mm
- 66

Accessories

Pedals
- None included
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Reflector Set
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Aeroad Quickstartguide
Manuals and Accessories
- Canyon Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table
Frame size
Body Height in cm	≤ 166	166 - 172	172 - 178	178 - 184	184 - 190	190 - 196	≥ 196
a Seat Height in mm	623 - 698	654 - 754	684 - 784	714 - 814	744 - 844	774 - 874	804 - 904
b Seat Tube Length in mm	441	471	501	531	561	591	621
c Top Tube Length in mm	520	532	549	559	572	598	613
d Head Tube Length in mm	88	107	121	142	162	188	206
e Head Tube Angle	70°	71,2°	72,8°	73,25°	73,3°	73,5°	73,8°
f Seat Tube Angle	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
g Chainstay Length in mm	410	410	410	410	413	415	415
h Wheel Base in mm	975	979	982	988	1.003	1.029	1.042
i Stack in mm	498	520	539	560	580	606	624
j Reach in mm	372	378	390	393	401	419	429
k Stand-over Height in mm	720	748	775	801	828	851	874
l Bottom Bracket Offset in mm	70	70	70	70	70	70	70
o Effective stack: Vertical distance between the bottom bracket and the hand position Learn more	587	608	622	642	663	688	706
p Effective reach: Horizontal distance between the bottom bracket and the hand position Learn more	517	535	549	563	580	598	619

Download PDF

Content is loading

Gear up your ride

Content is loading

Aeroad CF SLX 7 Di2 support

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.

Content is loading

Aeroad CF SLX 7 Di2

Colour:

Select frame size

Highlights Aeroad CF SLX 7 Di2

SLX: dream big

Watch: the Aeroad Evolution

Key features

Peloton performance

PACE - Performance Adaptive Cockpit Ecosystem

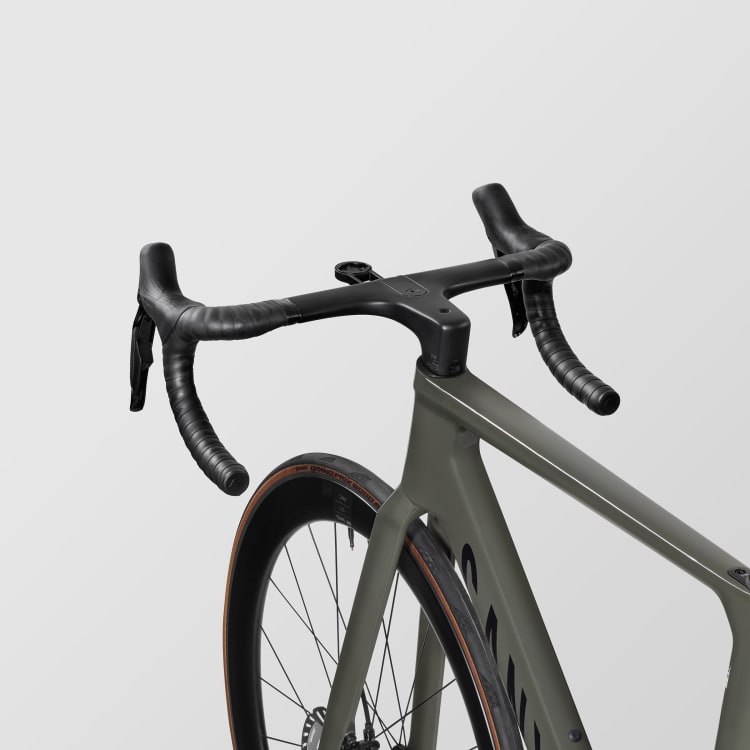

A versatile, adjustable carbon cockpit

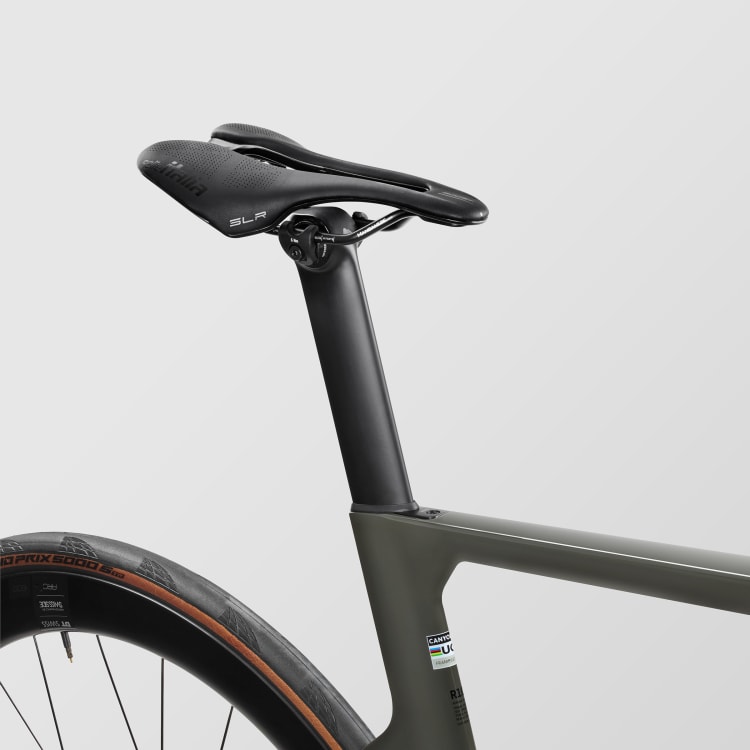

The benchmark of aero seatpost design

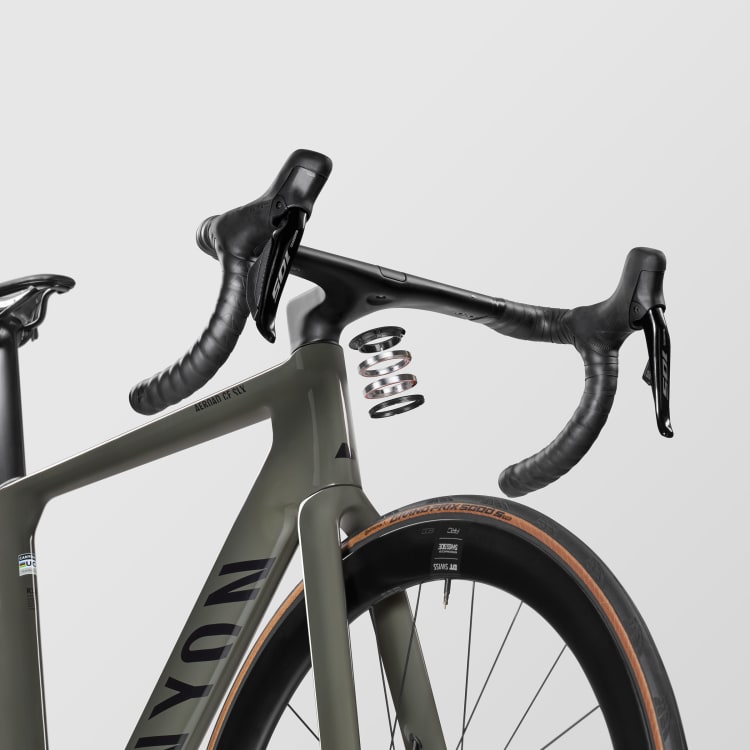

Minimal maintenance headset bearings

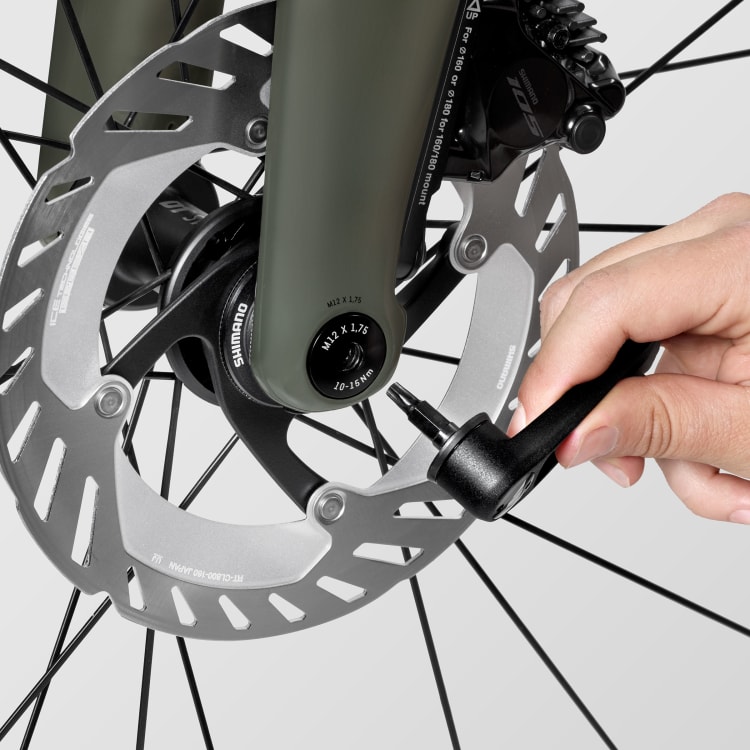

An integrated tool for adjustments on the go
