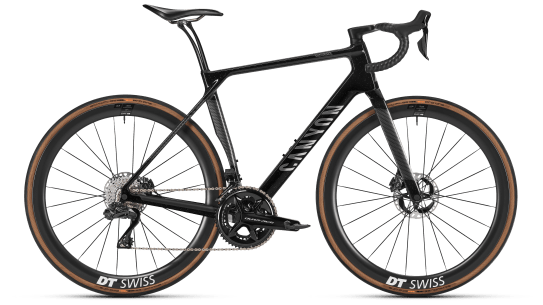

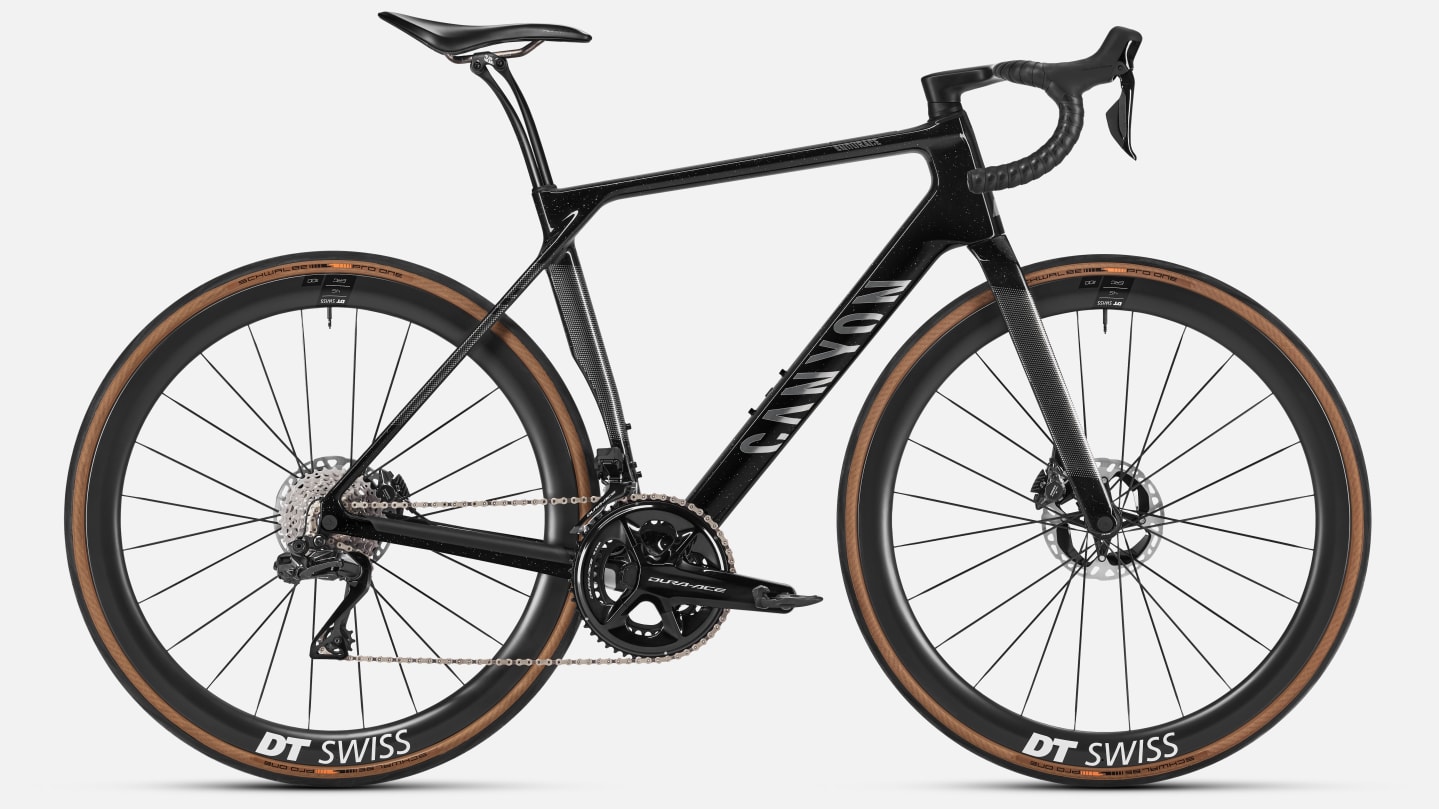

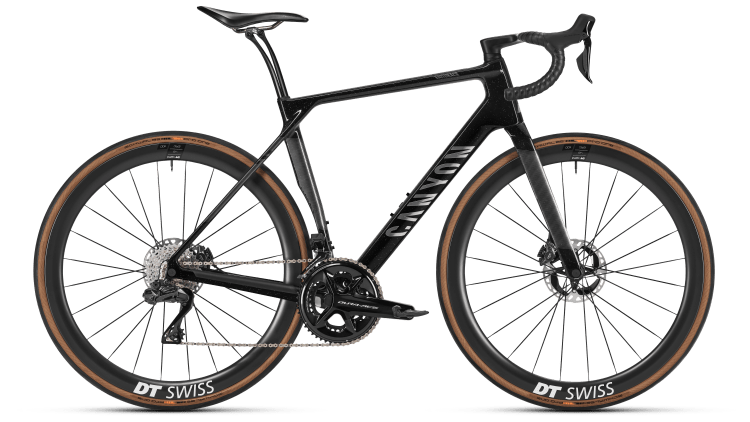

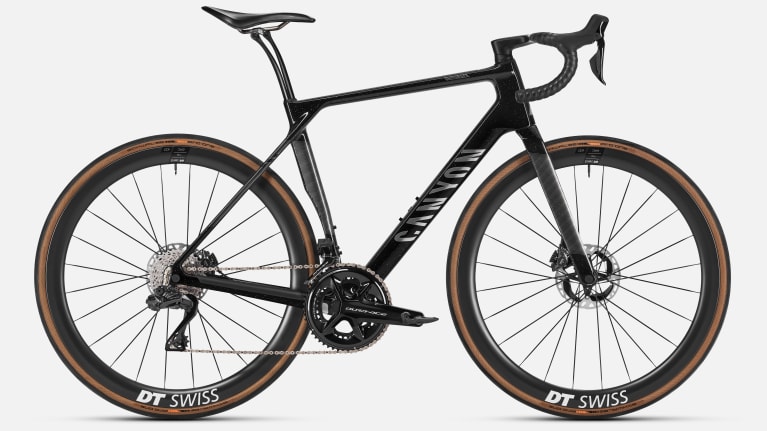

Endurace CFR Di2
- Material: Carbon (CFR)
-
Weight:
16.14 lbs
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
Financing with PayPalFinancing with Affirm FinancingFinancing available for this product
-
-
Stress free New Bike DayOur most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.
How to choose New Bike DayGet ready-to-ride DeliveryReady to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Highlights Endurace CFR Di2

World Tour speed. Real-world conditions.

The perfect ride
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda
Canyon Factory Racing
CFR: world-class carbon

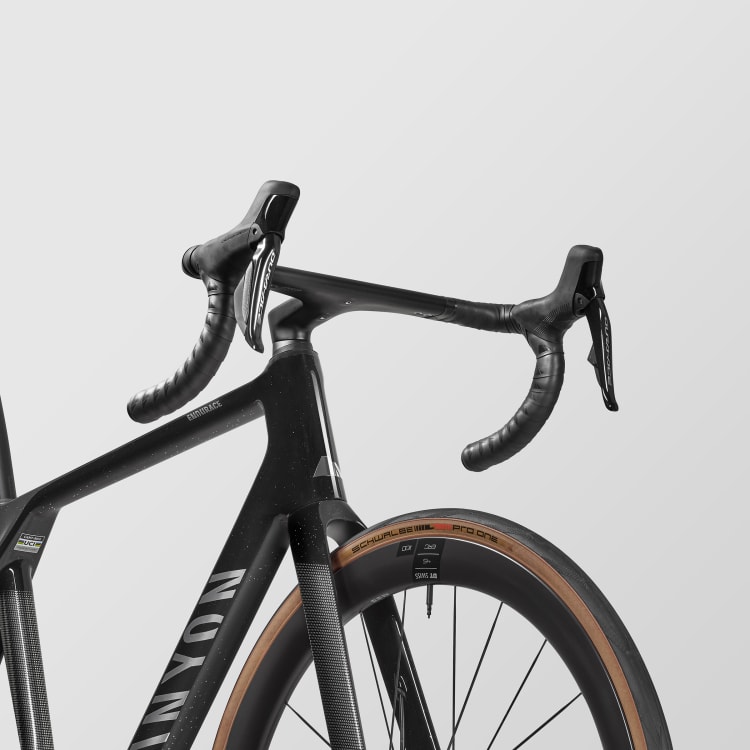

An aerodynamic, easily adjustable carbon cockpit

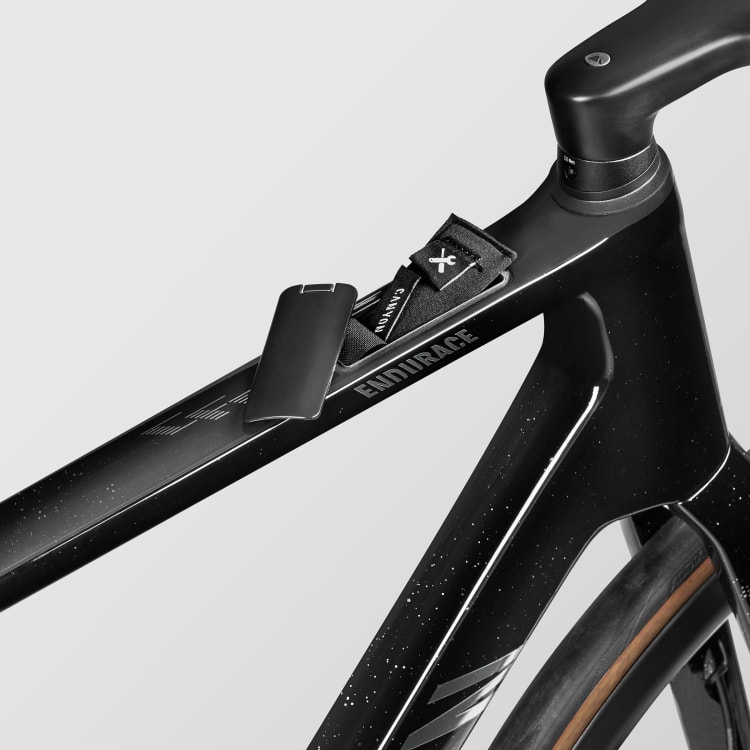

Ride-saving tools at your fingertips

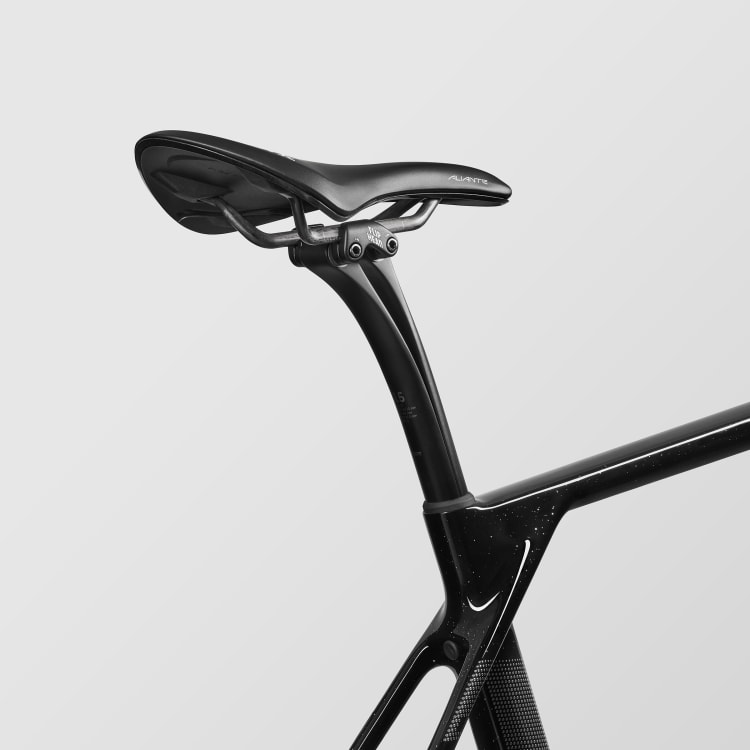

The benchmark of carbon seatpost design
Frame
-
Frame
- Canyon Endurace CFR

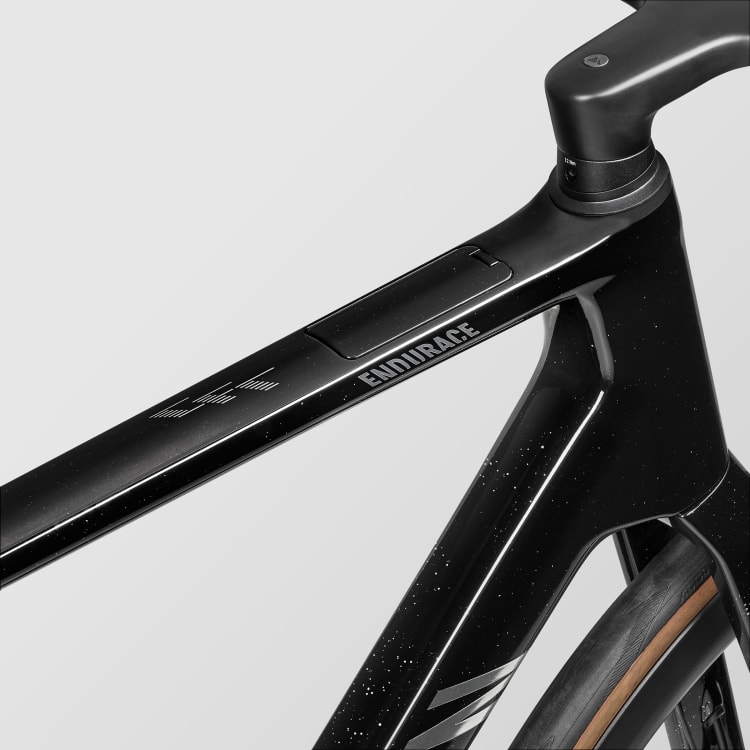

- Superlight endurance frame. Crafted from the highest grades of carbon to deliver benchmark stiffness-to-weight. Featuring internal LOAD top tube storage.
- Axle dimension: 12x142 mm
- Tyre clearance: 35 mm
- Material: Carbon (CFR)
- Weight: 1,123 g
-
Fork
- Canyon FK0128 Disc
- Superlight carbon fork, engineered for maximum stiffness-to-weight and compliance.
- Axle dimension: 12x100 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 980 g
Drivetrain
-
Battery
- Shimano BT-DN300 Di2 Battery
-
Rear Derailleur
- Shimano Dura-Ace Di2 RD-R9250, 12-speed
- Cage length: medium
- Weight: 256 g
-
Front Derailleur
- Shimano Dura-Ace Di2 FD-R9250
- Weight: 96 g
-
Cassette
- Shimano Dura-Ace R9200, 12-speed, 11-34
- Number of sprockets: 12
- Range: 11-34
-
Crank
- Shimano Dura-Ace Di2 Powermeter 172.5mm
- Number of chainrings: 2
-
Bottom bracket
- Shimano Pressfit BB92
- Bottom bracket standard: PF 86,5
- Weight: 55 g
-
Chain
- Shimano XTR
Brakes
-
Brake
- Shimano Flat Mount Adapter +20mm
-
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 R9270, 12-speed
- Number of pistons: 2
- Weight: 330 g
-
Shift-/ Brake Lever
- SBL SHIM R9270 1300 LF160 FM JKITD FIN F
- Weight: 415 g
-
Brake Rotor
- Shimano XTR RT-MT900
- Size: 160 mm
- Weight: 106 g
Wheels
-
Front Wheel
- DT Swiss ERC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Inner width: 22 mm
- Rim material: Carbon
- Weight: 663 g
-
Rear Wheel
- DT Swiss ERC 1100 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Inner width: 22 mm
- Rim material: Carbon
- Weight: 786 g
-
Tyre
- Schwalbe Pro One TLE, 30mm
- Width: 30 mm
- Weight: 335 g
-
Tyre
- Schwalbe Pro One TLE, 32mm
- Width: 32 mm
- Weight: 345 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit
- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Tempo Aliante R1 145mm
- Gender: Unisex
- Weight: 183 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Seatpost diameter: 27,2 mm
- Material: Carbon (CF)
- Weight: 247 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Endurace Quick Start Guide
-
Manuals and Accessories
- CAYN SMALL BOX 2.0
Body Height in cm
|
≤ 159 | 159 - 165 | 165 - 171 | 171 - 178 | 178 - 185 | 185 - 192 | 192 - 198 | ≥ 198 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
509 | 519 | 540 | 551 | 561 | 576 | 602 | 617 |
Head Tube Length in mm
(d)
|
123 | 138 | 129 | 146 | 165 | 186 | 212 | 232 |
Head Tube Angle
(e)
|
70,3° | 71,5° | 70,8° | 71,8° | 72,75° | 73° | 73,3° | 73,3° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
959 | 958 | 991 | 993 | 993 | 1.006 | 1.029 | 1.044 |
Stack in mm
(i)
|
510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
Reach in mm
(j)
|
350 | 354 | 370 | 375 | 378 | 387 | 405 | 415 |
Stand-over Height in mm
(k)
|
708 | 734 | 763 | 788 | 815 | 840 | 867 | 891 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
591 | 609 | 630 | 649 | 669 | 691 | 717 | 737 |
Reach+ in mm
|
398 | 412 | 428 | 443 | 453 | 472 | 490 | 510 |
Spacer in mm
|
15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 | 15,0 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
70-390 | 80-390 | 80-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
-
2024Bike Of The YearIn addition to an optimized frameset, the Endurace is characterized by excellent compliance and a geometry that is tailor-made for long distances.Bike Of The YearIn addition to an optimized frameset, the Endurace is characterized by excellent compliance and a geometry that is tailor-made for long distances.
Endurace CFR Di2 support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
Proposition 65 Warning
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
