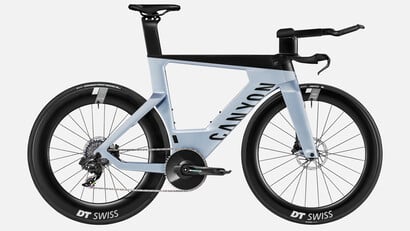

Speedmax CF SLX 8 AXS

Fast, aerodynamic, comfortable – we developed the Speedmax to meet the demands of the world’s top triathletes. Dial in your perfect fit and take your PRs to a new level. Featuring SRAM's wireless Force eTap AXS shifting and DT Swiss carbon wheels.

Colour: Arctic Grey

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

Custom spec for size XS bikes: for optimal riding dynamics, size XS bikes use 27,5” DT Swiss ARC wheels with 50mm rims and different high-performance Continental tube-type tyres.

Members only product.

Sold out

Highlights Speedmax CF SLX 8 AXS

Speedmax CF SLX

The best. Better.

Jan Frodeno. Canyon Bicycles. The partnership that changed triathlon forever. We first joined forces in 2015: the top engineers in the industry, collaborating with the greatest triathlete of all time, united by the same goal. To take the best bike, to be the best athlete – and never stop levelling up. The result? The Speedmax, the benchmark triathlon bike on the planet today.

Canyon Engineered Perfection

The Speedmax CF SLX represents the bleeding edge of bike design in modern triathlon. Inheriting the same sophisticated, race-inspired integrations and storage solutions as the flagship Speedmax CFR and featuring one of the most adjustable cockpits around, this is the most advanced bike on the scene.

Key features

Adjustable cockpit

This highly adjustable, high-end cockpit comes supplied with a fitting kit, so you can adjust your fit to perfection. The premium grips deliver performance, comfort, and aesthetics in equal measure, damping vibrations and giving you plenty hand grip in wet and dry conditions alike.

An aerodynamic integrated hydration system

Stay hydrated easily: access your drink without removing your hands from the bar or changing your riding position. Developed in collaboration with Hydrapak, this hydration system is perfectly integrated into the downtube, creating zero additional drag. The system consists of a hydration bladder, a drinking tube, and bite valve.

Bento Box

In triathlon, having quick and easy access to your nutrition is key. That’s why we place a hard-shell Bento box on the tope tube, right at your fingertips. Equipped with hinged lid for optimum durability and ease-of-use, this is the ideal place for storing your gels and bars.

Simple tool storage: bottom bracket box

Smartly integrated into the bottom bracket area, the BB Toolbox actually increases the bike’s frame stiffness thanks to its double-walled design. The toolkit comes equipped with a replacement tube, two tyre levers and a CO2 pump, and there’s space for 2 additional CO2 cartridges. The sliding cover is simple to use and looks super-clean too.

Components

Content is loading

Frame

Frame
- Canyon Speedmax CF SLX Disc
- null null
- null null
- null null
- null null
- null null
Fork
- Canyon FK0080 CF Disc
- null null
- null null
- null null
- null null
- null null
- null null
Seatpost Clamp
- Canyon Seatclamp for S31/S32
Seatpost Clamp
- Canyon GP0209-01 Seatclamp

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Force AXS RD 12s
- null null
Shift Lever
- AXS Wireless Blips
- null null
Cassette
- SRAM Force XG-1270 12s 10-33T
- null null
- null null
Crank
- SRAM Force AXS Power Meter
- null null
Bottom bracket
- SRAM DUB Pressfit
- null null
- null null
Chain
- SRAM Force D1 12s

Brakes

Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- null null
- null null
Shift-/ Brake Lever
- SRAM S-900 Aero HRD
- null null
Brake Rotor
- SRAM Paceline
- null null
- null null

Wheels

Front Wheel
- DT Swiss ARC 1400 Dicut
- null null
- null null
- null null
- null null
- null null
- null null
Rear Wheel
- DT Swiss ARC 1400 Dicut, XDR
- null null
- null null
- null null
- null null
- null null
Tyre
- Continental Grand Prix 5000 S TR, 28mm
- null null
- null null
Tyre
- Continental Aero 111
- null null
- null null
Thru Axle
- DT Swiss Through Axle
- null null
Thru Axle
- DT Swiss Through Axle
- null null

Cockpit

Cockpit
- Canyon CP0019 Triathlon Flatbar short
- null null
- null null
- null null
- null null
Aero Bar
- Canyon GP0226 Aerobar
- null null

Seat

Saddle
- Selle Italia Watt Superflow
- null null
- null null
Seatpost
- Canyon SP0049 Aero Seatpost
- null null
- null null
- null null

Light

Lights
- Reflector Set

Accessories

Hydration Packs
- Canyon X Hydrapak Speedmax H2O Reservoir
Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Manual Speedmax CFR/CF SLX
Manuals and Accessories
- Smallbox

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 170	170 - 178	178 - 186	186 - 196	≥ 196
Seat Height in mm (a)	621 - 741	664 - 784	735 - 855	775 - 895	799 - 919
Seat Tube Length in mm (b)	488	531	552	592	616
Top Tube Length in mm (c)	466	494	519	548	576
Head Tube Length in mm (d)	64	62	83	123	150
Head Tube Angle (e)	72°	73°	73°	73°	73°
Seat Tube Angle (f)	80,5°	80,5°	80,5°	80,37°	80,5°
Chainstay Length in mm (g)	410	420	420	420	420
Wheel Base in mm (h)	960	986	1.014	1.047	1.079
Stack in mm (i)	435	469	489	527	553
Reach in mm (j)	393	415	438	459	483
Stand-over Height in mm (k)	759	797	817	857	881
Bottom Bracket Offset in mm (l)	52	72	72	72	72
Armpad Stack in mm (m)	528 - 638	561 - 671	581 - 691	619 - 729	644 - 754
Armpad Reach in mm (n)	363 - 417	386 - 440	408 - 463	430 - 484	454 - 508

Component geometry

Detailed geometry table

Spacer in mm	110	110	110	110	110
Cockpit Dimensions in mm	70-400	70-400	70-400	70-400	70-400
Crank Length in mm	165,0	165,0	170,0	170,0	172,5
Chainring Size	50	50	50	50	50
Seat Post Length in mm	285	285	335	335	335
Maximum Seat Post Insertion Depth in mm	200	200	200	200	200
Minimum Seat Post Insertion Depth in mm	80	80	80	80	80
Wheel Size	27.5"	28"	28"	28"	28"
Disc Size in mm	140 / 140	160 / 160	160 / 160	160 / 160	160 / 160
Rim height in mm	50	80	80	80	80

Download PDF

Speedmax CF SLX 8 AXS support

Canyon Tempr CFR Road Cycling Shoes

$329.95

Canyon X Hydrapak Speedmax H₂O Reservoir

$49.95

-50%

Canyon Women's Signature Pro Windproof Cycling Jacket

$84.95

Original price ~~$169.95~~

You save $85

-22%

Canyon Organic Cotton Pullover

$46.95

Original price ~~$59.95~~

You save $13

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
