Neuron CF 9

Name: Neuron CF 9
Brand: Canyon
Price: 7049.00 CAD
Availability: InStock
Rating: 5 (6 reviews)

C$ 7,049

Plan longer adventures and rip around you local trails on the do-it-all Neuron CF 9 with its lightweight carbon frame and wireless SRAM transmission.

Front Fork Travel: 140 mm
Weight: 13.56 kg

Weight

Weight is based on a size medium frame.

Reviews (6)

Press and awards (1)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Members only product.

Free Shipping & Free Bike Guard

C$ 7,049

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Not included:

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Ready to ride delivery with velofix DIRECT

With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more

Delivery: Select frame size

Highlights Neuron CF 9

Adventure awaits

Everyday escapes

Define your own adventure with an all-rounder that was built to escape. Choose balanced geometry, efficient performance, and a durable frame.

A Welsh epic

See how Vedangi Kulkarni plotted her adventure across North Wales on singletrack trails and gravel paths with her Neuron. Learn more

A masterpiece in raw carbon

Experience the refined elegance of this bike’s premium stealth artwork, designed to showcase its advanced unidirectional carbon structure. By revealing the intricate carbon layup, we’ve reduced weight and created a distinctive, textured aesthetic.

Key features

Intuitive handling

The Neuron impresses with its intuitive handling and inspires you to confidently set off for new horizons. It sits quietly on the trail and smoothly insulates you from impacts so you can go with the flow.

Geometry & wheels

Stability and control in technical terrain and on trails, a capable and confidence inspiring geometry for the Neuron on 29er Wheels (M- XL) and smaller wheels for smaller riders (650B on XS and S):66° Head Tube angle, 76° Seat Tube Angle, 455mm Reach (Size M). For more details check out the geometry table.

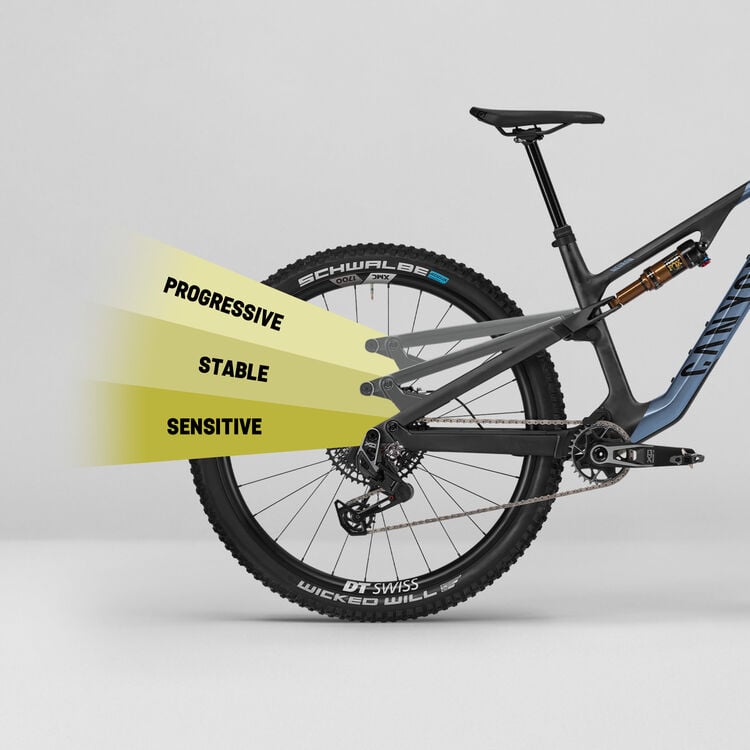

Triple Phase Suspension

The Neuron AL is equipped with Triple Phase Suspension that ensures optimal control during your ride. The leverage curve features small bump sensitivity at the start for incredible traction. Mid-stroke stability delivers speed and momentum to push through compressions and jump over features. On bigger hits, the suspension ramps up progressively to avoid bottoming out making for an overall smoother and more comfortable ride.

Integrated chainstay protection and chain guide

Thanks to the integrated chain guide, your chain will stay secure while riding tough trails, giving you peace of mind while you focus on the ride. The bike also boasts a chainstay protector that eliminates annoying chain slap noises while protecting the rear triangle. The noise-dampening rubber compound of the chainstay protector reduces unnecessary noise while riding. Both the guide and protectors are adjustable to suit various chainring sizes ranging from 28-34T for greater flexibility depending on your ride style.

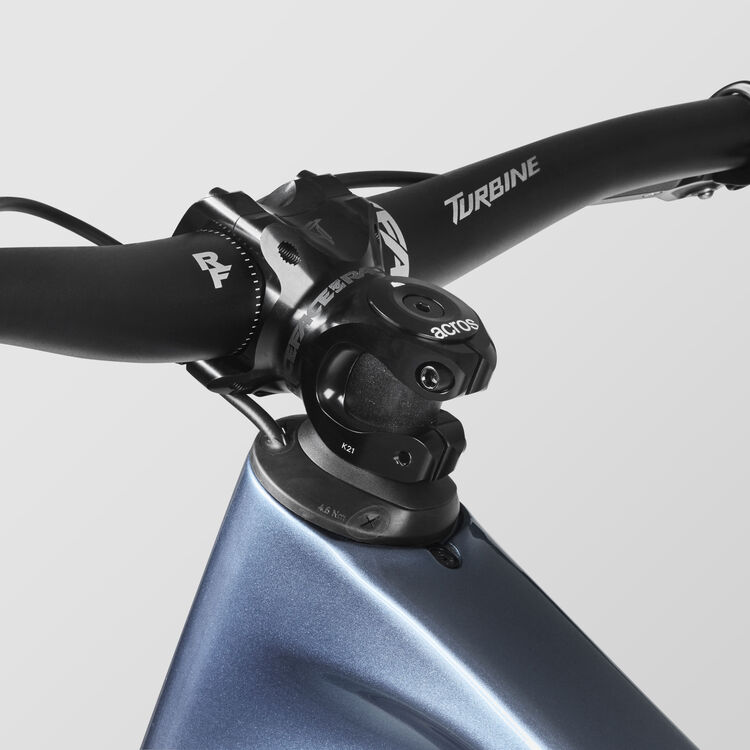

Clean and simple internal cable routing

The Neuron CF has been designed with clean and simple internal cable routing, providing a sleek and tidy look. However, it isn't just about aesthetics as pre-installed internal guides make cable installation a breeze. Pushing the cable through the guides makes installation quick and straightforward. The design minimizes any internal bending and protects the cables from debris and mud. Additionally, all entry points have been expertly sealed, providing extra protection from dirt and grime during rides.

Ready to drop

All Neuron bikes come with a dropper post as standard letting you thread the needle on technical trails. In 2023 we shrank the seat tube by 20 mm, allowing you to run longer-travel dropper posts so that all riders can get their saddle low and well out of the way.

Quick-release through axle

With the Quixle through-axle system, the Neuron AL provides riders with the best of both worlds. The Quixle delivers the stiffness and improved handling of a through axle setup while also providing the easy removal and install of a quick release. The handle tucks away neatly for tool-free removal, adding to its versatility and making it an ideal choice for those who prioritize speed and convenience.

Accessories shown here are sold separately. Buy the products here.

Stored and secure

Pack some essential tools or extra snacks for your ride with the Canyon Load Bag that mounts directly to the frame.

Components

Content is loading

Frame

Frame
- Canyon Neuron
- Superlight carbon full-suspension MTB frame featuring a balanced geometry which combines trail capability with all-day comfort.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,460 g
Rear Shock
- FOX Float Factory

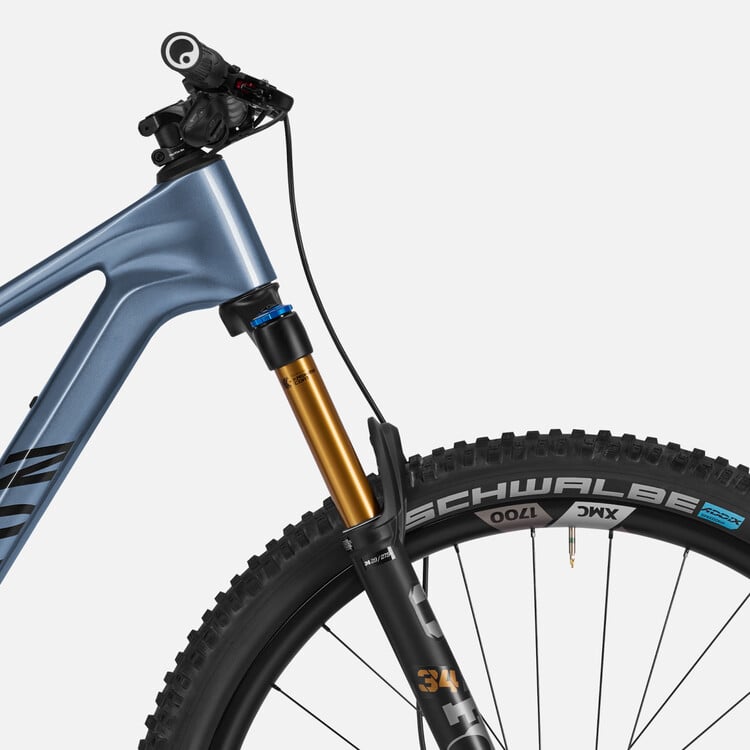

Suspension Fork
- Fox 34 Factory
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 140 mm
- Fork steer tube diameter: 1 1/8" - 1,5"

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM X0 Eagle AXS Transmission
- Weight: 445 g
Chainguard
- Canyon EP1538-01 Chain Guide
Shift Lever
- SRAM AXS Pod
- Weight: 67 g
Cassette
- SRAM XS-1275
- Number of sprockets: 12
- Range: 10-52
Crank
- SRAM X0 crank
- Number of chainrings: 1
Bottom bracket
- SRAM DUB BSA
- Bottom bracket standard: BSA 73
- Weight: 78 g
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- SRAM Code Silver Stealth
- Number of pistons: 4
Disc Brake
- SRAM Code Silver Stealth
- Number of pistons: 4
Brake Rotor
- SRAM HS2 Rounded
- Size: 180 mm
- Weight: 212 g

Wheels

Front Wheel
- DT Swiss XMC1700
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 843 g
Rear Wheel
- DT Swiss XMC 1700 Spline
- Axle dimension: 12x148 mm
Tyre
- Schwalbe Nobby Nic
- Width: 2.4"
- Weight: 836 g
Tyre
- Schwalbe Wicked Will
- Width: 2.4"
- Weight: 890 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- Race Face Turbine R
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
Handlebar
- Race Face Turbine
- Clamping diameter: 35,0 mm
- Width: 760 mm
- Rise: 20 mm
Grips
- Ergon GE10 Evo Slim

Seat

Saddle
- Ergon SM10 Enduro
- Gender: Unisex
- Weight: 314 g
Seatpost
- Canyon G5
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 534 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- QSG 001-V02 MTB generic
Manuals and Accessories
- Quickstart Guide Neuron CF
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 168	163 - 177	172 - 185	180 - 194	≥ 189
Seat Height in mm (a)	630 - 765	650 - 775	685 - 810	750 - 875	790 - 915
Seat Tube Length in mm (b)	390	390	425	460	500
Top Tube Length in mm (c)	556	579	611	639	674
Head Tube Length in mm (d)	90	100	110	125	143
Head Tube Angle (e)	66°	66°	66°	66°	66°
Seat Tube Angle (f)	76°	76°	76°	76°	76°
Chainstay Length in mm (g)	430	430	440	440	440
Wheel Base in mm (h)	1.139	1.164	1.203	1.234	1.271
Stack in mm (i)	587	596	626	639	656
Reach in mm (j)	410	430	455	480	510
Stand-over Height in mm (k)	756	759	777	783	790
Bottom Bracket Offset in mm (l)	18	18	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15	15
Stem Length in mm	50	50	50	50	50
Handlebar Width in mm	760	760	760	760	760
Crank Length in mm	165,0	165,0	170,0	170,0	170,0
Chainring Size	30	30	30	30	30
Seat Post Diameter in mm	30,9	30,9	30,9	30,9	30,9
Dropper post travel in mm	150	170	170	200	200
Seat Post Length in mm	417	457	457	517	517
Maximum Seat Post Insertion Depth in mm	225	245	245	275	275
Minimum Seat Post Insertion Depth in mm	90	120	120	150	150
Wheel Size	29"	29"	29"	29"	29"
Disc Size in mm	180 / 180	180 / 180	180 / 180	180 / 180	180 / 180
Front Fork Travel in mm	140	140	140	140	140
Rear Suspension Travel in mm	130	130	130	130	130
Fitting Length	190X45	190X45	210X50	210X50	210X50

Download PDF

Press and awards

2024

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Bike Of The Year

The Neuron is rightly a real all-time favorite.

Content is loading

Neuron CF 9 support

Canyon Bikestand

C$ 81.95

Weather-ready

Canyon PocketLight Rain Jacket Loose Fit

C$ 279.95

Canyon MTB Pants

C$ 199.95

Canyon Men's Hooded MTB Jersey

C$ 109.95

Dynamic Slick Wax

C$ 17.95

-27%

Canyon Sideloader Carbon Bottle Cage

From C$ 34.95

Original price ~~C$ 47.95~~

Save up to C$ 13

-33%

Canyon Mid Cycling Socks

C$ 13.95

Original price ~~C$ 20.95~~

You save C$ 7

Canyon Undershorts with D3O Protector

C$ 95.95

Bike classification

This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
