Road Bikes Endurance Endurace CFR

Endurace CFR AXS

Name: Endurace CFR AXS
Brand: Canyon
Price: 8149.00 EUR
Availability: InStock
Rating: 5 (1 reviews)

8.149 €

CFR- the pinnacle of our carbon frame construction
SRAM Red AXS wireless shifting
SRAM Red Power Meter
DT Swiss ERC 1100 carbon wheels

Material: Carbon (CFR)
Weight: 7.3 kg

Weight

Weight is based on a size medium frame.

Reviews (1)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Delivery: Select frame size

Note: The DT Swiss wheels supplied with this bike have either not been affected by the recent DT Swiss product safety recall or have been inspected and subsequently approved by DT Swiss. For more information, please visit www.dtswiss.com/recall.

Members only product.

8.149 €

Delivery: Select frame size

Select frame size

Additional information

Current delivery times information. Read more

Included:

Not included:

Shipping & Packaging

Financing with Cetelem

Cetelem offers flexible monthly payments with a fixed interest rate
Calculate amount

Financing with Splitit

No credit checks, 0% interest. Pay monthly for your order with your existing credit card.
Calculate amount
Stress free New Bike Day

Our most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.

How to choose New Bike Day

Collect & Ride

Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.

How to choose Collect & Ride
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Worried about maintaining your new bike? We have over 300 service locations making regular servicing quick and easy.

Learn more

Delivery: Select frame size

Highlights Endurace CFR AXS

Further Faster

Canyon Factory Racing

Canyon Factory Racing (CFR) is our advanced development programme, a relentless push for the next level of ride performance. We combine meticulous German engineering with a ‘no compromises’ approach to innovation. The result? Bikes that win.

Key features

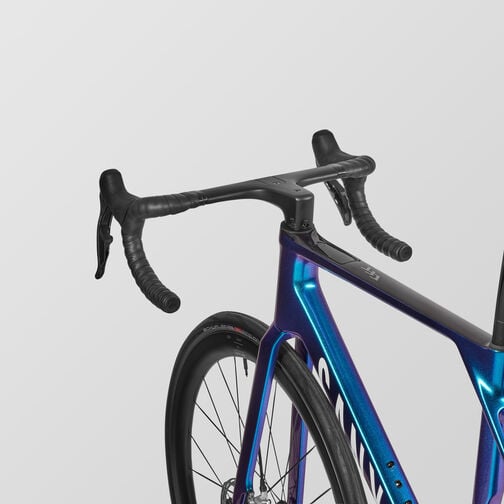

PACE - Performance Adaptive Cockpit Ecosystem

From more upright and comfortable to low and aero, switch between cockpit setups in minutes using the Endurace’s interchangeable drops. As standard, the Endurace uses the more balanced Classic Drops – with narrower Aero Drops available as an aftermarket extra for a slammed, compact, pro-inspired riding position with a longer effective reach. Swaps take a matter of minutes with the Endurace’s integrated TX25 emergency bit.

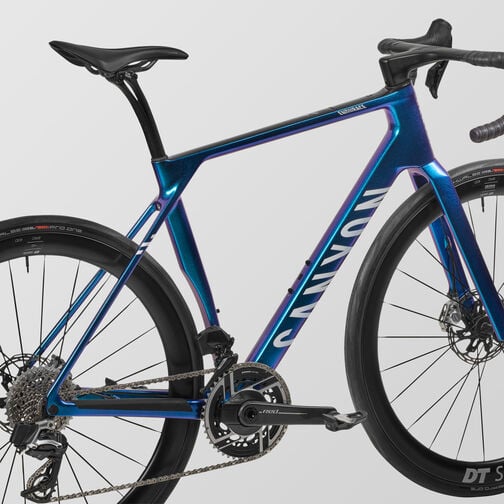

CFR: world-class carbon

The pinnacle of lightness, strength, and stiffness: our gamechanging CFR frame engineering is now available on the Endurace. With its benchmark stiffness-to-weight, the Endurace CFR’s frame is the embodiment of Canyon’s world-class carbon engineering expertise. The finest materials. Advanced lightweight engineering. Super-thin construction, with no drawbacks in terms of toughness thanks to specially placed reinforcement patches. This is the frame to beat.

Accessories shown here are sold separately. Buy the products here.

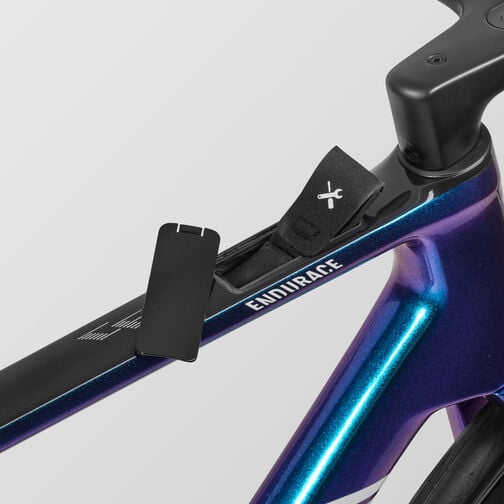

Ride-saving tools at your fingertips

Go Long with total confidence. Our neoprene Tool Sleeve fits perfectly inside the Endurace's top tube storage compartment – simply fill it with tools to help you out when you need it most. We recommend the Endurace LOAD Top Tube Storage bundle, available separately and including a Canyon 3-in-1 Minitool, CO2 cartridge, and tyre levers.

The benchmark of carbon seatpost design

Providing 20 mm of vertical deflection in a sleek package, the S15 VCLS 2.0 seatpost is simple, elegant, and beautifully effective. Its innovative carbon leaf spring construction feels firm when you’re on the flats but absorbs jolts and vibrations to take the edge off the harshest surfaces, so you feel fresher on long rides over mixed surfaces.

Components

Content is loading

Frame

Frame
- Canyon Endurace CFR
- Canyon’s fastest, lightest endurance road bike, crafted using the highest grades of carbon to deliver class-leading stiffness-to-weight values. With integrated storage solutions and aero-optimised tube forms.
- Axle dimension: 12x142 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 1,030 g
Fork
- Canyon FK0149
- Lightweight carbon fork, engineered for maximum stiffness-to-weight and compliance.
- Axle dimension: 12x100 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 455 g

Drivetrain

Battery
- SRAM Powerpack
Rear Derailleur
- SRAM Red AXS Rear Derailleur
- Weight: 264 g
Front Derailleur
- SRAM Red
- Weight: 147 g
Cassette
- SRAM Red
- Number of sprockets: 12
- Range: 10-36
Crank
- SRAM RED
- Number of chainrings: 2
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
Chain
- SRAM RED

Brakes

Shift-/ Brake Lever
- SRAM Red
- Number of pistons: 2
- Weight: 361 g
Shift-/ Brake Lever
- SRAM RED AXS
- Number of pistons: 2
- Weight: 363 g
Brake Rotor
- SRAM Paceline X
- Size: 160 mm
- Weight: 134 g

Wheels

Front Wheel
- DT Swiss ERC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Inner width: 22 mm
- Rim material: Carbon
- Weight: 663 g
Rear Wheel
- DT Swiss ERC1100
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Inner width: 22 mm
- Rim material: Carbon
- Weight: 786 g
Tyre
- Schwalbe Pro One Evo 32 mm
- Width: 32 mm
- Weight: 305 g
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm

Cockpit

Cockpit
- CP0048
- Aero carbon cockpit with 40 mm width and 15 mm height adjustment for a total of 12 distinct positions.
- Material: Carbon (CF)
- Weight: 224 g
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black

Seat

Saddle
- Fizik Tempo Aliante R1 145mm
- Gender: Unisex
- Weight: 183 g
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Endurace Quick Start Guide
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 159	159 - 165	165 - 171	171 - 178	178 - 185	185 - 192	192 - 198	≥ 198
Seat Height in mm (a)	593 - 693	623 - 723	653 - 753	683 - 783	713 - 813	743 - 843	773 - 873	803 - 903
Seat Tube Length in mm (b)	402	432	462	492	522	552	582	612
Top Tube Length in mm (c)	501	511	532	543	553	568	594	609
Head Tube Length in mm (d)	123	138	129	146	165	186	212	232
Head Tube Angle (e)	70,3°	71,5°	70,8°	71,8°	72,75°	73°	73,3°	73,3°
Seat Tube Angle (f)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Chainstay Length in mm (g)	405	405	415	415	415	415	415	415
Wheel Base in mm (h)	959	958	991	993	993	1.006	1.029	1.044
Stack in mm (i)	510	529	548	568	590	611	637	656
Reach in mm (j)	350	354	370	375	378	387	405	415
Stand-over Height in mm (k)	708	734	763	788	815	840	867	891
Bottom Bracket Offset in mm (l)	60	60	73	73	73	73	73	73
Stack+ in mm	586	586	586	586	586	586	586	586
Effective stack: Vertical distance between the bottom bracket and the hand position Learn more	604	618	639	652	672	693	718	738
Effective reach: Horizontal distance between the bottom bracket and the hand position Learn more	484	500	514	533	547	567	585	605

Component geometry

Detailed geometry table

Spacer in mm	20	20	20	20	20	20	20	20
Cockpit Dimensions in mm	70 - [370-420]	80 - [370-420]	80 - [370-420]	90 - [370-420]	100 - [370-420]	110 - [370-420]	110 - [370-420]	120 - [370-420]
Crank Length in mm	165,0	165,0	170,0	170,0	172,5	172,5	175,0	175,0
Chainring Size	46/33	46/33	46/33	46/33	46/33	46/33	46/33	46/33
Seat Post Diameter in mm	27,2	27,2	27,2	27,2	27,2	27,2	27,2	27,2
Seat Post Length in mm	350	350	350	350	350	350	350	350
Maximum Seat Post Insertion Depth in mm	207	207	207	207	207	207	207	207
Minimum Seat Post Insertion Depth in mm	107	107	107	107	107	107	107	107
Wheel Size	27.5"	27.5"	28"	28"	28"	28"	28"	28"
Disc Size in mm	140 / 140	140 / 140	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160

Download PDF

Content is loading

Endurace CFR AXS support

Canyon Bikestand

60,95 €

Rear light for free

Canyon Disruptr CFR Helmet

254,95 €

or from 15 €/Mo.

Canyon CORE Men's Bibshorts

111,95 €

or from 19 €/Mo.

Canyon GEAR GROOVE Aero Extension

508,95 €

or from 17 €/Mo.

Canyon CORE Women's Cycling Jersey

91,95 €

or from 16 €/Mo.

Canyon CP0048 | CP0049 Aero Drops

233,95 €

or from 13 €/Mo.

-49%

Canyon Men's Signature Pro Lightweight Cycling Jersey

74,95 €

Original price ~~147,95 €~~

You save 73 €

Weather-ready

Canyon Ass Saver

5,95 €

Weather-ready

Dynamic Bio Filth Fighter Bike Cleaner

15,95 €

Canyon Tempr CFR Road Cycling Shoes

335,95 €

or from 14 €/Mo.

Canyon CORE Women's Cycling Shorts

101,95 €

or from 17 €/Mo.

Weather-ready

Canyon Men's PocketLight Rain Jacket Race Fit

203,95 €

or from 17 €/Mo.

Canyon Tire Lever

5,95 €

Canyon CP0048 PACE T-Bar

203,95 €

or from 17 €/Mo.

Bike classification

Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.

Disclaimer

Subject to technical modification without notice. Errors and omissions excepted.
