Pathlite:ON 7 SUV
- Range up to: 140 km
-
Weight:
28.3 kg
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
This bike is available through CycleschemeCyclescheme allows you to save between 26% and 40% on your next Canyon. If your employer is signed up to Cyclescheme you can build your basket and checkout using Cyclescheme as the payment method. Learn moreThis bike is available through Green Commute InitiativeGet up to 47% off with tax-free savings. Select your Canyon bike or e-bike, include the approved gear and accessories, and apply.
Learn more -
Financing with KlarnaKlarna offers direct payments, pay later options, or installment plansCalculate amountFinancing with SplititNo credit checks, 0% interest. Pay monthly for your order with your existing credit card.Calculate amount
-
Nervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
Your bike already arrives 95% built. We give you the tools. And simple instructions. No technical skills needed.
-
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
Learn more
Highlights Pathlite:ON 7 SUV

All power, most powerful Bosch motor

Pack your bike for day adventure

A powerful long-range motor with advanced theft protection

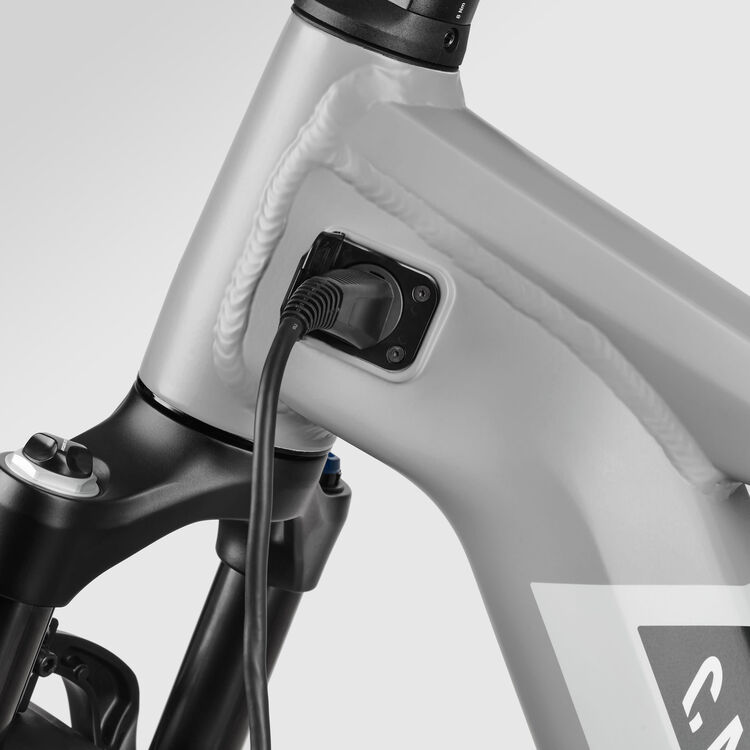

An easy-to-charge, easy-to-remove battery

See everything. Be seen. Ride safe.

Powerful, precise braking

Smooth, clean, low-maintenance gearing

More comfort and control: air suspension fork
Frame
-
Frame
- Canyon Pathlite:ON
- A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,250 g
-

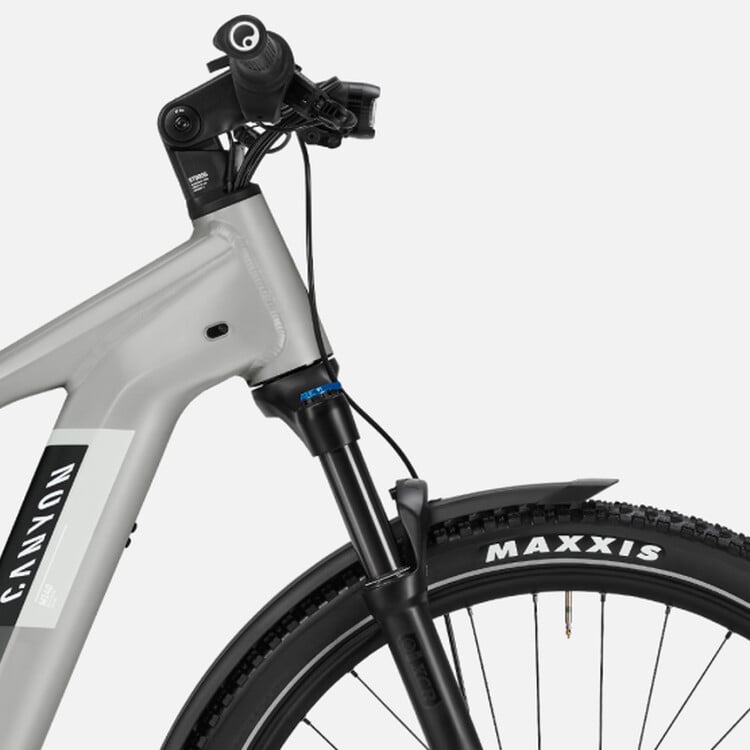

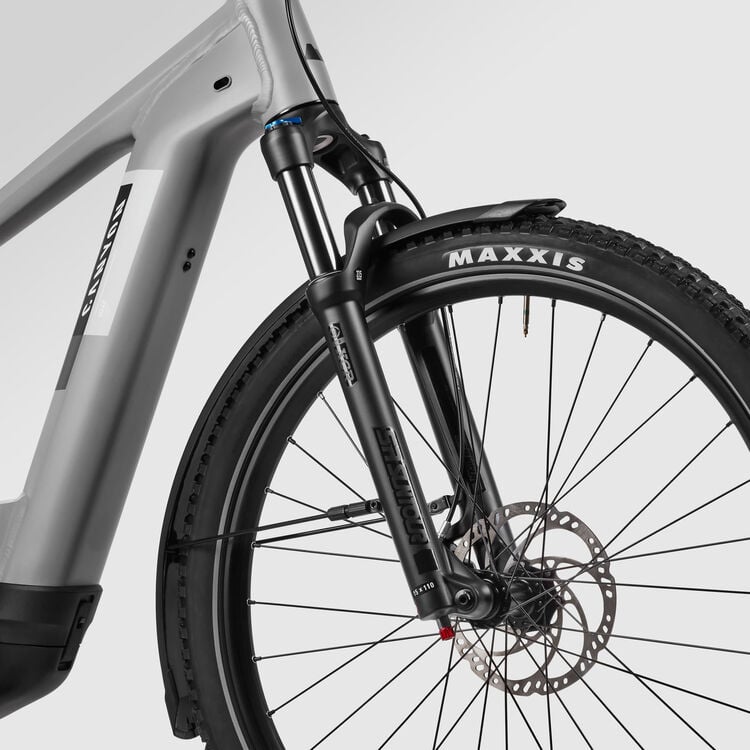

Suspension Fork
- FS SUT XCR34 27.5 100 AIR 15X110 C74 1.5
- Axle dimension: 15x110 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
-
Motor

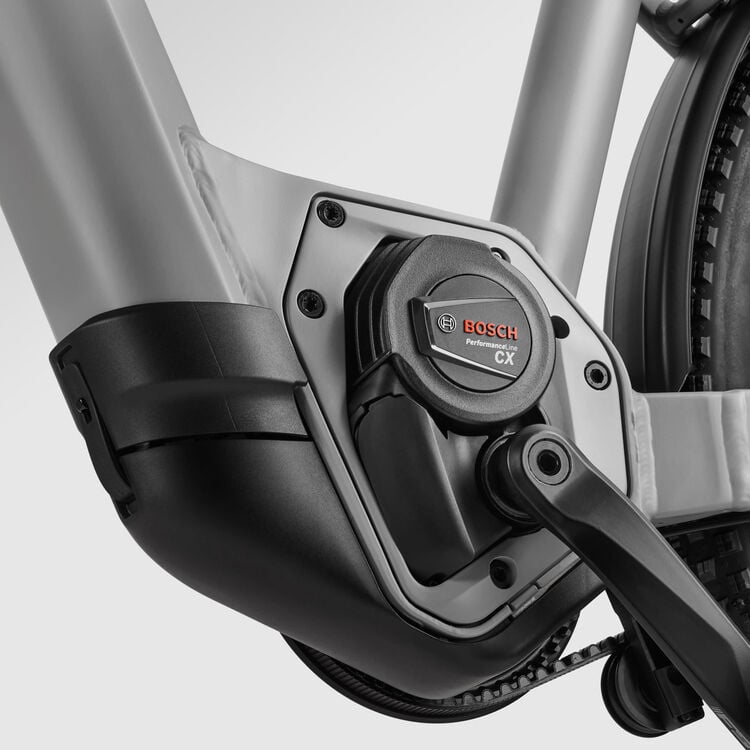

- Bosch Performance Line CX
-
Battery
- Bosch PowerTube 750Wh
-
Chainguard
- Gates Belt Tensioner
-
Chainguard
- Canyon EP1331-01
-
Chainguard
- Enviolo manual hub interface
-
Chainguard
- Canyon EP2129-01
-
Shift Lever
- Enviolo shifting, Gates belt
- Weight: 128 g
-
Cassette
- Gates CDX 22T rear sprocket
- Number of sprockets: 1
- Range: 22
-
Crank
- FSA CK 220
- Number of chainrings: 1
-
Chainring
- Gates CDX 50T incl. Guard
-
Chain
- Gates CDX Belt
Brakes
-
Disc Brake

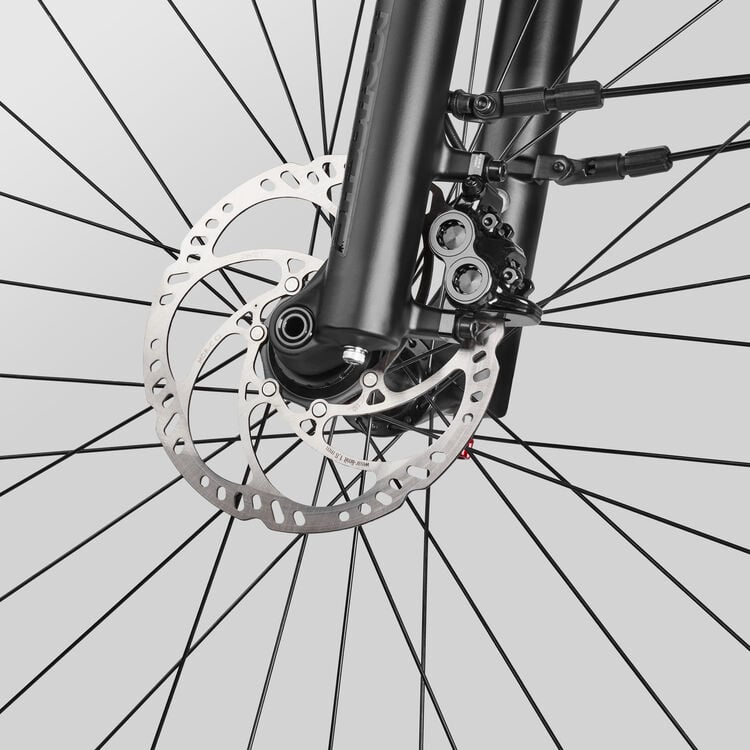

- Magura MT30 hydraulic disc brake
- Number of pistons: 4
-
Disc Brake
- Magura MT Thirty
- Number of pistons: 2
-
Brake Rotor
- Magura MDR-C
- Size: 180 mm
- Weight: 138 g
-
Brake Rotor
- Magura MDR-C
- Size: 180 mm
- Weight: 138 g
Wheels
-
Front Wheel
- Alexrims MD25 | Promax DR850
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 905 g
-
Rear Wheel
- Alexrims MD25 | Enviolo heavy duty hub
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 20 mm
- Inner width: 25 mm
- Rim material: Aluminium
- Weight: 1,244 g
-
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width: 2,25"
- Weight: 750 g
Cockpit
-
Stem
- Canyon ST0036 Adjustable
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm
-
Handlebar
- Iridium Flatbar
- Clamping diameter: 31,8 mm
- Width: 680 mm
- Rise: 5 mm
-
Grips
- Ergon GA30 Twist Shift
-
Bells
- Knog Oi Classic
-
Display
- Bosch Purion 200 Display BRC3800
Seat
-
Saddle
- Selle Royal Essenza+ Athletic
- Gender: Unisex
- Weight: 420 g
-
Seatpost
- Canyon SP0062 Supension Dropper Post
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 518 g
-
Seat Clamp
- Canyon GP0170-01 Seatclamp
Light
-
Lights
- Sate-Lite M12 Rear Light
-
Lights

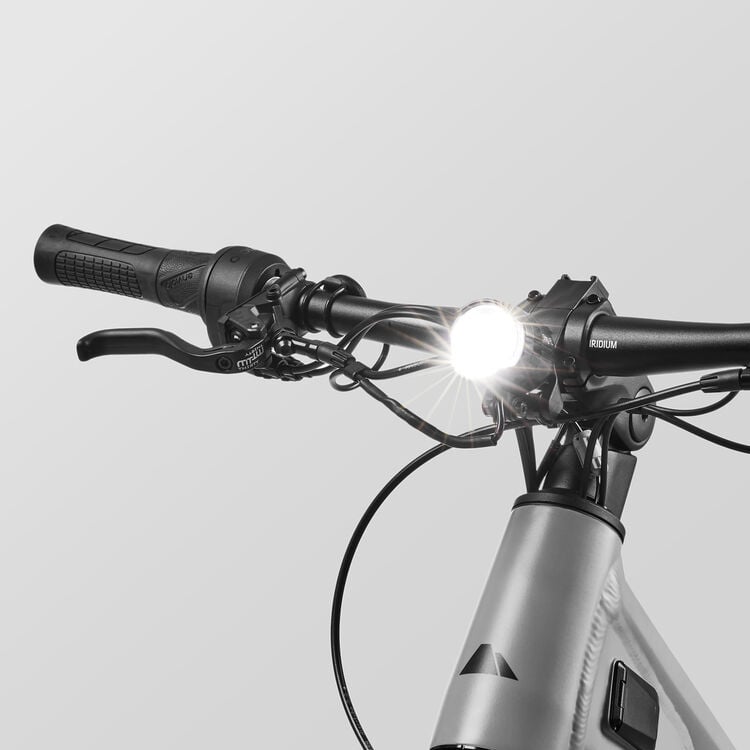

- Iridium Shiny FL 60/100 LED high beam front light
Accessories
-
Battery Charger
- Bosch 4A
-
Pedals
- VP-536 f
-
Bike Racks
- Canyon Rack
-
Fender
- Plastic mudguards
-
Fender
- FEND GP0405-02 27.5 FRONT w/STAYS bk
-
Fender
- Canyon GP0563-01 Fender Kit
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Drybag
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 180 | 180 - 190 | ≥ 190 |
---|---|---|---|
Seat Height in mm
(a)
|
633 - 813 | 678 - 858 | 723 - 903 |
Seat Tube Length in mm
(b)
|
430 | 475 | 520 |
Top Tube Length in mm
(c)
|
598 | 625 | 652 |
Head Tube Length in mm
(d)
|
137 | 164 | 191 |
Head Tube Angle
(e)
|
68,5° | 68,5° | 68,5° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
460 | 460 | 460 |
Wheel Base in mm
(h)
|
1.138 | 1.168 | 1.198 |
Stack in mm
(i)
|
650 | 675 | 700 |
Reach in mm
(j)
|
405 | 425 | 445 |
Stand-over Height in mm
(k)
|
775 | 800 | 825 |
Bottom Bracket Offset in mm
(l)
|
65 | 65 | 65 |
Spacer in mm
|
10,0 | 10,0 | 10,0 |
---|---|---|---|
Stem Length in mm
|
65 | 65 | 65 |
Handlebar Width in mm
|
680 | 680 | 680 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
25 | 25 | 25 |
Seat Post Length in mm
|
415 | 415 | 415 |
Maximum Seat Post Insertion Depth in mm
|
260 | 260 | 260 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 |
Wheel Size
|
27.5" | 27.5" | 27.5" |
Disc Size in mm
|
180 / 180 | 180 / 180 | 180 / 180 |
Front Fork Travel in mm
|
100 | 100 | 100 |
Battery capacity
|
750 Wh | 750 Wh | 750 Wh |
Pathlite:ON 7 SUV support





Bike classification
Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.
Bikes in this category provide motorised support up to 25 kph. You can ride above 25 kph, just without support.
Disclaimer
Subject to technical modification without notice. Errors and omissions excepted.
