Pathlite:ON 5 SUV step-through

Refurbished bike in S
-59%

Explore the outdoors without breaking a sweat. Ride further and easier thanks to an easy-mount frame, incredible Bosch power, a large 500 Wh battery, and reliable Shimano components.

Weight: 57.99 lbs

Colour: Stone Grey

Members only product.

Members only product.

Sold out

Highlights Pathlite:ON 5 SUV step-through

Components

Frame

Frame
- Canyon Pathlite:ON Step-Through
- A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design.
- Axle dimension: 12x148 mm
- Material: Aluminium (AL)
- Weight: 1,620 g
Suspension Fork
- SR Suntour XCM34 BOOST
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
Seatpost Clamp
- Canyon GP0170-01 Seatclamp

Drivetrain

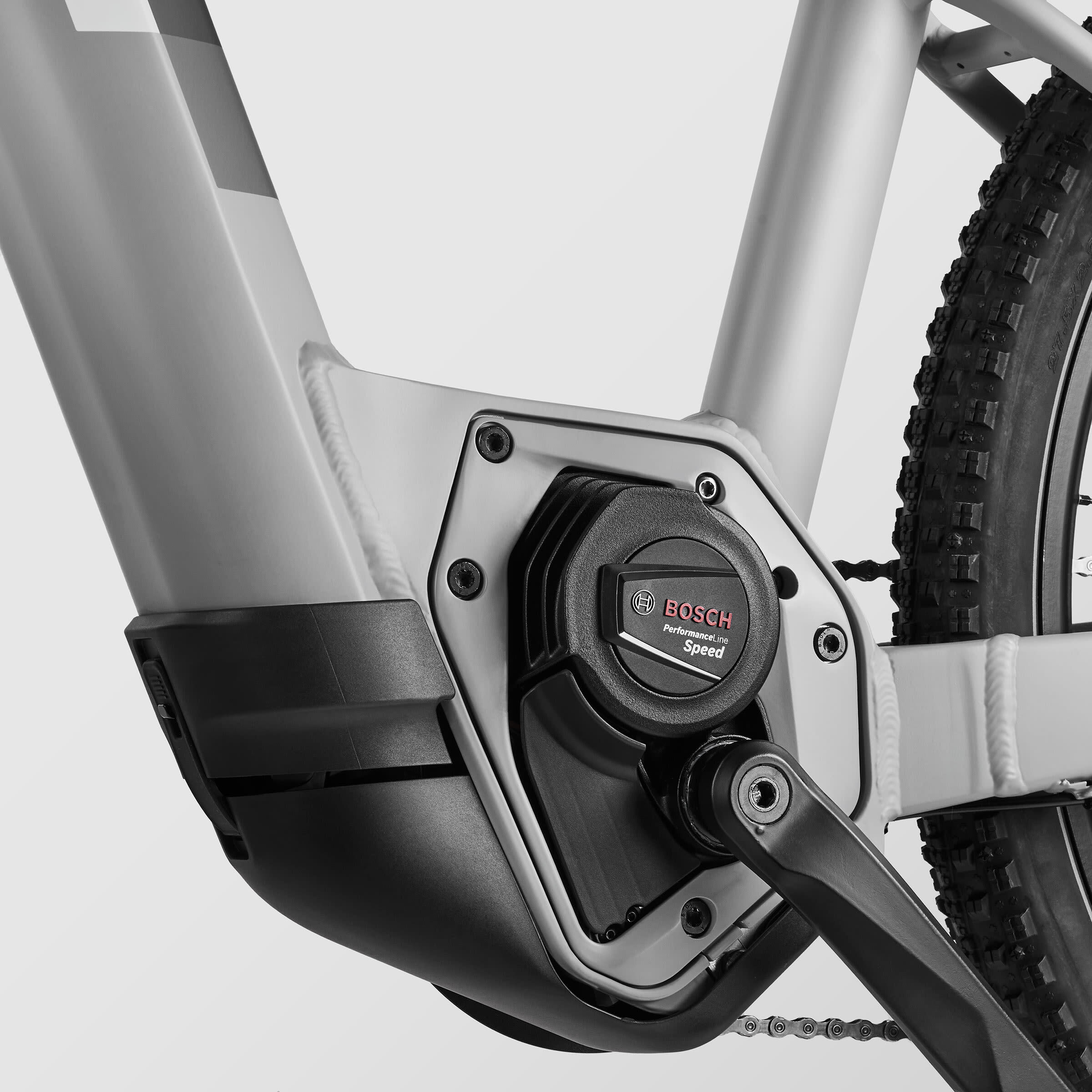

Motor
- Bosch Performance Line

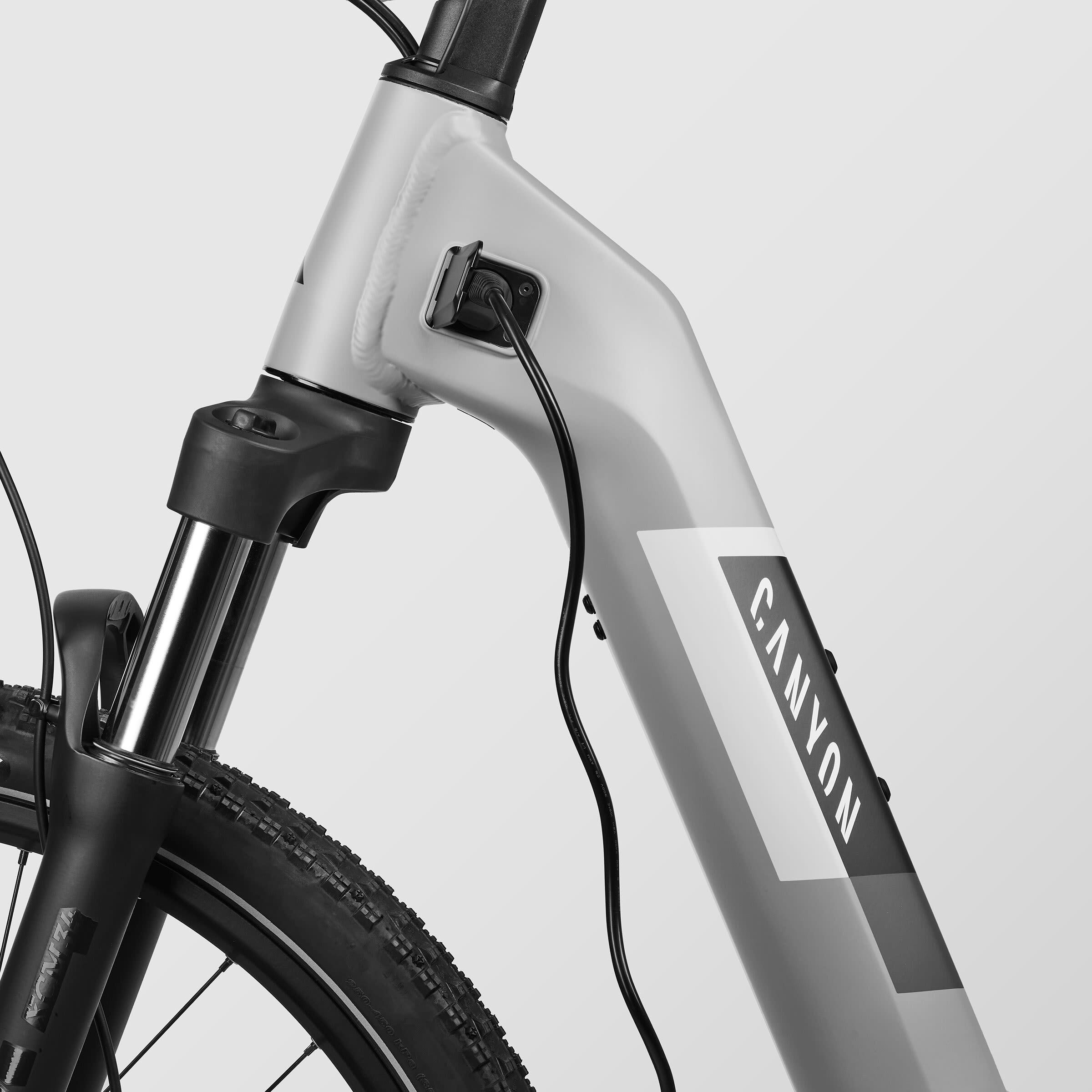

Battery
- Bosch BBP3755
Rear Derailleur
- Shimano CUES 10/11-speed
- Cage length: short
- Weight: 348 g
Shift Lever
- Shimano CUES U6000
- Weight: 30 g
Cassette
- Shimano CUES LG300-10
- Number of sprockets: 10
- Range: 11-48
Crank
- FSA CK 220
- Number of chainrings: 1
Chainring
- FSA Gen4 Spider Boost 42T
Chain
- Shimano Cues LG500

Brakes

Disc Brake
- Shimano MT200
- Number of pistons: 2
Disc Brake
- Shimano MT200
- Number of pistons: 2
Brake Rotor
- Shimano RT30
- Size: 180 mm
- Weight: 191 g

Wheels

Front Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 15x110
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim height: 21 mm
- Rim material: Aluminium
Rear Wheel
- Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 12x148
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Rim height: 21 mm
- Rim material: Aluminium
Tyre
- Maxxis Crossmark II Reflexstrip Clincher
- Width: 2,25"
- Weight: 750 g
Thru Axle
- Canyon GP0420 Rear Thru Axle
- Axle dimension: 12x148 mm

Cockpit

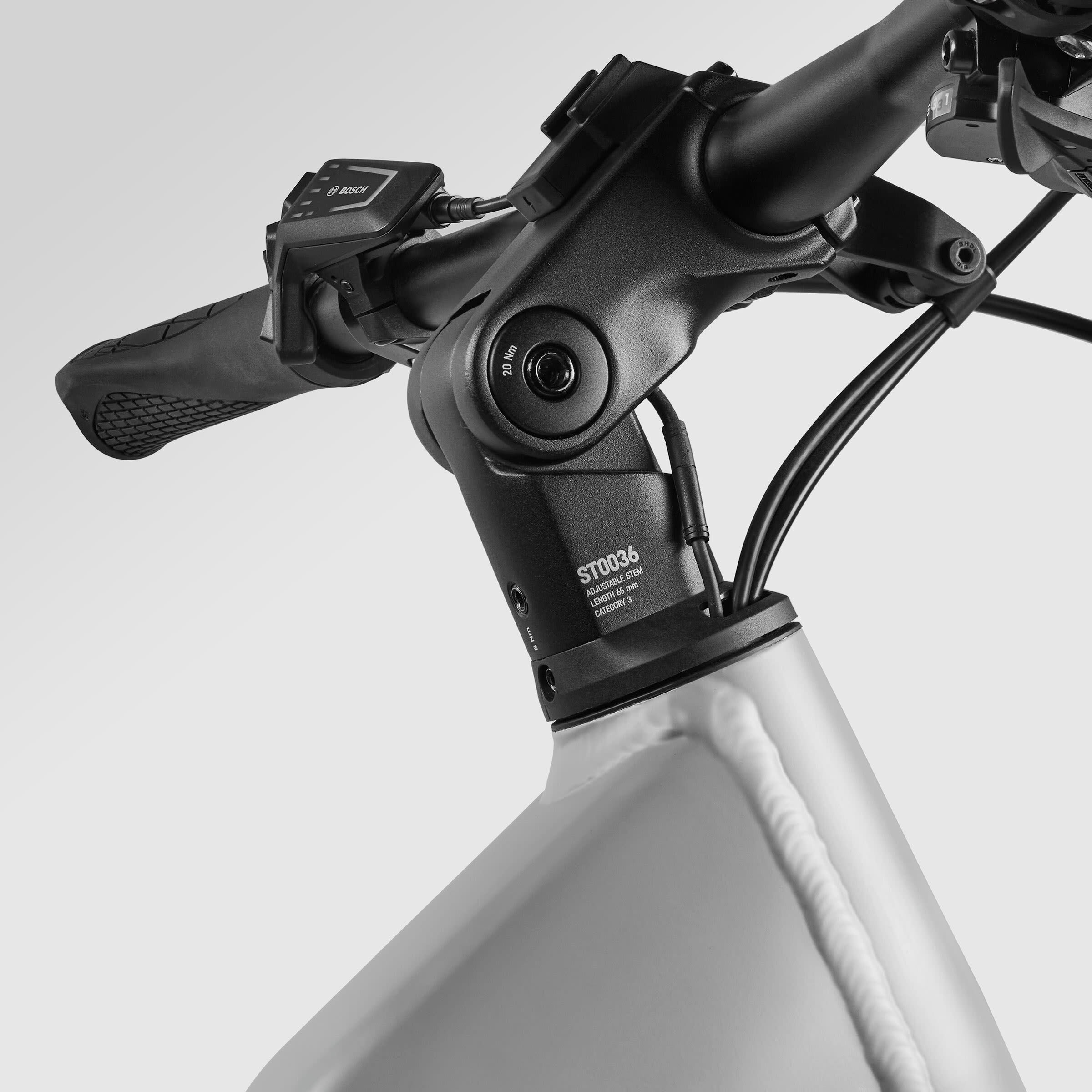

Stem
- Canyon ST0036 Adjustable
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 31,8 mm

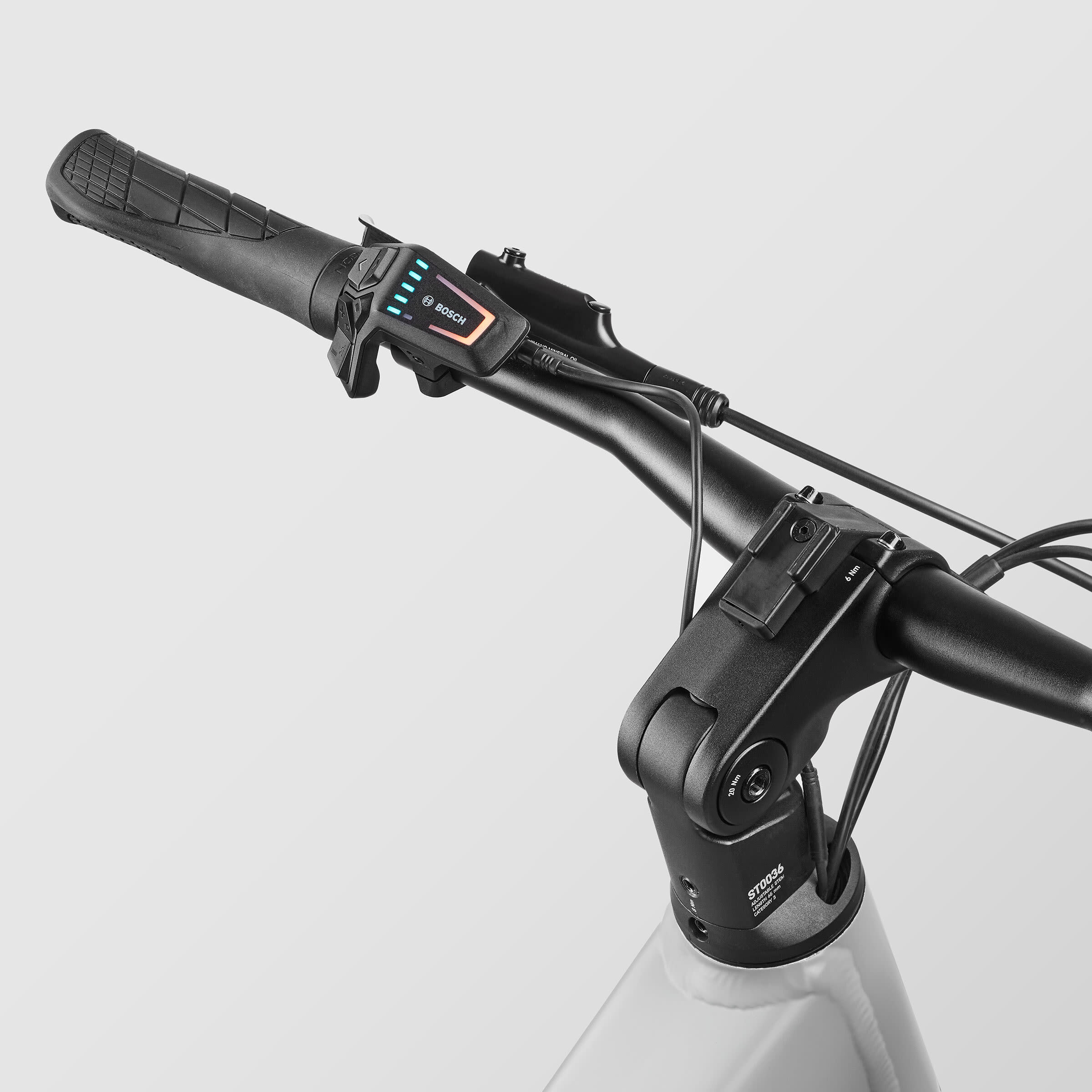

Handlebar
- Iridium Flatbar
- Clamping diameter: 31,8 mm
- Rise: 5 mm
Grips
- Ergon GA3 mini-wing
Bells
- Knog Oi Classic

Seat

Saddle
- SR Royal Essenza+
- Width: 225 mm
- Gender: Unisex
- Weight: 561 g
Seatpost
- Canyon SP0067 Supension Post
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 552 g

Light

Lights
- Reflector Set

Accessories

Bikestands
- Atran Edge HV
Battery Charger
- Bosch 2A
Pedals
- VP-536 flat pedals
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Smallbox
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Quick Start Guide
Manuals and Accessories
- Pedelec Manual 005-V04

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 170	≥ 180
Seat Height in mm (a)	583 - 733	673 - 823
Seat Tube Length in mm (b)	385	475
Top Tube Length in mm (c)	565	625
Head Tube Length in mm (d)	111	164
Head Tube Angle (e)	68,5°	68,5°
Seat Tube Angle (f)	73,5°	73,5°
Chainstay Length in mm (g)	460	460
Wheel Base in mm (h)	1.103	1.168
Stack in mm (i)	625	675
Reach in mm (j)	380	425
Stand-over Height in mm (k)	450	450
Bottom Bracket Offset in mm (l)	65	65

Component geometry

Detailed geometry table

Spacer in mm	10,0	10,0
Stem Length in mm	65	65
Handlebar Width in mm	680	680
Crank Length in mm	170,0	170,0
Seat Post Diameter in mm	30,9	30,9
Dropper post travel in mm	50	50
Seat Post Length in mm	400	400
Maximum Seat Post Insertion Depth in mm	250	250
Minimum Seat Post Insertion Depth in mm	100	100
Wheel Size	27.5"	27.5"
Disc Size in mm	180 / 180	180 / 180
Front Fork Travel in mm	80	100
Battery capacity	500 Wh	500 Wh

Download PDF

Pathlite:ON 5 SUV step-through support

Bike classification

Bikes of category 2e are suitable for well-maintained hard-surface roads where the wheels remain in permanent contact to the ground. These bikes are designed for urban mobility and thus mainly for participation in road traffic and use on public and permitted lanes. This category comprises urban, city bikes and trekking bikes. The permissible maximum overall weight comprising rider, luggage and bicycle is mentioned on the CE marking on your bike. The E-Bike specific information is mentioned on the separate CE marking.

⚠︎ WARNING

Risk of cancer and reproductive harm from exposure to lead. See www.P65Warnings.ca.gov

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
