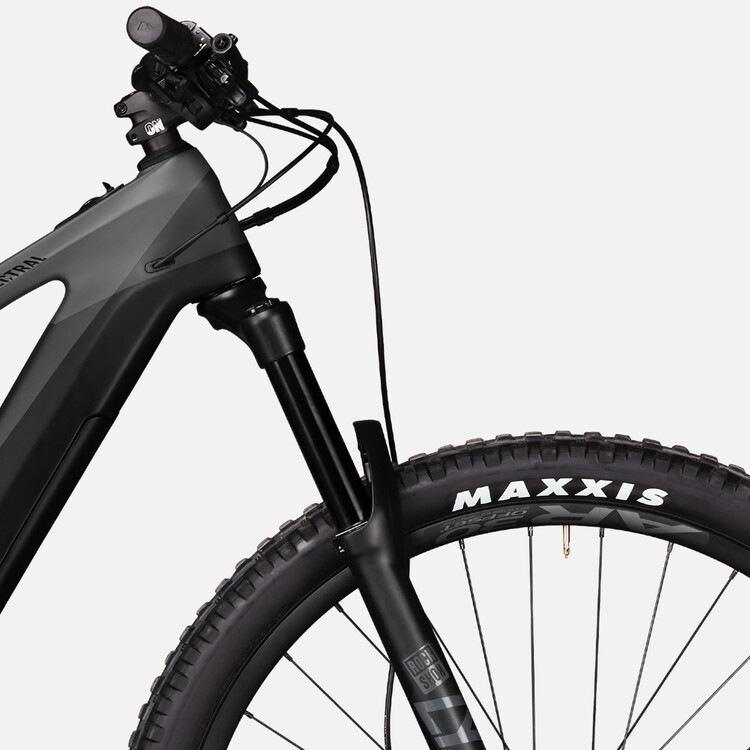

Spectral:ON CF 7.0
Combining a modern trail geometry and 150 mm of dialled suspension with a new, lighter carbon frame and sleek integrated battery, the Spectral:ON CF 7.0 and its powerful Shimano motor will have you out running laps until the sun goes down.
-
- Colour: Shades of Purple
-
Members only product. Log in here
Select frame size
Hint: Use our recommendation and get the correct size first time.
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Low temperature advisory: this bike’s motor may not activate in sub-zero conditions.
Members only product.
Log in here
Sold out
Highlights Spectral:ON CF 7.0
Content is loading
Frame
-
Frame
- Canyon Spectral:On
- Material: Carbon
- Travel: 150 mm
- Axle Dimension: 12 x 148 mm
- Brake Mount: Post Mount 203
-
Rear Shock
- RockShox Deluxe Select, 230x60
- Weight: 365 g
-
Suspension Fork
- Rock Shox Lyrik Select, 150mm
- Travel: 150 mm
- Fork steer tube diameter: 1 1/8" - 1 1/4"
- Weight: 2,100 g
Drivetrain
-
Motor
- Shimano Steps E8000
-
Battery
- Shimano BT-E8035-L Battery
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Shift Lever
- Shimano SLX M7100 12s
- Weight: 143 g
-
Cassette
- Shimano Deore SLX CS-M7100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- Shimano E8000
- Number of chainrings: 1
-
Chainring
- Canyon EP1110-01 Chainring 34T
-
Chain
- Shimano M7100 12-speed
Brakes
-
Disc Brake
- Shimano MT520
-
Disc Brake
- Shimano MT520
-
Brake Rotor
- Shimano RT64
- Size: 203 mm
- Weight: 206 g
-
Brake Rotor
- RT SHIM EM600 203 CL W/LR INT
- Size: 203 mm
- Weight: 10 g
Wheels
-
Front Wheel
- RaceFace AR30 | Shimano MT400
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 1,200 g
-
Rear Wheel
- RaceFace AR35 | Shimano MT510
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Weight: 1,250 g
-
Tyre
- Maxxis Minion DHF, 2.5"
- Width: 2.5"
- Weight: 250 g
-
Tyre
- Maxxis Minion DHR II, 2.6"
- Width: 2.6"
- Weight: 10 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON Stem
- 35mm clamp diameter, 50mm length
-
Stem
- ST [ON] ST0030-01 FRONTPLATE
-
Handlebar
- Canyon:ON HB0056 Riser bar
- Clamping diameter: 35,0 mm
- Width: 780 mm
- Rise: 20 mm
-
Grips
- Canyon Lock-On
-
Display
- Shimano Steps SC-E7000 Display
-
Modeswitch
- Shimano STEPS power mode switch
Seat
-
Saddle
- Canyon SD:ON
- Weight: 302 g
-
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- CAYN Manual MTB W/CD
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Shock Pump
-
Manuals and Accessories
- Canyon Drybag
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- QSG M094/M096/M098 [ON] eMTB MY20
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Pedelec Manual 005-V04
Content is loading
Content is loading
Body Height in cm
|
≤ 172 | 172 - 183 | 183 - 194 | ≥ 194 |
---|---|---|---|---|
Seat Height in mm
(a)
|
632 - 731 | 693 - 823 | 733 - 863 | 773 - 903 |
Seat Tube Length in mm
(b)
|
430 | 440 | 480 | 520 |
Top Tube Length in mm
(c)
|
590 | 612 | 632 | 653 |
Head Tube Length in mm
(d)
|
100 | 115 | 125 | 135 |
Head Tube Angle
(e)
|
66,5° | 66,5° | 66,5° | 66,5° |
Seat Tube Angle
(f)
|
74,5° | 74,5° | 74,5° | 74,5° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.171 | 1.197 | 1.221 | 1.245 |
Stack in mm
(i)
|
620 | 625 | 635 | 645 |
Reach in mm
(j)
|
425 | 445 | 465 | 485 |
Stand-over Height in mm
(k)
|
784 | 788 | 792 | 806 |
Bottom Bracket Offset in mm
(l)
|
33 | 33 | 33 | 33 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 50 | 50 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
165,0 | 165,0 | 165,0 | 165,0 |
Seat Post Diameter in mm
|
30,9 | 30,9 | 30,9 | 30,9 |
Dropper post travel in mm
|
100 | 150 | 150 | 150 |
Seat Post Length in mm
|
323 | 425 | 425 | 425 |
Maximum Seat Post Insertion Depth in mm
|
169 | 220 | 220 | 220 |
Minimum Seat Post Insertion Depth in mm
|
70 | 90 | 90 | 90 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
203 / 203 | 203 / 203 | 203 / 203 | 203 / 203 |
Front Fork Travel in mm
|
150 | 150 | 150 | 150 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Battery capacity
|
504 Wh | 504 Wh | 504 Wh | 504 Wh |
Fitting Length
|
230X60 | 230X60 | 230X60 | 230X60 |
