E-Bikes Electric Mountain Bikes Spectral:ON CF

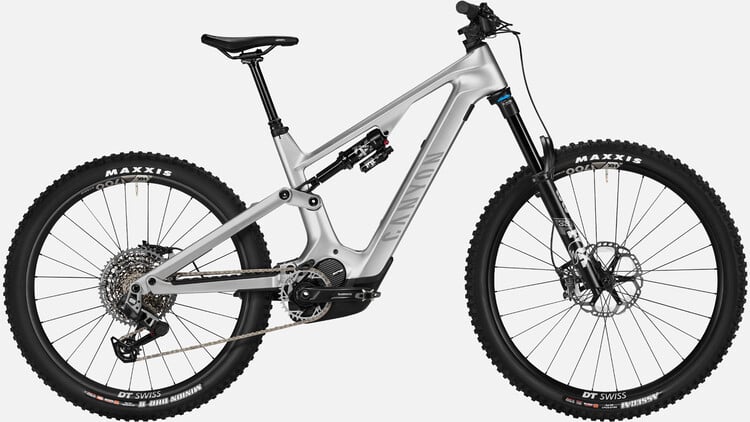

Spectral:ON CF 9

Name: Spectral:ON CF 9
Brand: Canyon
Price: 5599.00 USD
Availability: OutOfStock
Rating: 4 (24 reviews)

Power up each pedal stroke and blow out berms with the lightweight progressive carbon frame and Canyon-engineered batteries of the Spectral:ON. Go farther, go faster, and run it back.

Front Fork Travel: 160 mm
Weight: 53.80 lbs

Weight

Weight is based on a size medium frame.

Reviews (24)

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Hint: Use our recommendation and get the correct size first time.

Sold out

This bike is strictly compatible with the following Canyon batteries: BT003 (all frame sizes) and BT004 (size Med-XL frames).

Members only product.

Sold out

Highlights Spectral:ON CF 9

Play:ON repeat

Uniquely nimble

There’s no other full-power e-MTB like this one. We didn’t simply give this bike a big battery in order to maximize range. Instead, we developed batteries that also make the bike handle better. Our unique, horizontal fuel-cell architecture helps lower the bike’s center of gravity and creates an absolute ground-hugging, corner-slaying marvel.

CLLCTV approved

“The Spectral:ON has been such a big change to my training and riding overall. I get my kicks from the downhills and going fast. This is one of those bikes you can just lap all day on all kinds of trails, with plenty of power to enjoy the uphill too. And that’s a winner for me.” — Tahnée Seagrave, Elite Downhill MTB racer.

Key features

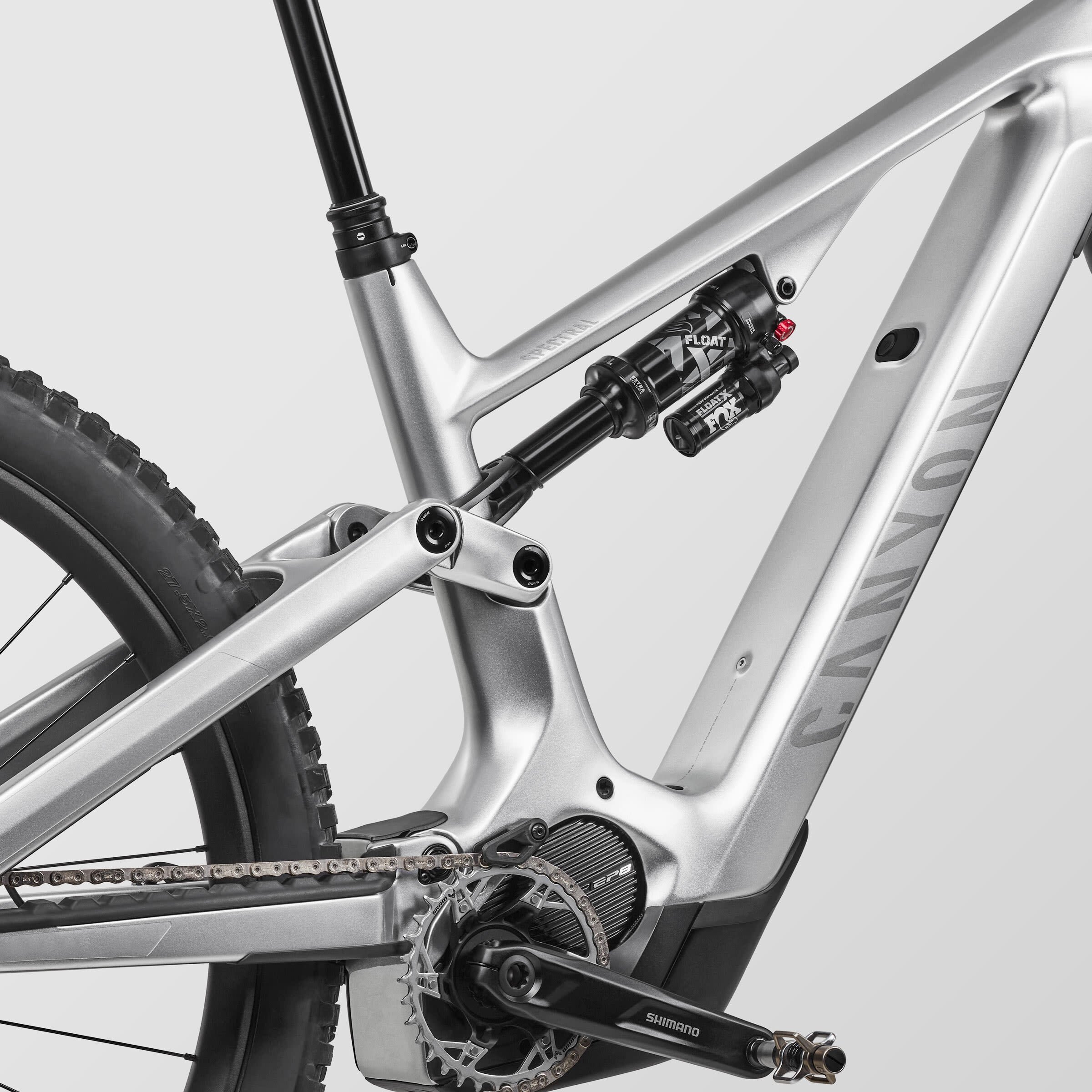

Full carbon electric trail bike

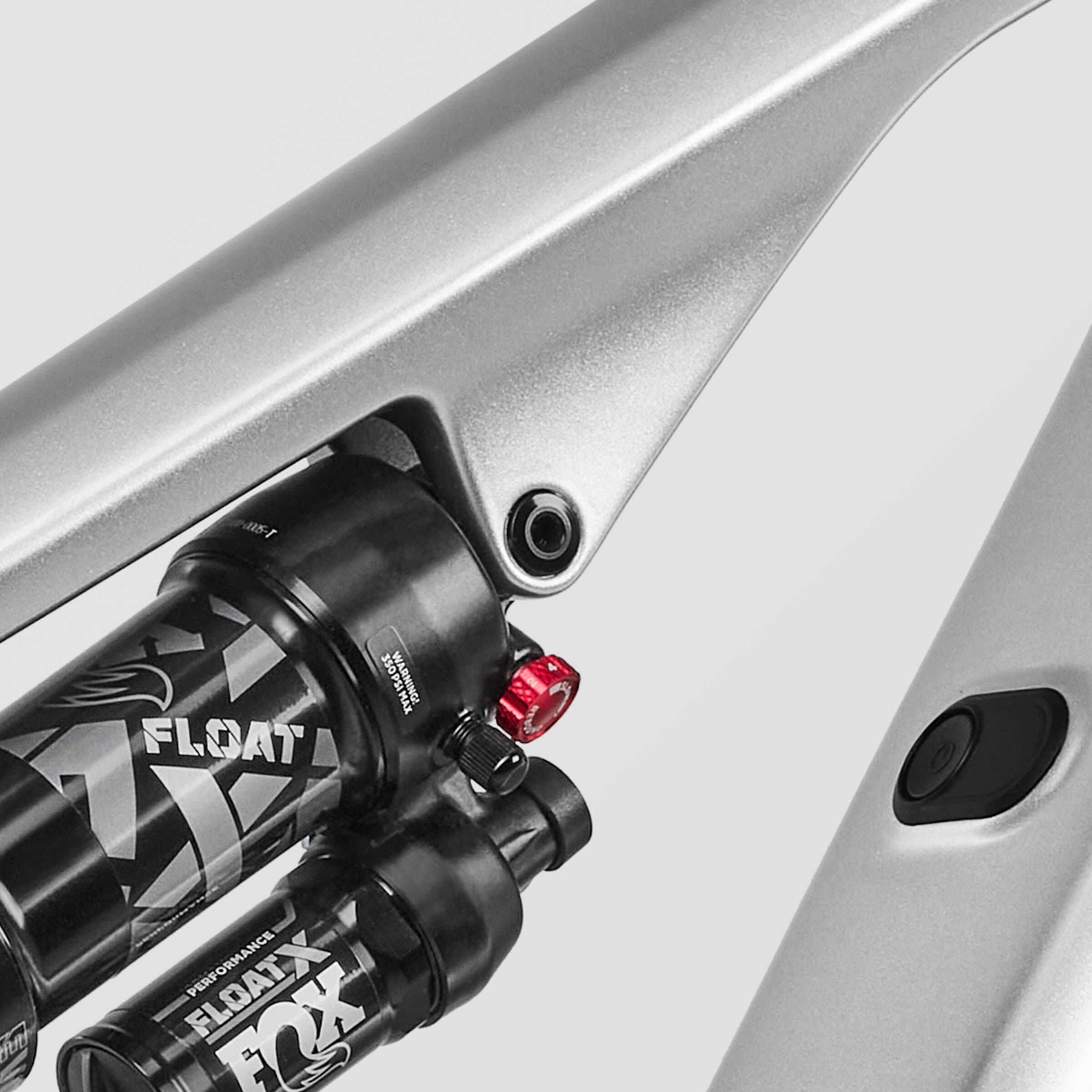

By making the full Spectral:ON line up carbon fibre we were able to optimise the frame architecture and improve strength at critical points while shaving overall weight. The added frame strength combines with huge 15 mm thru axles at the main and seatstay pivots to boost overall stiffness and noticeably improve handling precision and suspension performance.

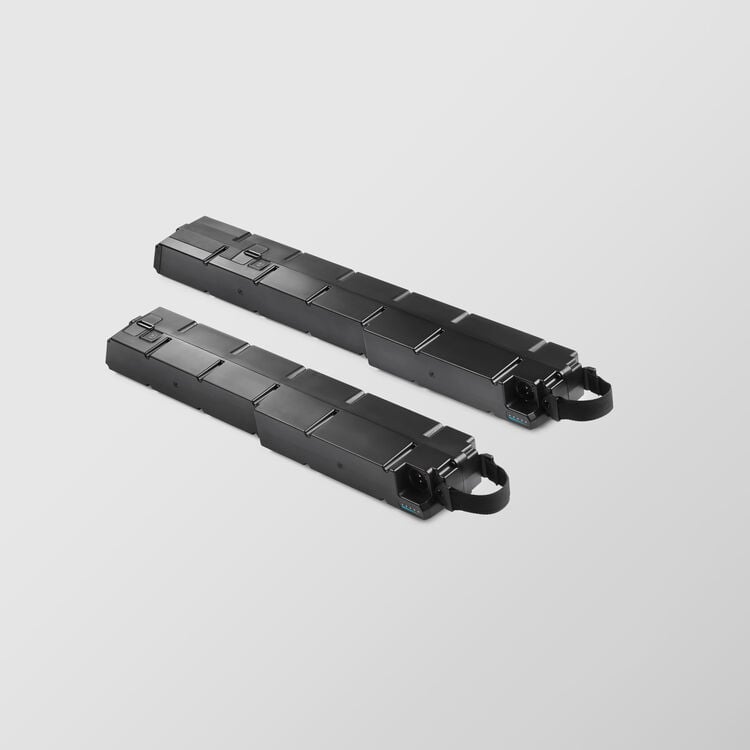

Powerful batteries for more miles and more stoke

More range, more elevation, more trails, more stoke, it’s all possible thanks to the industry-leading high-capacity batteries. Developed by Canyon, the 900Wh battery goes all in on range while the smaller 720Wh saves on weight. A powerful 4-amp charger tops up the batteries in no time and they can be charged either on or off the bike.

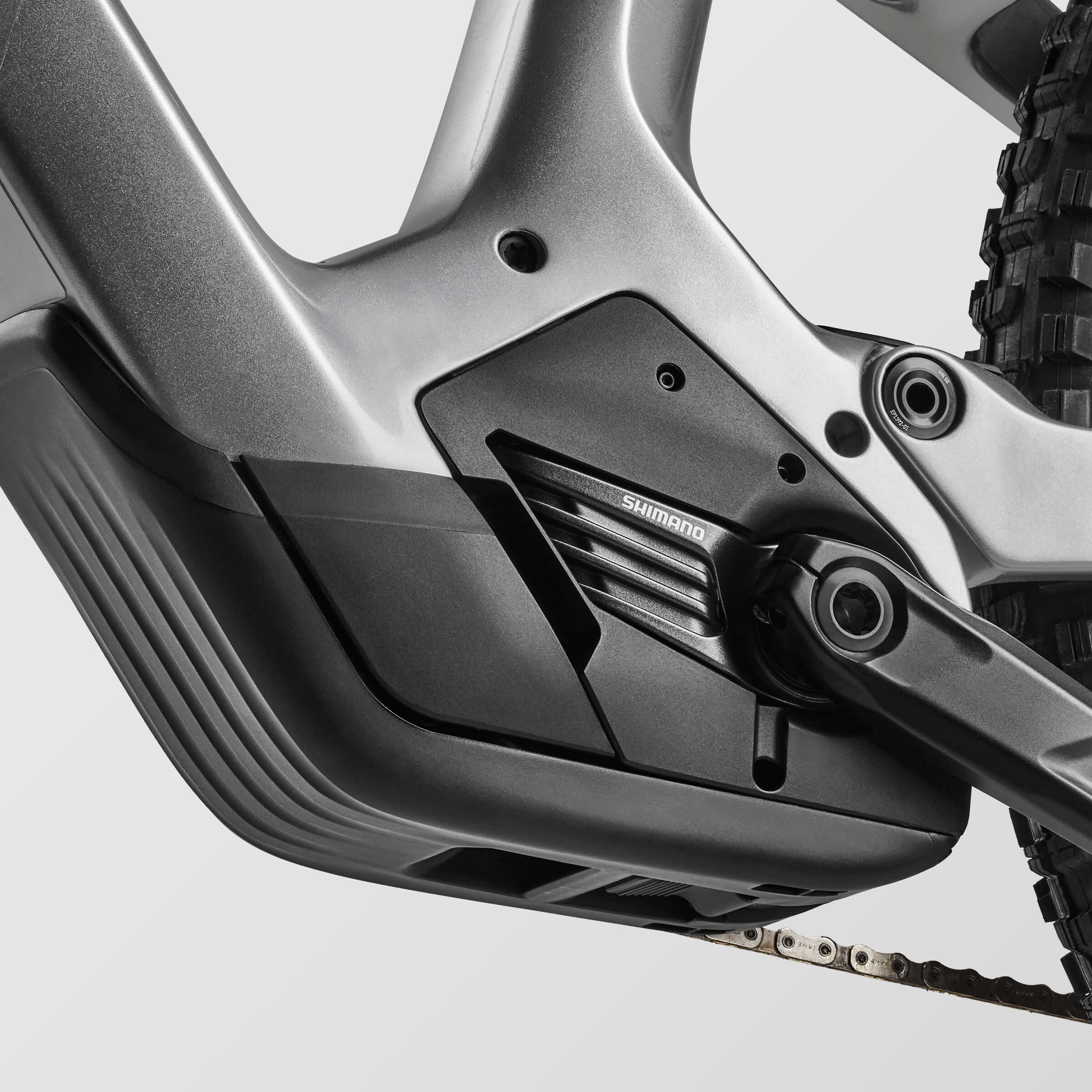

The new EP8

A great e-MTB needs to pack serious power under the hood without compromising handling and that’s exactly what the EP8 does. With a whopping 85 Nm of torque and 400% pedal assist, the motor will you have flying up steep trails and its compact size and light 2.7 kg weight ensure that the bike still handles like a champ

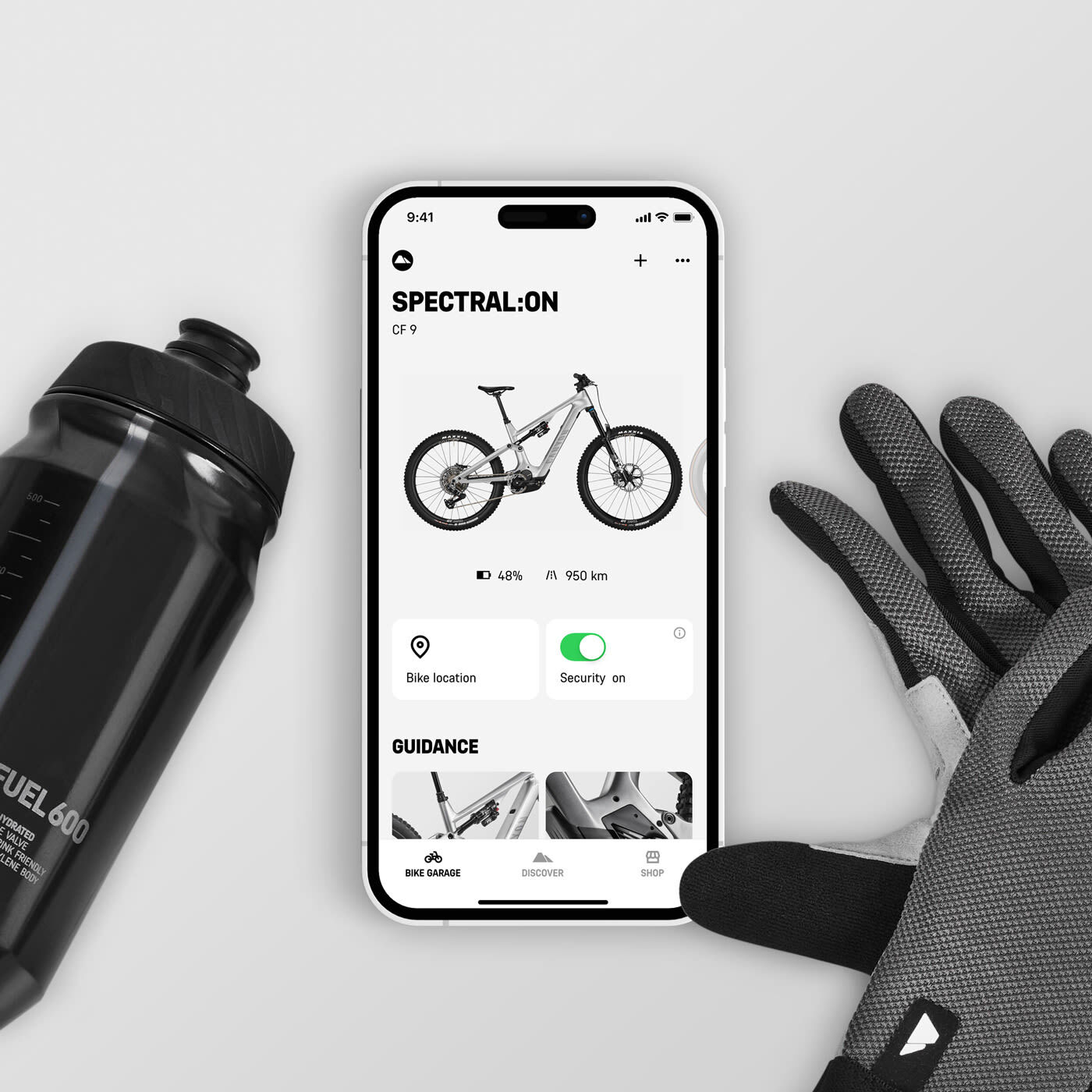

GPS Enabled

Whether you’re logging miles ridden and vert crushed or just keeping tabs on your baby, the GPS function of the Spectral:ON has got you covered. The new Canyon app logs the location of your bike and can even send an alarm notification if your bike gets tampered with. The GPS locator stays enabled if the bike runs out of battery.

Components

Content is loading

Frame

Frame
- Canyon Spectral:ON CF
- A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
- Material: Carbon (CF)
- Weight: 1,280 g
Rear Shock
- Fox Float X Performance Evolution
- Tune: CL, RM, Rezi LM
- Weight: 280 g

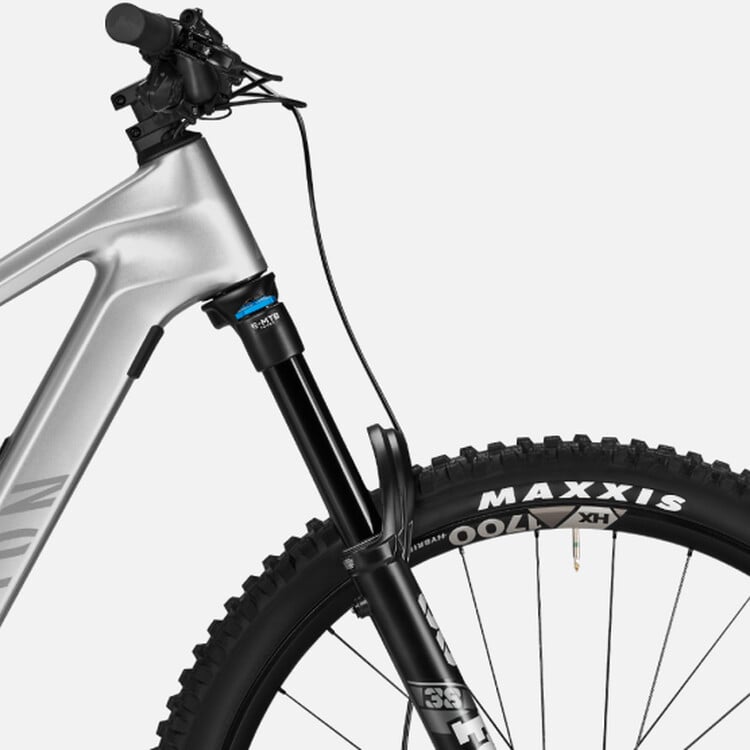

Suspension Fork
- FOX 38 Performance Elite Grip2
- Stanchion Diameter: 38 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"

Drivetrain

Motor
- Shimano EP801
Battery
- SRAM Powerpack
Battery
- CANYON BT010
Rear Derailleur
- SRAM GX Eagle AXS Transmission
- Weight: 462 g
Chainguard
- Canyon Chainguide M091/M129
Shift Lever
- SRAM AXS POD Infinity
Cassette
- SRAM XS-1275 Eagle Transmission
- Number of sprockets: 12
- Range: 10-52
Crank
- Shimano Steps
Chainring
- SRAM Eagle Transmission Direct Mount Steps
Chain
- SRAM GX Eagle Transmission

Brakes

Disc Brake
- Shimano DEORE XT M8120
Disc Brake
- Shimano DEORE XT M8120
- Number of pistons: 4
Brake Rotor
- Shimano XT STEPS rear rotor, 203mm
- Size: 203 mm
- Weight: 179 g
Brake Rotor
- Shimano DEORE XT MT800
- Size: 203 mm
- Weight: 100 g

Wheels

Front Wheel
- DT Swiss HX1700
- Rotor mount: Center Lock
- Weight: 997 g
Rear Wheel
- DT Swiss H1700
- Rotor mount: Center Lock
- Weight: 1,148 g
Tyre
- Maxxis Assegai
- Width: 2.5"
- Weight: 1,072 g
Tyre
- Maxxis Minion DHR II 27,5" x 2.60 WT
- Width: 2.6"
- Weight: 900 g
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm

Cockpit

Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
Grips
- Canyon Lock-On

Seat

Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 272 g
Seatpost
- Iridium Dropper Post
- Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling.
- Seatpost diameter: 30,9 mm
- Material: Aluminium (AL)
- Weight: 567 g
Seat Clamp
- Canyon GP0279-01 Seatclamp

Accessories

Battery Charger
- CANYON CHARGER
Battery Charger
- CANYON CHARGER
Pedals
- VP-536 f
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Wrench Tool 15mm
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- CAYN SMALL BOX 2.0
Manuals and Accessories
- QSG 027-V04 M091/M129 SPT[ON]

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	647 - 756	693 - 823	733 - 853	753 - 873
Seat Tube Length in mm (b)	420	440	460	480
Top Tube Length in mm (c)	589	613	637	663
Head Tube Length in mm (d)	115	125	135	145
Head Tube Angle (e)	65,5°	65,5°	65,5°	65,5°
Seat Tube Angle (f)	76,5°	76,5°	76,5°	76,5°
Chainstay Length in mm (g)	440	440	440	440
Wheel Base in mm (h)	1.194	1.223	1.252	1.281
Stack in mm (i)	634	643	652	661
Reach in mm (j)	435	460	485	510
Stand-over Height in mm (k)	809	814	820	825
Bottom Bracket Offset in mm (l)	36	36	36	36

Component geometry

Detailed geometry table

Spacer in mm	15	15	15	15
Stem Length in mm	45	45	45	45
Handlebar Width in mm	760	780	780	780
Crank Length in mm	165,0	165,0	165,0	165,0
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Dropper post travel in mm	125	150	170	170
Seat Post Length in mm	378	425	465	465
Maximum Seat Post Insertion Depth in mm	199	220	240	240
Minimum Seat Post Insertion Depth in mm	90	90	120	120

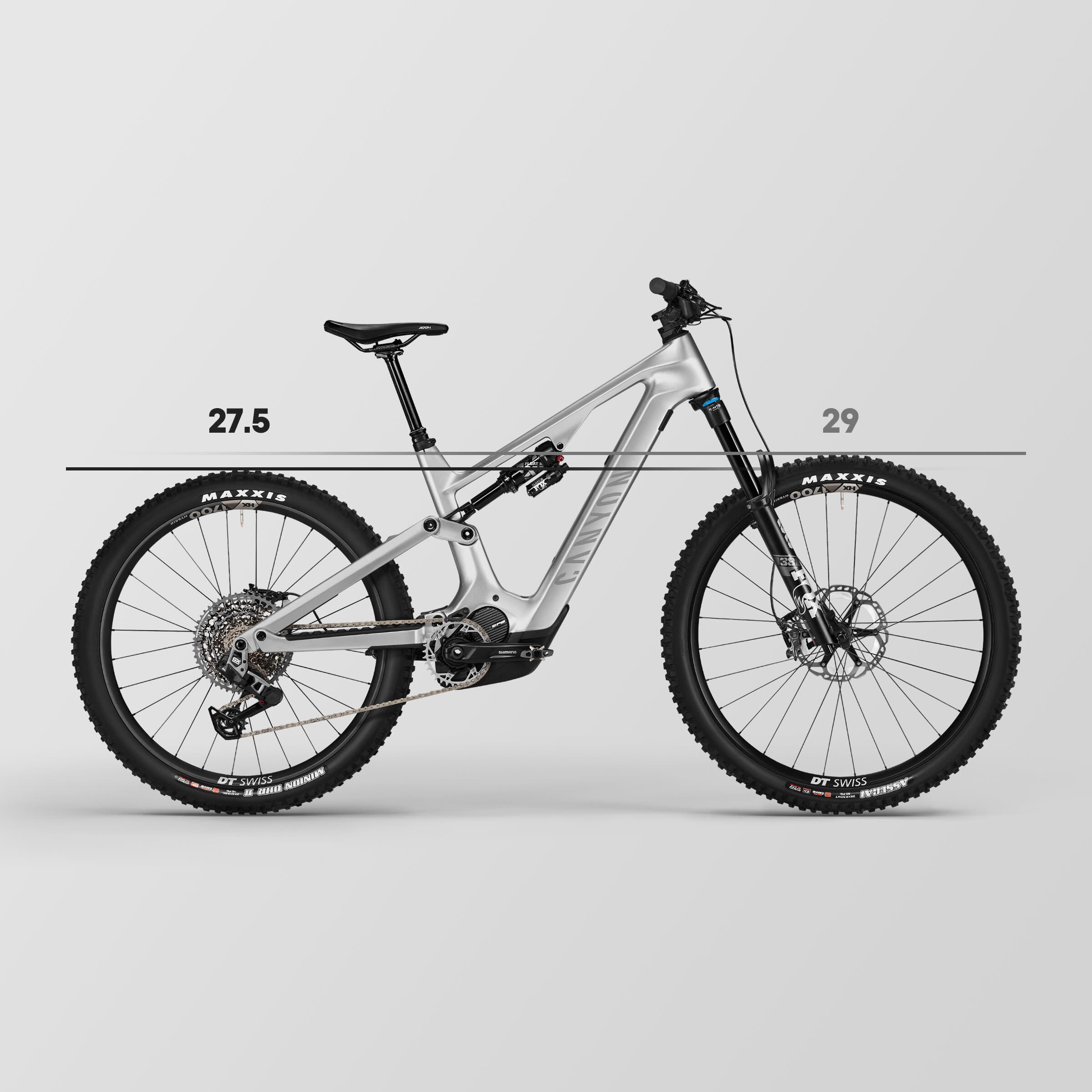

Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Disc Size in mm	203 / 203	203 / 203	203 / 203	203 / 203
Front Fork Travel in mm	160	160	160	160
Rear Suspension Travel in mm	155	155	155	155
Battery capacity	800 Wh	800 Wh	800 Wh	800 Wh
Fitting Length	230X60	230X60	230X60	230X60

Download PDF

Content is loading

Spectral:ON CF 9 support

Proposition 65 Warning

Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Production Variations

We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
