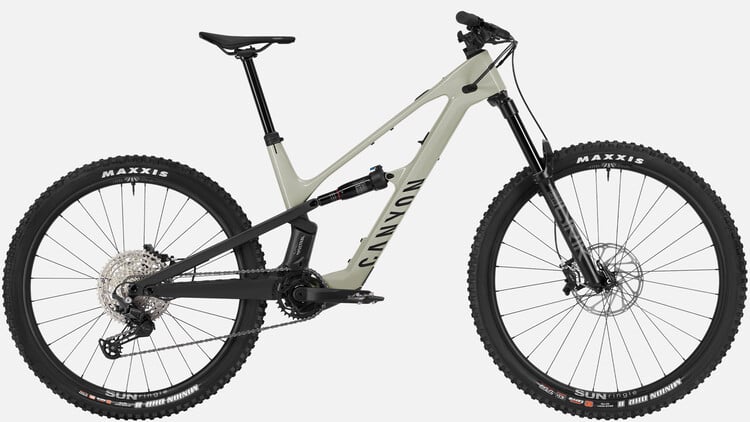

Spectral:ONfly CF 8
-
New
An epic trail-capable eMTB with a compact motor, wrapped up in an affordable ‘ready for anything’ package.
-
Weight:
41.67 lbs
WeightWeight is based on a size medium frame.
- Material: Carbon (CF)
-
-
Members only product. Log in here
Select your model
Sold out
This product isn’t available in the configuration you’ve selected. Check out similar products that are currently in stock.
Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).
Members only product.
Log in here
Sold out
Wear level
Visual imperfections
Bikes and framesets in this category are unridden new bikes that may have minimal colour deviations, scratches or damage to paintwork. Please note, this bike is a final sale and may not be returned.
These images show model #0001111489
Highlights Spectral:ONfly CF 8
More control. More fun.
We’ve equipped each Spectral:ONfly with K.I.S.—an ingenious spring mechanism housed inside the top tube that helps center your steering. End result? You experience more control on sketchy descents, more grip when its loose, and more fun in rough, off-camber conditions.
Fine tune your handling
You can custom tune how K.I.S. feels—with a simple twist of an allen wrench—to suit your own ride style and conditions. What’s more, K.I.S. is totally maintenance-free, protected from damage, and has a lifetime warranty. Don’t fancy K.I.S.? Each bike comes with an easy to install blanking plate that covers the adjuster slot.

What is :ONfly?
:ONfly is our line of innovative, lightweight e-bikes that range from e-MTB to e-gravel machines. Featuring sleek, compact motors and batteries, our :ONfly models hit the elusive sweetspot between traditional bikes and full power e-bikes.

CLLCTV approved
“Wait, this is an e-bike? There were multiple moments on the trail when I forgot I was riding an E-MTB. The bike feels super playful and lightweight. It’s nice to just pedal and not worry about how hard you are working.”
— Samantha Soriano, Professional Freeride MTB athlete.
Frame
-
Frame
- Canyon Spectral:ONfly CF
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,700 g
-
Rear Shock
- Rockshox Deluxe Select +
-
Suspension Fork
- RockShox Lyrik
- Axle dimension: 15x110 mm
- Stanchion Diameter: 35 mm
- Travel: 160 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Offset: 44 mm
- Volume Spacer Oe: 0/5
- Weight: 2,340 g
Drivetrain
-
Motor
- TQ HPR 50 Motor
-
Battery
- TQ HPR Battery
-
Rear Derailleur
- Shimano Deore M6100, 12-Speed
- Cage length: long
- Weight: 356 g
-
Chainguard
- Canyon GP0480-01 slim
-
Shift Lever
- Shimano Deore M6100, 12-Speed
- Weight: 136 g
-
Cassette
- Shimano Deore M6100
- Number of sprockets: 12
- Range: 10-51
-
Crank
- FSA CK-745/IS Armset
-
Chainring
- Chainring FSA W0190
-
Chain
- Shimano Deore M6100
Brakes
-
Disc Brake
- SRAM Code R
- Number of pistons: 4
-
Disc Brake
- SRAM Code R
- Number of pistons: 4
-
Brake Rotor
- SRAM Centerline Rounded
- Size: 200 mm
- Weight: 228 g
Wheels
-
Front Wheel
- Sunringle 329 Trail Expert
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim material: Aluminium
- Weight: 940 g
-
Rear Wheel
- Sunringle 327 Trail Expert
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Rim material: Aluminium
- Weight: 1,050 g
-
Tyre
- Maxxis Minion DHR II Exo
- Width: 2,4"
- Weight: 1,035 g
-
Tyre
- Maxxis Minion DHR II Exo+
- Width: 2.4"
- Weight: 1,000 g
-
Thru Axle
- Canyon Quixle Through Axle QR 148x12
- Axle dimension: 12x148 mm
Cockpit
-
Stem
- Canyon:ON ST0031 Stem
- Canyon E-MTB stem.
- Length: 45 mm
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
- Material: Aluminium (AL)
-
Handlebar
- Canyon:ON HB0057 Riser bar
- Canyon-developed E-MTB handlebar for top control levels on the trail.
- Clamping diameter: 35,0 mm
- Rise: 30 mm
-
Grips
- Canyon Lock-On
Seat
-
Saddle
- Fizik Terra Aidon X5
- Gender: Unisex
- Weight: 251 g
-
Seatpost
- Canyon SP0070-01
- Air cartridge. Cable actuated.
- Travel: Dependent on frame size (see component geometry table.)
- Seatpost diameter: 34,9 mm
- Material: Aluminium (AL)
- Weight: 34 g
-
Seat Clamp
- Canyon GP0446-01
Accessories
-
Pedals
- VP-536 f
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Wrench Tool 15mm
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Declaration of confirmity M095
-
Manuals and Accessories
- QSG M095
-
Manuals and Accessories
- Pedelec Manual 005-V04
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Content is loading
Body Height in cm
|
≤ 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|
Seat Height in mm
(a)
|
635 - 785 | 680 - 830 | 710 - 860 | 750 - 900 |
Seat Tube Length in mm
(b)
|
400 | 415 | 445 | 455 |
Top Tube Length in mm
(c)
|
594 | 621 | 648 | 675 |
Head Tube Length in mm
(d)
|
105 | 115 | 125 | 135 |
Head Tube Angle
(e)
|
64° | 64° | 64° | 64° |
Seat Tube Angle
(f)
|
76,5° | 76,5° | 76,5° | 76,5° |
Chainstay Length in mm
(g)
|
440 | 440 | 440 | 440 |
Wheel Base in mm
(h)
|
1.221 | 1.251 | 1.280 | 1.309 |
Stack in mm
(i)
|
620 | 629 | 638 | 647 |
Reach in mm
(j)
|
445 | 470 | 495 | 520 |
Stand-over Height in mm
(k)
|
734 | 739 | 743 | 747 |
Bottom Bracket Offset in mm
(l)
|
31 | 31 | 31 | 31 |
Spacer in mm
|
15 | 15 | 15 | 15 |
---|---|---|---|---|
Stem Length in mm
|
45 | 45 | 45 | 45 |
Handlebar Width in mm
|
760 | 780 | 780 | 780 |
Crank Length in mm
|
170,0 | 170,0 | 170,0 | 170,0 |
Seat Post Diameter in mm
|
34,9 | 34,9 | 34,9 | 34,9 |
Dropper post travel in mm
|
170 | 200 | 200 | 230 |
Seat Post Length in mm
|
457 | 517 | 517 | 587 |
Maximum Seat Post Insertion Depth in mm
|
270 | 300 | 300 | 340 |
Minimum Seat Post Insertion Depth in mm
|
120 | 150 | 150 | 190 |
Wheel Size
|
29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
Disc Size in mm
|
200 / 200 | 200 / 200 | 200 / 200 | 200 / 200 |
Front Fork Travel in mm
|
160 | 160 | 160 | 160 |
Rear Suspension Travel in mm
|
150 | 150 | 150 | 150 |
Battery capacity
|
360 Wh | 360 Wh | 360 Wh | 360 Wh |
Fitting Length
|
210X55 | 210X55 | 210X55 | 210X55 |
Download PDF
Spectral:ONfly CF 8 support
Proposition 65 Warning
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
