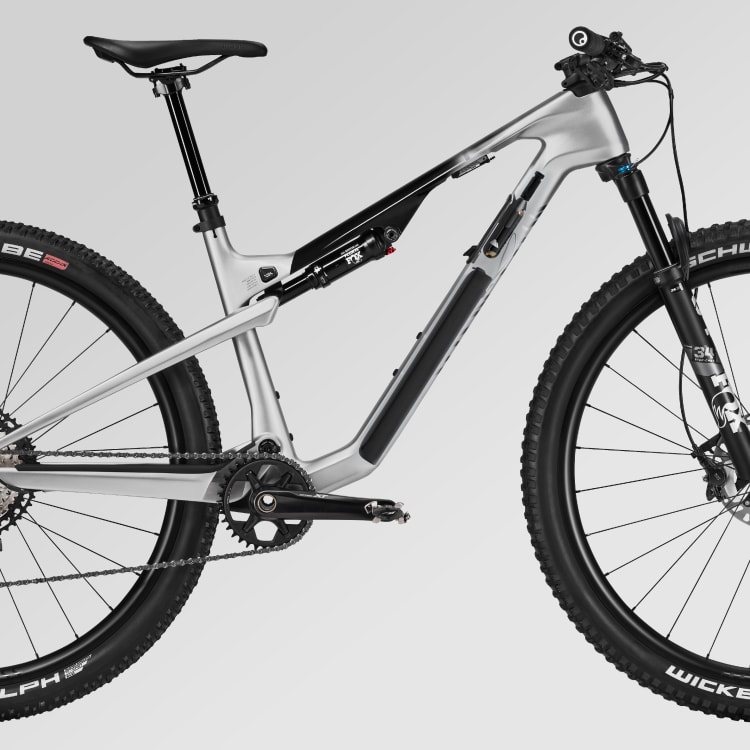

Lux Trail CF 8
- Front Fork Travel: 120 mm
-
Weight:
27.52 lbs
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
-
Financing with PayPalFinancing with Affirm FinancingFinancing available for this product
-
-
Stress free New Bike DayOur most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.
How to choose New Bike DayGet ready-to-ride DeliveryReady to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
That’s our quality promise – if you’re not 100% happy with your bike, we’re not happy either.
-
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Highlights Lux Trail CF 8
Pushing what's possible
Made for doing it all day long

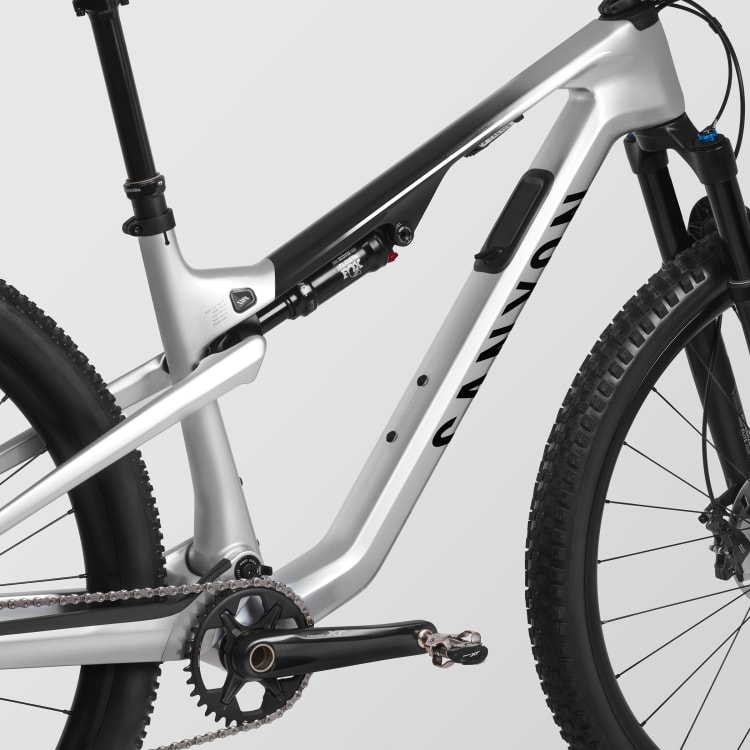

Total control linkage
The right angles

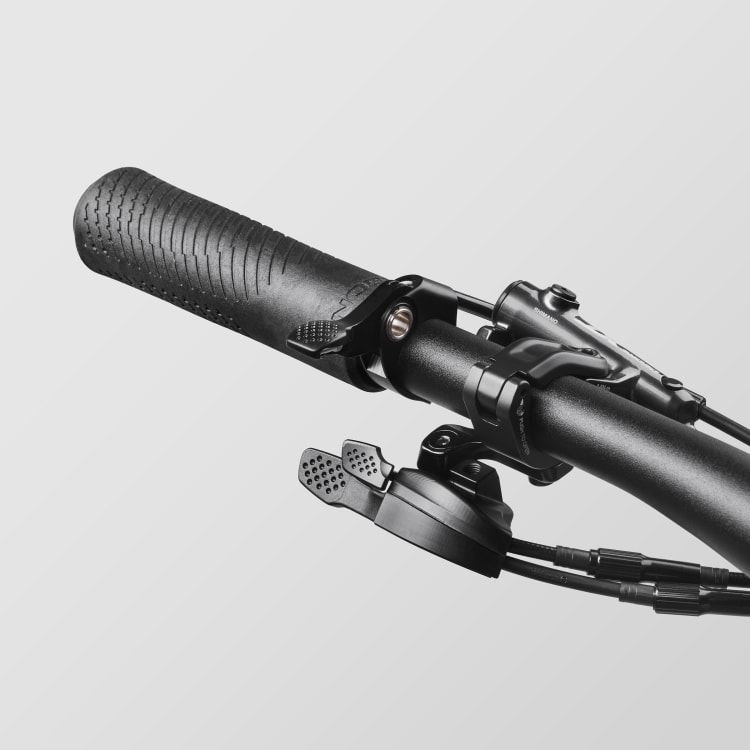

Remote lockout suspension

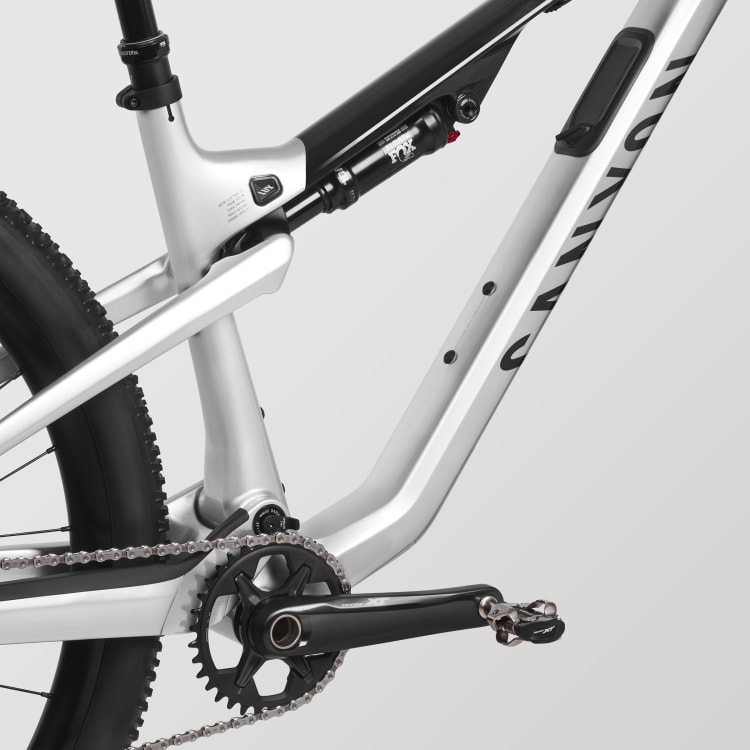

Proper frame protection
Clever storage

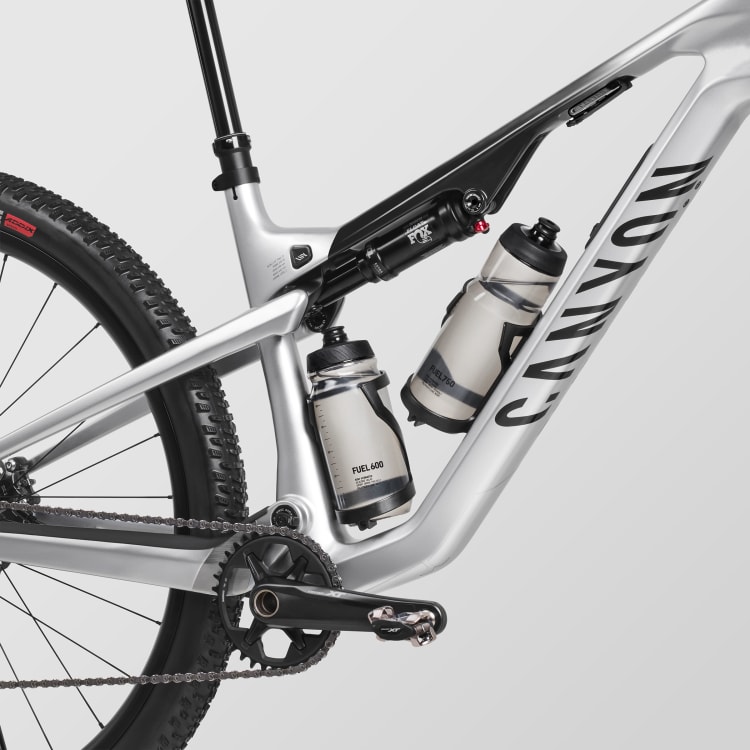

Drink more water
Frame
-
Frame
- Canyon Lux Trail CF
- A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
- Axle dimension: 12x148 mm
- Material: Carbon (CF)
- Weight: 2,060 g
-
Rear Shock
- FOX Float SL Performance Elite Remote
- Weight: 280 g
-

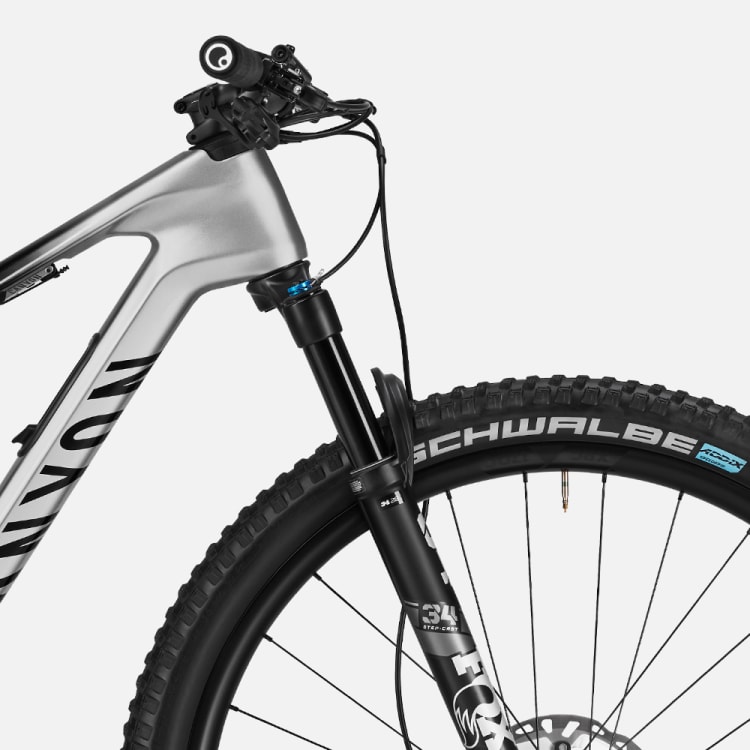

Suspension Fork
- FOX 34 SC Performance Elite
- Axle dimension: 15x110 mm
- Stanchion Diameter: 34 mm
- Travel: 120 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,520 g
Drivetrain
-
Rear Derailleur
- Shimano Deore XT M8100
- Cage length: long
- Weight: 248 g
-
Shift Lever
- Shimano Deore XT SL-M8100
- Weight: 130 g
-
Cassette
- Shimano Deore XT CS-M8100
- Number of sprockets: 12
- Range: 10-51 12S
-
Crank
- Shimano Deore XT FC-M8120
- Number of chainrings: 1
-
Bottom bracket
- Shimano MT800
- Bottom bracket standard: BSA 68/73
- Weight: 100 g
-
Chain
- Shimano XT
Brakes
-
Disc Brake
- Shimano M8110
- Number of pistons: 2
-
Disc Brake
- Shimano Deore XT M8100
- Number of pistons: 2
-
Brake Rotor
- Shimano DEORE XT MT800
- Size: 180 mm
- Weight: 100 g
-
Brake Rotor
- Shimano Deore XT MT800
- Size: 160 mm
- Weight: 123 g
Wheels
-
Front Wheel
- DT Swiss XRC 1700 Spline
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Weight: 791 g
-
Rear Wheel
- DT Swiss XRC 1700 Spline S12
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Weight: 888 g
-
Tyre
- Schwalbe Racing Ralph SG TLE EVO 2.35"
- Width: 2.35"
- Weight: 750 g
-
Tyre
- Schwalbe Wicked Will SR TLE EVO 2.4"
- Width: 2.4"
- Weight: 818 g
Cockpit
-

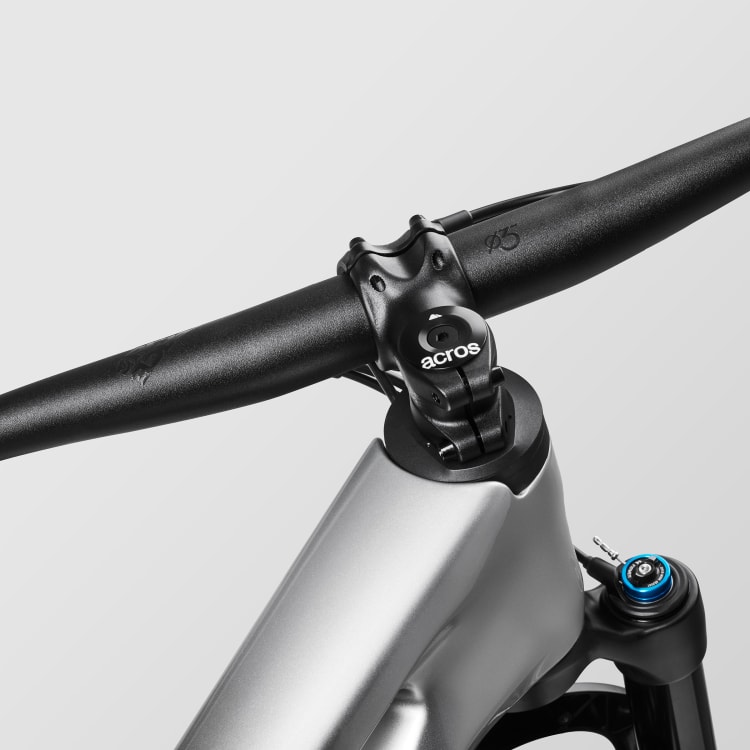

Stem
- RaceFace Ride
- Fork steer tube diameter: 1 1/8"
- Clamping diameter: 35,0 mm
-
Handlebar
- Race Face Ride Riserbar
- Clamping diameter: 35,0 mm
- Width: 760 mm
- Rise: 10 mm
-
Grips
- Ergon GXR
Seat
-
Saddle
- Ergon SM10 Sport
- Gender: Male
- Weight: 305 g
-
Seatpost
- FOX Transfer SL Performance Elite
- Seatpost diameter: 31,6 mm
- Material: Aluminium (AL)
- Weight: 437 g
-
Seat Clamp
- Canyon SC0001
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Smallbox
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Quick Start Guide
-
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Body Height in cm
|
≤ 166 | 166 - 175 | 175 - 183 | 183 - 192 | ≥ 192 |
---|---|---|---|---|---|
Seat Height in mm
(a)
|
618 - 763 | 648 - 843 | 673 - 868 | 703 - 898 | 733 - 928 |
Seat Tube Length in mm
(b)
|
415 | 420 | 420 | 450 | 480 |
Top Tube Length in mm
(c)
|
559 | 585 | 609 | 633 | 656 |
Head Tube Length in mm
(d)
|
90 | 90 | 100 | 115 | 130 |
Head Tube Angle
(e)
|
67° | 67° | 67° | 67° | 67° |
Seat Tube Angle
(f)
|
76° | 76° | 76° | 76° | 76° |
Chainstay Length in mm
(g)
|
435 | 435 | 435 | 435 | 435 |
Wheel Base in mm
(h)
|
1.129 | 1.155 | 1.180 | 1.206 | 1.232 |
Stack in mm
(i)
|
589 | 589 | 598 | 612 | 626 |
Reach in mm
(j)
|
412 | 438 | 460 | 480 | 500 |
Stand-over Height in mm
(k)
|
768 | 768 | 772 | 777 | 783 |
Bottom Bracket Offset in mm
(l)
|
38 | 38 | 38 | 38 | 38 |
Spacer in mm
|
20,0 | 20,0 | 20,0 | 20,0 | 20,0 |
---|---|---|---|---|---|
Stem Length in mm
|
50 | 50 | 50 | 50 | 50 |
Handlebar Width in mm
|
760 | 760 | 760 | 760 | 760 |
Crank Length in mm
|
170,0 | 170,0 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
34 | 34 | 34 | 34 | 34 |
Seat Post Diameter in mm
|
31,6 | 31,6 | 31,6 | 31,6 | 31,6 |
Dropper post travel in mm
|
100 | 125 | 150 | 150 | 150 |
Seat Post Length in mm
|
380 | 455 | 480 | 480 | 480 |
Maximum Seat Post Insertion Depth in mm
|
225 | 275 | 275 | 275 | 275 |
Minimum Seat Post Insertion Depth in mm
|
80 | 80 | 80 | 80 | 80 |
Wheel Size
|
29" | 29" | 29" | 29" | 29" |
Disc Size in mm
|
180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 | 180 / 160 |
Front Fork Travel in mm
|
120 | 120 | 120 | 120 | 120 |
Rear Suspension Travel in mm
|
115 | 115 | 115 | 115 | 115 |
Fitting Length
|
210X50 | 210X50 | 210X50 | 210X50 | 210X50 |
-
2024Bike Of The YearNo other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.Bike Of The YearNo other bike so clearly wins the Bike Of The Year title. Almost every second reader voted for the carbon fully.
Lux Trail CF 8 support
Bike classification
This category also covers the requirements of categories 1-2. In addition it includes use on harsher, unpaved terrain. The scope for these bikes includes occasional jumps up to a maximum height of 60 cm. Jumps of this scale can cause inexperienced riders to have accidents on landing, which can result in injury. Hardtail mountain bikes and full-suspension bikes with short travel are included in this category.
Proposition 65 Warning
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Production Variations
We strive for complete accuracy with our technical specifications. However, specifications are subject to change without notice. Variation between posted information and actual specification does not warrant any changes, modifications, or exchanges to any products affected by a variation. If we may provide further details, please contact our Canyon USA Service Team.
