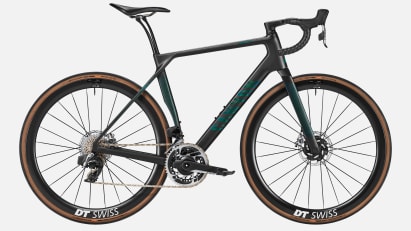

Endurace CFR AXS
- Material: Carbon (CFR)
-
Weight:
16.27 lbs
WeightWeight is based on a size medium frame.
-
-
Members only product. Log in here
Attention: It is not always possible to show all signs of wear. You should expect other scratches, paint damage and/or signs of use. Pricing is adjusted according to the wear class (light, medium or heavy signs of use).
-
Financing with PayPalFinancing with Affirm FinancingFinancing available for this product
-
-
Stress free New Bike DayOur most premium service. Collect your new bike directly from Canyon, fully assembled and set up by a Canyon mechanic. They will answer any questions and ensure you're ready to ride.
How to choose New Bike DayGet ready-to-ride DeliveryReady to ride delivery with velofix DIRECT
With velofix DIRECT, you can schedule delivery directly to your home or office. A professional technician can deliver, build, and dial in your new bike.
Collect & RideNervous about building your new bike? Have your bike sent directly to your local bike shop to be assembled by an expert. Collect your bike at a time that suits you.
How to choose Collect & Ride -
6 Year Warranty on all Canyon-manufactured parts (frame, road bike fork, cockpit, etc.)
Learn More
Highlights Endurace CFR AXS

World Tour speed. Real-world conditions.

The perfect ride
Further Faster from Port to Port
Across the Alps: Innsbruck to Lake Garda
Frame
-
Frame

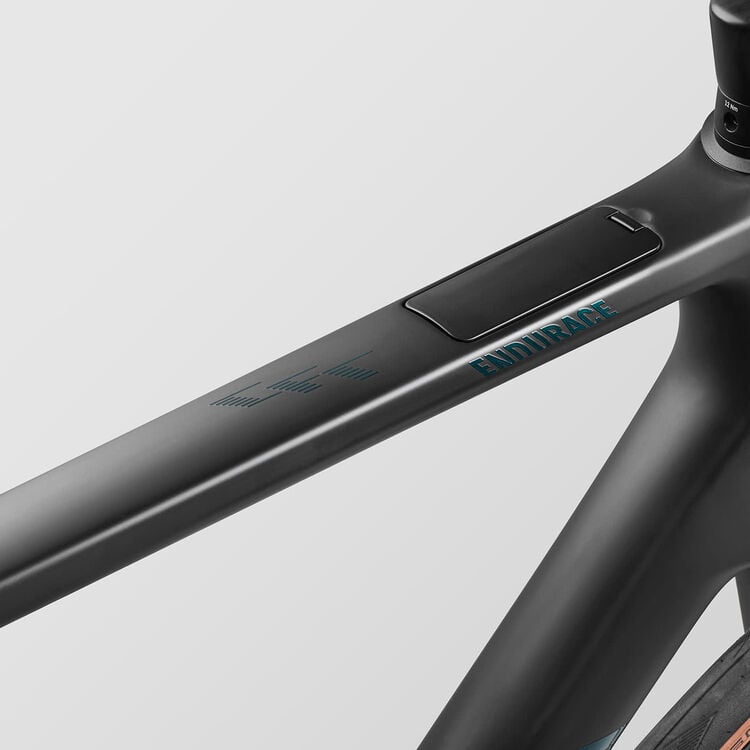

- Canyon Endurace CFR

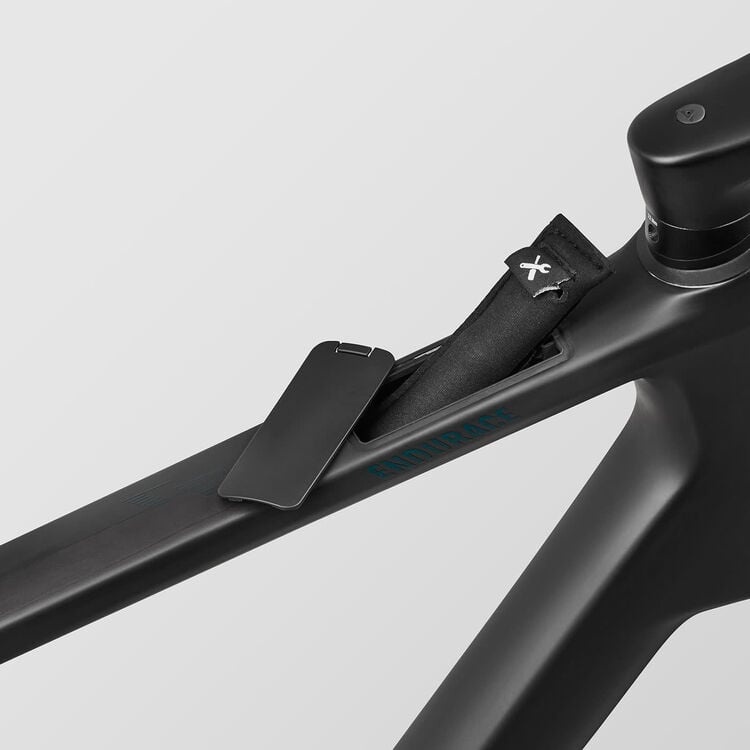

- Canyon’s fastest, lightest endurance road bike, crafted using the highest grades of carbon to deliver class-leading stiffness-to-weight values. With integrated storage solutions and aero-optimised tube forms.
- Axle dimension: 12x142 mm
- Tyre clearance: 35 mm
- Material: Carbon (CFR)
- Weight: 1,123 g
-
Fork
- Canyon FK0128 CF Disc
- Lightweight carbon fork with comfortable, vibration-damping design.
- Axle dimension: 12x100 mm
- Tyre clearance: 35 mm
- Material: Carbon (CF)
- Weight: 980 g
Drivetrain
-
Battery
- SRAM Powerpack
-
Rear Derailleur
- SRAM RED eTap AXS 12s
- Weight: 280 g
-
Front Derailleur
- SRAM RED eTap AXS
- Weight: 170 g
-
Cassette
- SRAM RED XG-1290 10-33 12s
- Number of sprockets: 12
- Range: 10-33
-
Crank
- SRAM RED AXS Powermeter
- Number of chainrings: 2
-
Bottom bracket
- SRAM DUB Pressfit
- Bottom bracket standard: PF 86,5
- Weight: 67 g
-
Chain
- SRAM RED D1 12s
- With signature flat-top design for quieter operation and increased strength and durability. And hard chrome plated inner link plates and rollers for reduced wear.
Brakes
-
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD, 12-speed
- Number of pistons: 2
- Weight: 610 g
-
Shift-/ Brake Lever
- SRAM RED eTap AXS HRD
- Number of pistons: 2
- Weight: 605 g
-
Brake Rotor
- SRAM Centerline X
- Size: 160 mm
- Weight: 130 g
Wheels
-
Front Wheel
- DT Swiss ERC 1100 Dicut
- Axle dimension: 12x100 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Inner width: 22 mm
- Rim material: Carbon
- Weight: 663 g
-
Rear Wheel
- DT Swiss ERC 1100 Dicut
- Axle dimension: 12x142 mm
- Rotor mount: Center Lock
- Rim height: 45 mm
- Weight: 804 g
-
Tyre
- Schwalbe Pro One TLE, 30mm
- Width: 30 mm
- Weight: 335 g
-
Tyre
- Schwalbe Pro One TLE, 32mm
- Width: 32 mm
- Weight: 345 g
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x100 mm
-
Thru Axle
- DT Swiss Through Axle
- Axle dimension: 12x142 mm
Cockpit
-
Cockpit

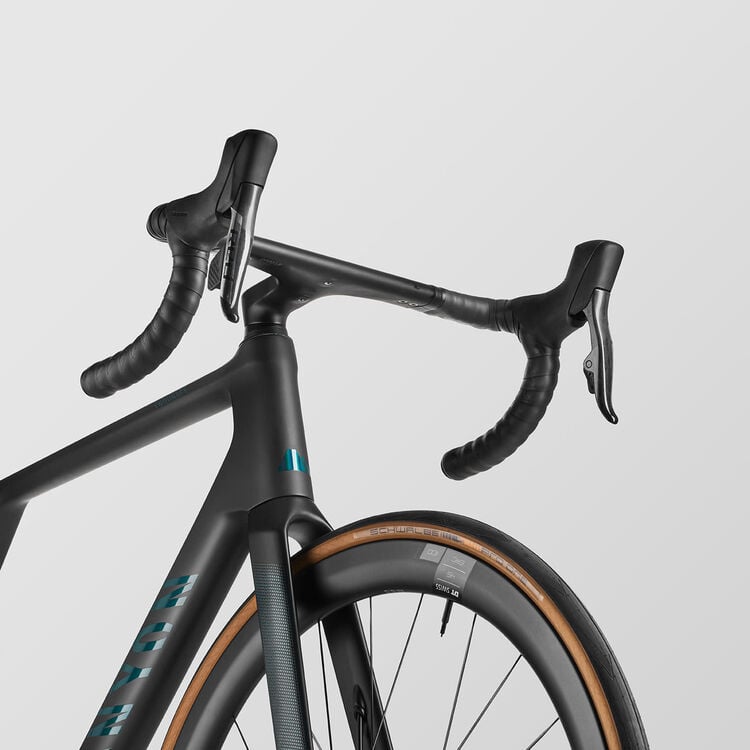

- Canyon CP0018 Aerocockpit
- Aero design, reinforced carbon walls for added stiffness and improved durability.
- Material: Carbon (CF)
- Weight: 195 g
-
Handlebar Tape
- Canyon Ergospeed Gel
- Grippy, durable bar tape with a premium, high-quality, comfortable feel.
- Color: black
Seat
-
Saddle
- Fizik Tempo Aliante R1 145mm
- Gender: Unisex
- Weight: 183 g
-
Seatpost
- Canyon S15 VCLS 2.0 CF
- Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package.
- Material: Carbon
- Setback: 13 mm / 25 mm
- Technology: VCLS 2.0 | Fliphead
- Weight: 220 g
Accessories
-
Pedals
- None included
-
Manuals and Accessories
- Canyon Organza Bag
-
Manuals and Accessories
- Canyon Assembly Paste
-
Manuals and Accessories
- Canyon Torque Wrench
-
Manuals and Accessories
- Canyon Endurace Quick Start Guide
-
Manuals and Accessories
- Canyon starter box
Body Height in cm
|
≤ 159 | 159 - 165 | 165 - 171 | 171 - 178 | 178 - 185 | 185 - 192 | 192 - 198 | ≥ 198 |
---|---|---|---|---|---|---|---|---|
Seat Height in mm
(a)
|
593 - 693 | 623 - 723 | 653 - 753 | 683 - 783 | 713 - 813 | 743 - 843 | 773 - 873 | 803 - 903 |
Seat Tube Length in mm
(b)
|
402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
Top Tube Length in mm
(c)
|
509 | 519 | 540 | 551 | 561 | 576 | 602 | 617 |
Head Tube Length in mm
(d)
|
123 | 138 | 129 | 146 | 165 | 186 | 212 | 232 |
Head Tube Angle
(e)
|
70,3° | 71,5° | 70,8° | 71,8° | 72,75° | 73° | 73,3° | 73,3° |
Seat Tube Angle
(f)
|
73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° | 73,5° |
Chainstay Length in mm
(g)
|
405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
Wheel Base in mm
(h)
|
959 | 958 | 991 | 993 | 993 | 1.006 | 1.029 | 1.044 |
Stack in mm
(i)
|
510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
Reach in mm
(j)
|
350 | 354 | 370 | 375 | 378 | 387 | 405 | 415 |
Stand-over Height in mm
(k)
|
708 | 734 | 763 | 788 | 815 | 840 | 867 | 891 |
Bottom Bracket Offset in mm
(l)
|
60 | 60 | 73 | 73 | 73 | 73 | 73 | 73 |
Stack+ in mm
|
591 | 609 | 630 | 649 | 669 | 691 | 717 | 737 |
Reach+ in mm
|
398 | 412 | 428 | 443 | 453 | 472 | 490 | 510 |
Spacer in mm
|
27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 | 27,5 |
---|---|---|---|---|---|---|---|---|
Cockpit Dimensions in mm
|
70-390 | 80-390 | 80-390 | 90-390 | 100-410 | 110-410 | 110-410 | 120-410 |
Crank Length in mm
|
165,0 | 165,0 | 170,0 | 172,5 | 172,5 | 175,0 | 175,0 | 175,0 |
Chainring Size
|
46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 | 46/33 |
Seat Post Diameter in mm
|
27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 | 27,2 |
Seat Post Length in mm
|
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Maximum Seat Post Insertion Depth in mm
|
207 | 207 | 207 | 207 | 207 | 207 | 207 | 207 |
Minimum Seat Post Insertion Depth in mm
|
107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
Wheel Size
|
27.5" | 27.5" | 28" | 28" | 28" | 28" | 28" | 28" |
Disc Size in mm
|
140 / 140 | 140 / 140 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
Endurace CFR AXS support
Bike classification
Bikes of this category are designed for riding on hard-surface roads where the wheels remain in permanent contact to the ground. These are in general road racing bicycles with racing handlebars or straight handlebars, triathlon or time trial bicycles. The permissible maximum overall weight comprising rider, luggage and bicycle should not exceed 120 kg. Under certain circumstances this permissible maximum weight can be further limited by the component manufacturers’ recommendations for use. Proven cyclocross and gravel bikes with racing handlebars and cantilever or disc brakes are a special case in this category. In addition, these bikes are also suitable for gravel paths and off-road trails where a short loss of tyre contact with the ground due to small stairs or steps at a height of 15 to 20 cm can occur.
